UV Plate Making CTP Machine CTCP Prepress Equipment 2400dpi

1SET
MOQ
Negotiable
Price
UV Plate Making CTP Machine CTCP Prepress Equipment 2400dpi
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: UV Plate Making CTP Machine
Throughput: 16/22/28pph; 1030mm X 800mm / 2400dpi
Plate Sizes: Max.800mm X 660mm; Min. 260mm X 300mm
Media Type: Positive UV-CTP/CTCP Plate Or High Sensitive PS Plate
Plate Thickness: 0.15mm To 0.30mm
Resolution: 2400dpi
Machine Size (WxLxH)mm: 1900x1200x1000
Weight: 900KG
High Light:

CTP UV Plate Making Machine

,

CTP Machine 2400dpi

,

CTCP Prepress Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: Ecoosetter UV-400
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30-45 days
Payment Terms: L/C, T/T
Supply Ability: 1000 SETS/YEAR
Product Description

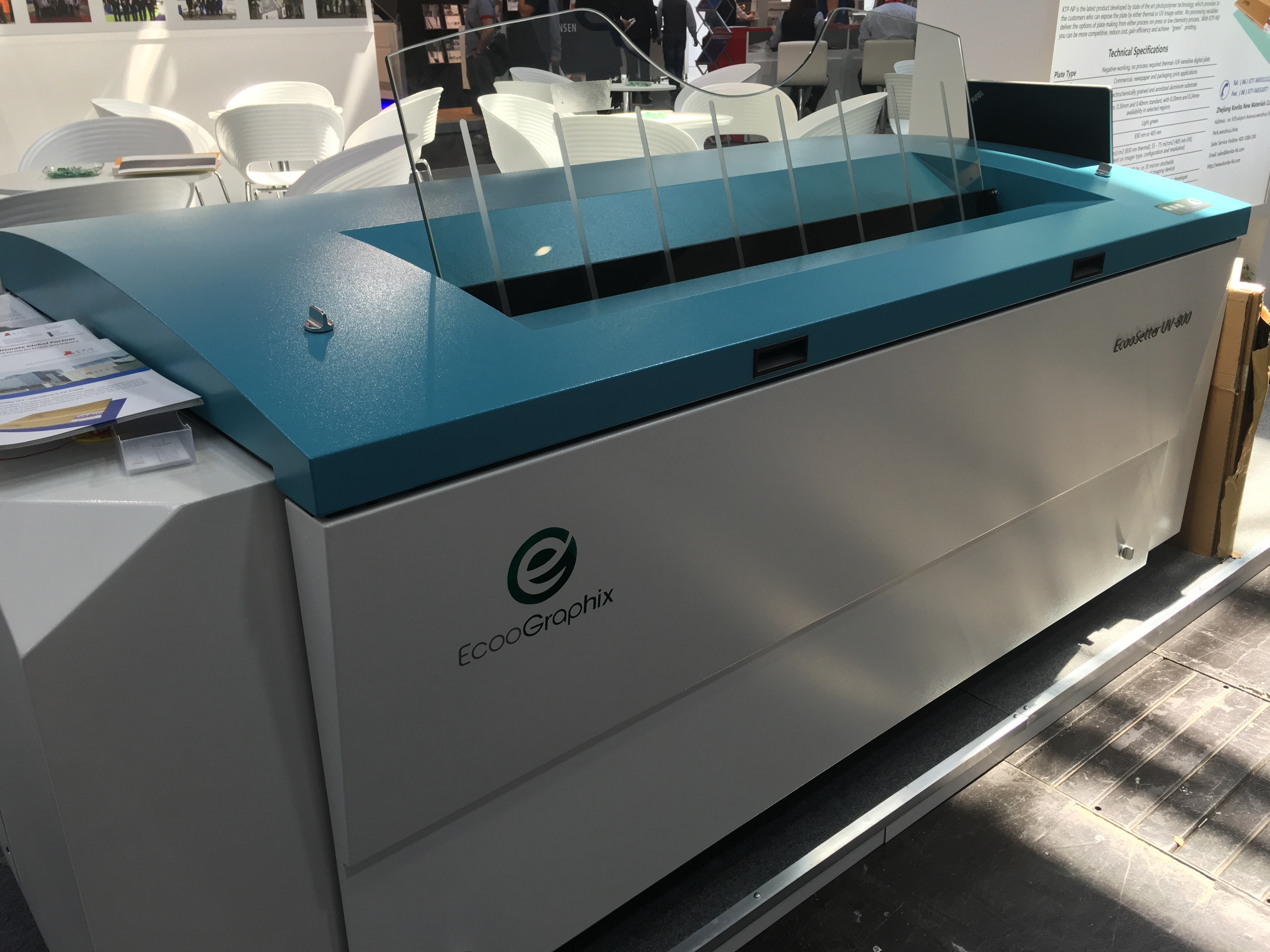

UV Plate Making CTP Machine UV-400S Series



EcooGraphix CTP (Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor. By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.



Specification



EcooGraphix UV Series UV-400 Specifications

Model
UV-400F, UV-400S, UV-400E

Exposing Method
External Drum

Imaging System: 48-channel, 32-channel, 24-channel, Discrete 405nm laser diode

Throughput: 28plates/hour, 22plates/hour, 16plates/hour, 800mm x 660mm, 2400dpi

Plate Sizes
Max. 800mm x 690mm, Min. 400mm x 300mm

Exposing Size
Max. 800mm x 646mm, Min. 260mm x 284mm

Media Type
Positive UV-CTP/CTCP plate or high sensitive PS plate

Plate Thickness
0.15mm to 0.30mm Resolution2400dpi

Repeatability
±5μm(Continuous exposing for 4 times or above on the same platewith a temperature of 23ºC and humidity of 60%)

Interface
USB 2.0 Plate LoadingSemi automatic

Net Weight
800kg Machine Size (WxLxH)mm1900 x 1200 x 1000

Power Supply
Single phase: 220AC, +6%, -10%, Power Consumption: 4KW

Environment
Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%



EcooGraphix UV400 Series Specifications
Model UV-400F UV-400S UV-400E
Imaging System 48 32 24
Output Speed 28 22 16
800mm x 600mm / 2400dpi
Plate Size Max. 800 x 690mm Min. 400mm x 300mm
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Weight 800KG
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size (WxLxH)mm 1900*1200*1000mm(W*D*H)
Power Supply single-phase: 260AC, +6%-10%; Power Conumption: 4KW
Environment recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: 40-70%RH

UV Plate Making CTP Machine CTCP Prepress Equipment 2400dpi 4





Producing and Packing




From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



UV Plate Making CTP Machine CTCP Prepress Equipment 2400dpi 5



UV Plate Making CTP Machine CTCP Prepress Equipment 2400dpi 6



UV Plate Making CTP Machine CTCP Prepress Equipment 2400dpi 7



UV Plate Making CTP Machine CTCP Prepress Equipment 2400dpi 8

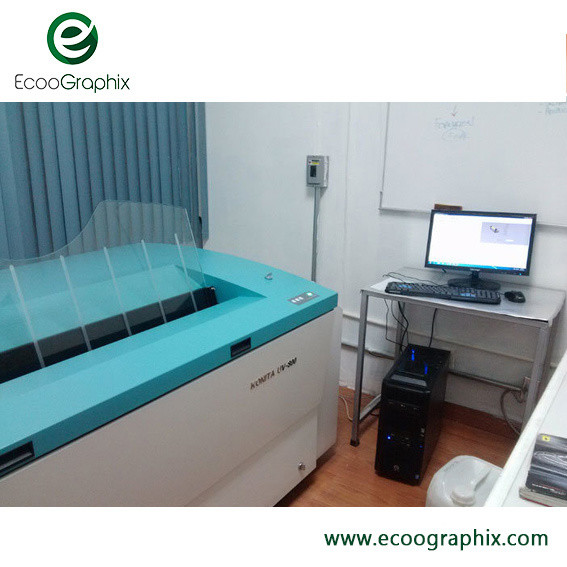

Installation Worldwide




UV Plate Making CTP Machine CTCP Prepress Equipment 2400dpi 9



UV Plate Making CTP Machine CTCP Prepress Equipment 2400dpi 10





FAQ




1.What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on. There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.


2.Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!


3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTP, one year for the processor.

4. What is the lead time?
Usually 20-30 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
