22 Plates/Hour CTP Prepress Printing Platesetter Offset Printing Machine

1SET
MOQ
Negotiable
Price
22 Plates/Hour CTP Prepress Printing Platesetter Offset Printing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Thermal CTP Platesetter
Exposing Method: External Drum
Imaging System: 48CH
Throughout: 22 Plates/Hour
Laser Wavelength: 830nm
Resolutions: 2400dpi
Plate Size: Max: 1130mmx920mm Min: 400x300mm
Plate Thickness: 0.15mm To 0.3mm
High Light:

CTP Printing Platesetter

,

830nm Thermal CTP Platesetter

,

22 Plates/Hour Offset Printing Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: EcooSetter T-800SA
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 500 SETS/YEAR
Product Description

EcooGraphix Thermal CTP T-800SA



Product Description




Model: EcooSetter T-800SA
Laser wavelength: 830nm
Plate: Thermal plate
Exposing Method: External Drum
Imaging System: 48-channel
Throughput: 22 plates per hour, 1030mmx800mm 2400dpi
Plate Size: Max. 1130mmx920mm Min. 400x300mm
Plate Thickness: 0.15mm to 0.3mm
Resolutions: 2,400dpi
Repeatability: ±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface: USB2.0
Weight: 1200KG
Size: 2320×1080×960mm(W×D×H)
Power Supply: single-phase: 220AC+6%,-10%;Power Consumption:4KW
Environment: recommended: 21-25ºC,max.18-26ºC,humidity:40-70%



Major Highlights of EcooGraphix 800 series CTP Machine



1. Superior dot quality reproduction proven by worldwide market:

1%-99% dot reproductionUp to 250lpi screening ,2400 dpi or 1200dpi optional





2. Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany



3. Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)



4. Long warranty of the machine:

3 years warranty (free replacement of all parts)

Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.



5. Guaranteed Service:

installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved.

Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.



6. Proven Worldwide market leader: (Some highlights installations)

Over 6000 units installed worldwide over past 10 years

USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.

Turkey: 35 units installed in Turkey by Esen Graphics

Installations in other countries UK,Italy,Spain,Hungary,Russia,Mexico,Brazil,Colombia,Ecuador,South Africa,Nigeria and etc



Specification






ECOO T-800A Series Thermal CTP Specifications
Model T-800XA T-800FA T-800SA T-800EA
Imaging System 256 64 48 32
Output Speed 40 28 22 16
1030mm x 800mm / 2400dpi
Plate Size Max.1163 x 940mm Min. 400mm x 300mm
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Weight 1200KG
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size (WxLxH)mm 2127*1610*1058mm (W*D*H)
Power Supply Single phase:220AC +6%, -10%, Power Consumption: 4KW
Environment Recommended temprature: 21-25ºC Max: 15-30ºC Humidity: 40%-70%
22 Plates/Hour CTP Prepress Printing Platesetter Offset Printing Machine 4
22 Plates/Hour CTP Prepress Printing Platesetter Offset Printing Machine 5

22 Plates/Hour CTP Prepress Printing Platesetter Offset Printing Machine 6



Producing and Packing




                                  From producing to delivery,we make every details very carefully to guarantee the good product quality and service to customers.



22 Plates/Hour CTP Prepress Printing Platesetter Offset Printing Machine 7



22 Plates/Hour CTP Prepress Printing Platesetter Offset Printing Machine 8



22 Plates/Hour CTP Prepress Printing Platesetter Offset Printing Machine 9

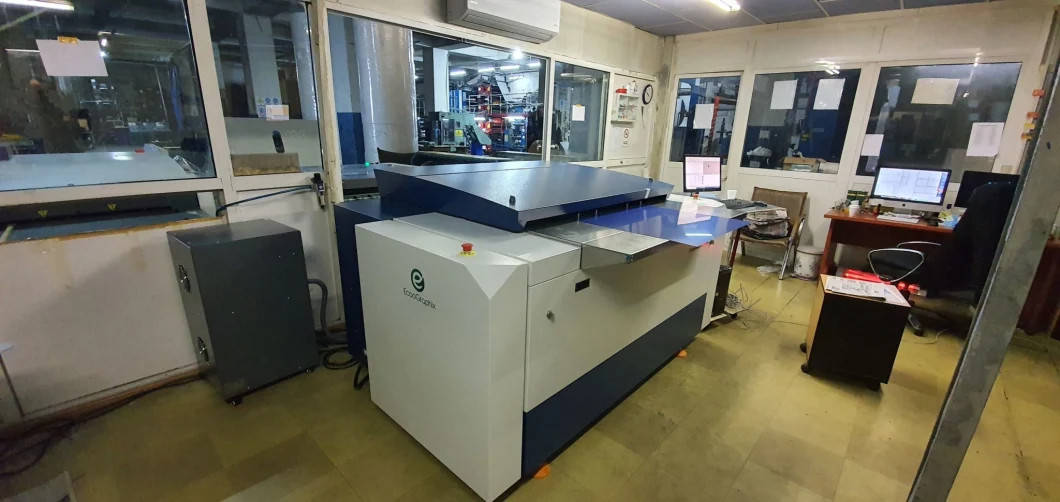

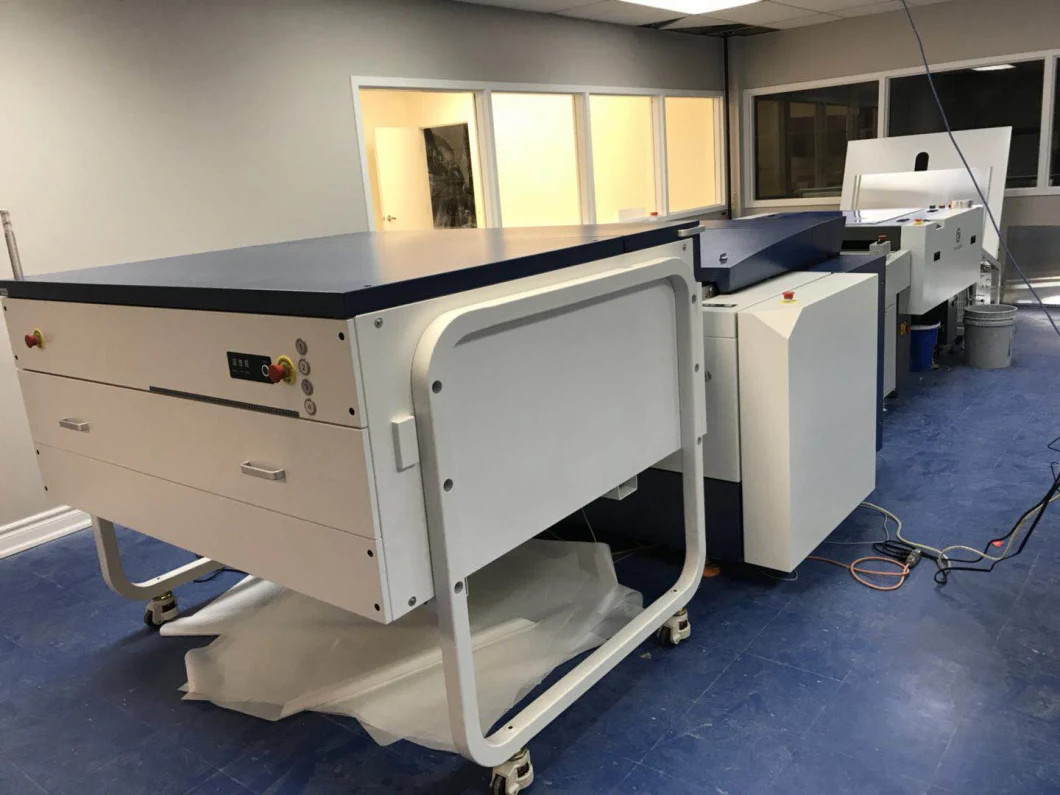

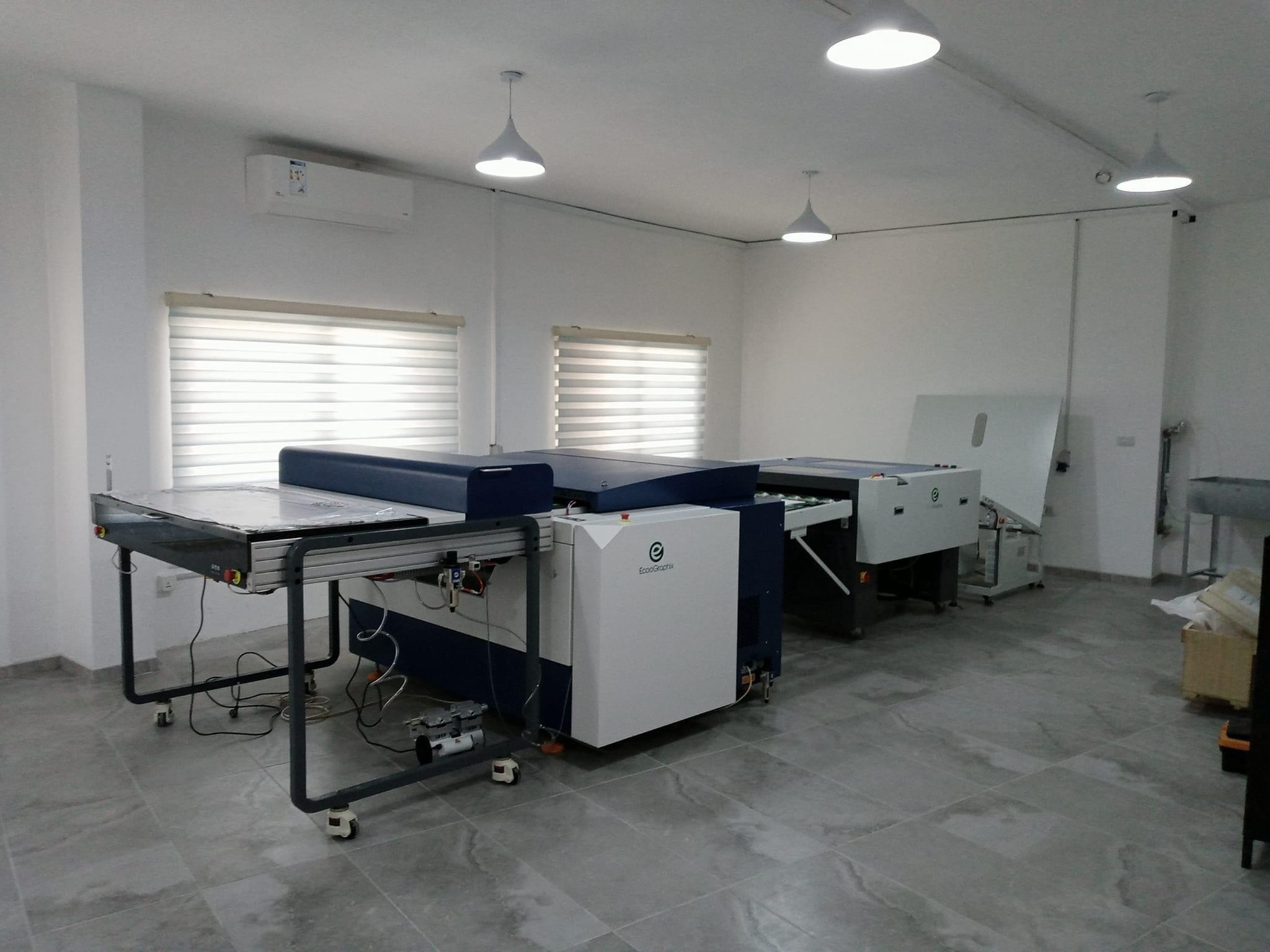

Installation Worldwide




22 Plates/Hour CTP Prepress Printing Platesetter Offset Printing Machine 10



22 Plates/Hour CTP Prepress Printing Platesetter Offset Printing Machine 11



22 Plates/Hour CTP Prepress Printing Platesetter Offset Printing Machine 12



About us



EcooGraphix is a leading worldwide prepress and graphics arts supply provider. With our main office in China and top quality factories mostly based in China. We provide top quality as well as cost competitive products including CTP/CTCP equipments, CTP/CTCP plates, and some other graphics arts supply. Furthermore, we treat quality service as our top priority to ensure evey single customer operates seamlessly. We are by far one of largest and top quality and service provide for CTP equipments, plates and service from China. With hundreds of EcooGraphix CTP installations across USA, Canada, Mexico, South America, UK, Europe, Middle East, Turkey and etcs, we have gained a very fine international reputation in the industry.




FAQ




1. What are your main products?
EcooGraphix is a leading and professional supplier for the Offset Prepress solution, and can also supply the Printing Materials and Postpress Packing Equipment with reliable quality and good price.
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates, Offset Printing inks, Printing blankets, postpress packing equipments and so on.

2. Where is your factory?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai. You are warmly welcomed to visit our factory!

3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.
If the customer uses Ecoographix CTP plate with the CTP machine, we will provide the Lifetime Warranty and technical support!

4. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V12.

6. What about the Installation and after-sales technical support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.

hould take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
