8000 Cycles/H Automatic Gathering Machine Book Binder 21 Hole
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic Gathering Machine
Classification Of Wire Binding Machine: 21 Hole
No. Of Stations: 8-24
Sheet Size (a): 196-460 Mm
Sheet Size (B): 135-280 Mm
Off-Line Speed: Max. 4800 Cycles/H
In-Line Speed: Max. 8000 Cycles/H
Power Required: 7.5-16.3 KW
Machine Weight:: 3000-5000kg
High Light:

7.5 KW Book Binder

,

8000 Cycles/H Automatic Gathering Machine

,

Automatic Gathering Book Binding Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: G460B
Payment & Shipping Terms
Packaging Details: Standard Exporting Package: Polywood Carton
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description

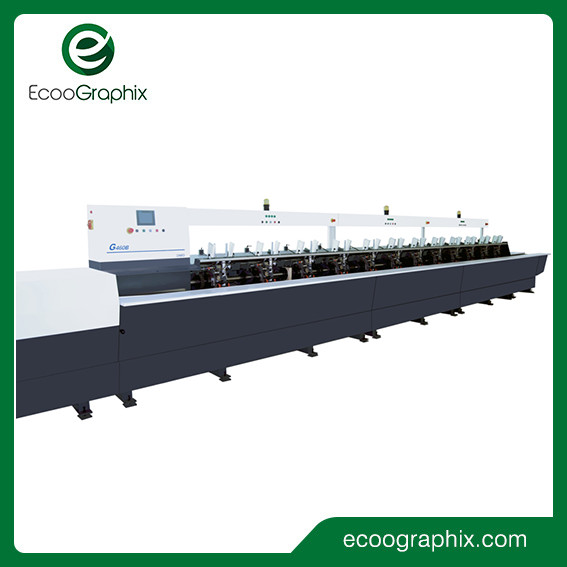

EcooGraphix Automatic Gathering Machine Book Binder





G460B automatic binding machine ensures high net output. The gripper system and the vertical transport of signatures are combined in this machine with modern electronics and latest design. It can be used either as a stand-alone machine or connected in-line with Challenger-5000 Perfect Binder.






Features
Reliable and non-marking separating of sections thanks to the vertical gathering design.
Touch screen allows easy operation and convenient fault analysis.
Comprehensive inspection system for miss-sheet, double-sheet and paper jams.
Easy changeover between 1:1 and 1:2 production modes brings high flexibility.
Criss-cross delivery unit and hand feeding station are offered as standard features.
Reject gate for wrong signatures ensures non-stop production.
Excellent quality control is enabled by the optional signature recognition system.

8000 Cycles/H Automatic Gathering Machine Book Binder 21 Hole 0

Specification



Model G460B/8 G460B/12 G460B/16 G460B/20 G460B/24
No. of Stations 8 12 16 20 24
Sheet Size (a) 196-460 mm
Sheet Size (b) 135-280 mm
In-line Speed Max. 8000 cycles/h
Off-line Speed Max. 4800 cycles/h
Power Required 7.5 kw 9.7 kw 11.9 kw 14.1 kw 16.3 kw
Machine Weight 3000 kg 3500 kg 4000 kg 4500 kg 5000 kg
Length of Machine 10736 mm 13022 mm 15308 mm 17549 mm 19886 kg



8000 Cycles/H Automatic Gathering Machine Book Binder 21 Hole 1



Machine Spare Parts




Touch Screen Control System

The touch screen control system allows easy operation and convenient fault analysis.



8000 Cycles/H Automatic Gathering Machine Book Binder 21 Hole 2



Vertical Gathering Stations

4 station as 1 unit, and maximally up to 32 stations. Auto signature inspection system on each station to detect miss-sheet, multi-sheet, and paper jams.



8000 Cycles/H Automatic Gathering Machine Book Binder 21 Hole 3



Vertical Gathering Stations

4 station as 1 unit, and maximally up to 32 stations. Auto signature inspection system on each station to detect miss-sheet, multi-sheet, and paper jams.



8000 Cycles/H Automatic Gathering Machine Book Binder 21 Hole 4



Vertical Gathering Stations

4 station as 1 unit, and maximally up to 32 stations. Auto signature inspection system on each station to detect miss-sheet, multi-sheet, and paper jams.



8000 Cycles/H Automatic Gathering Machine Book Binder 21 Hole 5



Vertical Gathering Stations

4 station as 1 unit, and maximally up to 32 stations. Auto signature inspection system on each station to detect miss-sheet, multi-sheet, and paper jams.



8000 Cycles/H Automatic Gathering Machine Book Binder 21 Hole 6



Hand Feeding Station

Hand feeding station is provided for convenient feeding of additional signatures.



8000 Cycles/H Automatic Gathering Machine Book Binder 21 Hole 7



More Details




8000 Cycles/H Automatic Gathering Machine Book Binder 21 Hole 8



8000 Cycles/H Automatic Gathering Machine Book Binder 21 Hole 9
