Automatic Large Format Foil Stamping Die Cutting Machine 7000sheets Per Hour
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic Foil Stamping And Die-Cutting Machine
Warranty: 1 Year Warranty Including Spare Parts
Imprinting Type: Flatbed Printer
Suitable Material: Paper
Application: Business Card, Plastic Flexible Packaging, Labels And Tags
Usage: Label Printer, Paper Printer
Hot Stamping Pressure Factor: Hot Stamping Temperature
Maximum Sheet: 1060X760mm
Minimum Sheet Size: 430X350mm
Max. Die Cutting Size(mm): 1060X746mm
Height Of Cutting Rules(mm): 23.8mm
Max. Machine Speed: 7000S/H
Max. Stamping Speed: 7000S/H
High Light:

7000sheets Per Hour Die Cutting Machine

,

Foil Stamping And Die Cutting Machine

,

Automatic Large Format Foil Stamping Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-DDS106
Payment & Shipping Terms
Packaging Details: Standard Exporting Package: Polywood Carton
Payment Terms: L/C, T/T
Supply Ability: 500sets/Year
Product Description

 Automatic Foil Stamping And Die-Cutting Machine






DDS106 automatic hot stamping foil die cutting machines can work on hologram stamping and other special stamping, the customers who want the high end product with good stamping result choose this model.

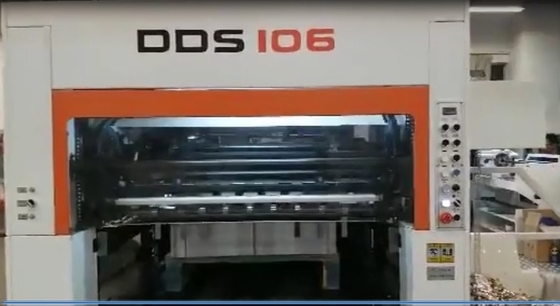

Automatic Large Format Foil Stamping Die Cutting Machine 7000sheets Per Hour 0

Specification



Model ECOO-DDS106
Max. Sheet Size(mm) 1060x760
Min. Sheet Size(mm) 430x350
Max. die cutting size(mm) 1060x746
Max. stamping size(mm) 1020x660
Height of cutting rules(mm) 23.8
Max. pressure(N) 250x10
Stock range Min. Sheet 175g/m²; Cardboard 157-2000g/m²; E, B flute
Min. gripper margin(mm) 9
Max. machine speed(s/h) 7000
Max. stamping speed(s/h) 7000
Longitudinal feeding shafts 4 (Optional 6)
Transversal feeding shafts 2
Feeding pile height(mm) 1400
Delivery pile height(mm) 1100
Electric heating system 12 zones
Min. foil width(mm) 20
Foil reel core(mm) 25(1") 76(3")
Rated power(kw) 50
Air supply 0.8-1.0 MPa, 0.6m/min
Overall dimension(mm) 5850x4600x2280
Weight of machine(kg) 20000





Machine Spare Parts List




Feeder:

Conjugate cam mechanism for sheets feeding
Adjustable suckers head angles to handle different kinds of materials
Non stop sheet loading
Automatic feeding table up and down
Manual adjust on front registration synchronized with auto running

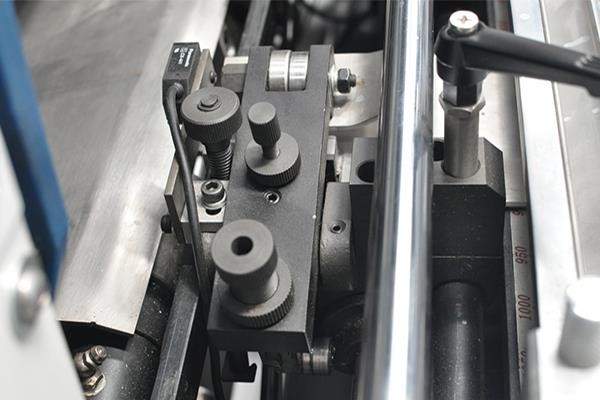

Micro adjustable side lays with pull/push in one
Side lays with photoelectric detection
4 independent front lays with photoelectric detection
Accurate reposition of the distance between the platens, less than 0.01mm
Digital pressure display
Center line system
7 specially hardened alloy gripper bars, each bar is adjustable to secure accuracy
Tri-point gripper bar registration provides high accuracy in round registrations
Pretensioned main chain with lower extension
Cam mechanism for gripper bar drive assures smooth and accuracy running
Torque clutch protects index box from concussion on gripper bar
Cam mechanism for gripper finger control assures precise sheet registration
Specially designed dwell function for stamping
Automatic and timing lubrication



Packaging & Shipping

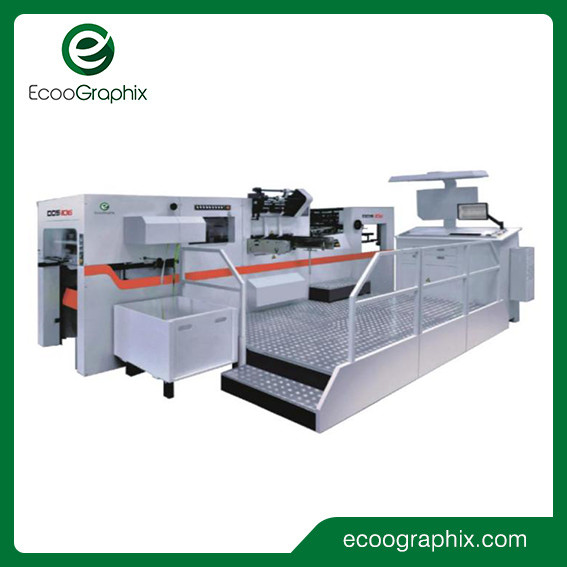

Automatic Large Format Foil Stamping Die Cutting Machine 7000sheets Per Hour 1



Automatic Large Format Foil Stamping Die Cutting Machine 7000sheets Per Hour 2

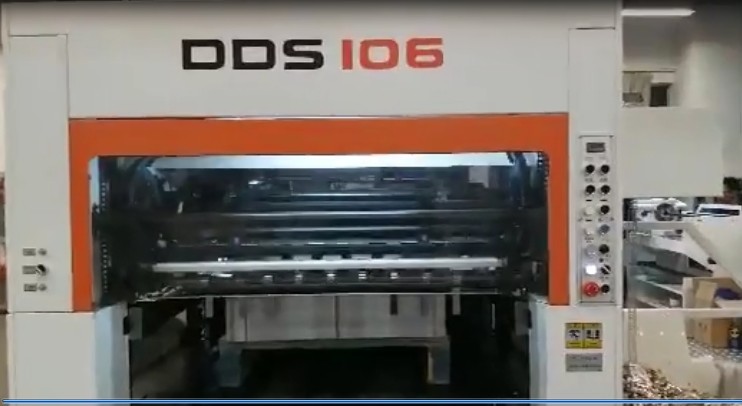

Automatic Large Format Foil Stamping Die Cutting Machine 7000sheets Per Hour 3



Automatic Large Format Foil Stamping Die Cutting Machine 7000sheets Per Hour 4



Automatic Large Format Foil Stamping Die Cutting Machine 7000sheets Per Hour 5





More Details




Automatic Large Format Foil Stamping Die Cutting Machine 7000sheets Per Hour 6



Automatic Large Format Foil Stamping Die Cutting Machine 7000sheets Per Hour 7



These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
