Automatic Cold Foil Stamping And Varnishing Digital Label Enhancer

1 SET
MOQ
Negotiable
Price
Automatic Cold Foil Stamping And Varnishing Digital Label Enhancer
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Digital Label Enhancer
Printing Technology: UV Piezo Dod(Drop On Demand)-Inkjet
Resolution: 360*360 Dpi, Up To 1440*360 Dpi
Variable Image System: Pdf, Optimized Pdf, Optional Barcode System
Substrates: Offset, Digital, Plastics, Laminated And Etc.
Printing Image Width: 288mm (Extendable To 330 Mm)
Polymer Layer Thickness: From 10 Up To 250 Microns
Substrates Thickness: 30-400 Micro
Substrates Width: Max 330mm
Highlight:

Digital Flatbed UV Printer

,

All Steel Frame Digital Inkjet Printer

,

7 sqm/Hour Digital Flatbed UV Printer

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: EcooSpark
Payment & Shipping Terms
Packaging Details: Standard Exporting Packaging
Payment Terms: L/C, T/T
Supply Ability: 200 Sets Per Year
Product Description



Automatic Cold Foil Stamping and Varnishing Digital Label Enhancer

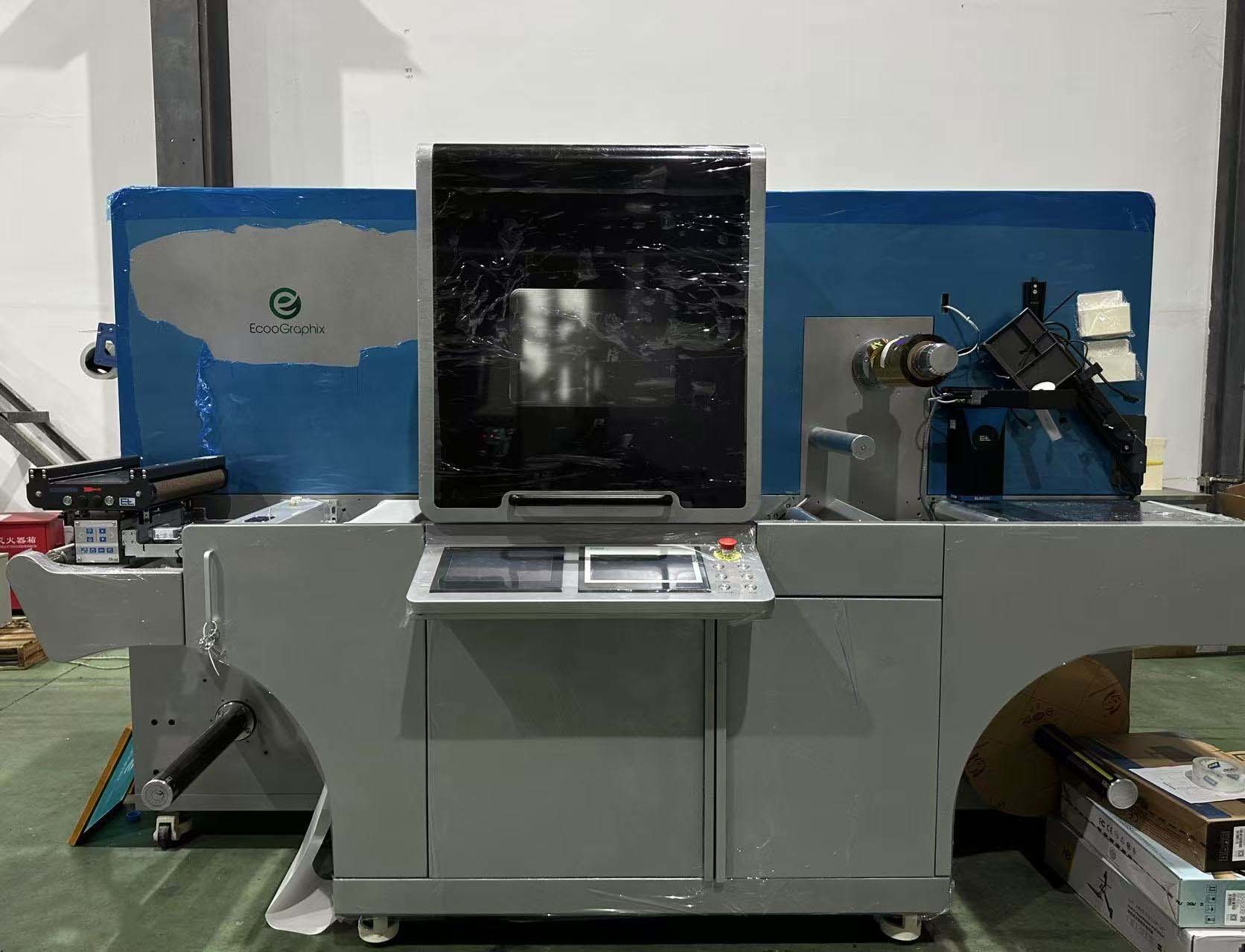

Automatic Cold Foil Stamping And Varnishing Digital Label Enhancer 0

                                         Model: EcooSpark







Product Description:

EcooGraphix's newly developed EcooSpark digital printing machine realizes digital synergistic processes such as digital varnish, 3D crystal bright, partial glazing, cold stamping, embossing, etc., without the need for plate making. It can reduce costs and instantly realize unique visual effects of printing. This is a digital post-press equipment that creates new profit points for users, and is a digital efficiency-enhancing printing machine.







Specification:

Model EcooSpark
Printing Technology UV Piezo DoD(drop on demand)-inkjet
Resolution 360*360 dpi, up to 1440*360 dpi
Printing speed 6m/min - 50m/min(depend on polymer layer thickness)
Variable Image system PDF, optimized PDF, Optional barcode system
Supported image standards PDF,PDF/VT,TIFF, JPEG, BMP & other data base files
Substrates Offset, Digital, Plastics, Laminated and coated substrates
Printing image width 288mm (extendable to 330 mm)
Polymer WB-DS-Clear Polymer
Polymer layer thickness From 10 up to 250 microns
Ink curing Inter UV-LED Pre-curing/Full curing by UV-LED
Unwinder diameter Max. 700mm, Core 76mm
Rewinder diameter Max. 700mm, Core 76mm
Substrates thickness 30-400 micro
Substrates width Max 330mm
Press with Foil station Machine dimensions (LxHxW) 3500mmx1900mmx1800mm
Operating environment Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity
Electrical requirements Voltage: 3x380, ±5% 3 phases +G+N
Frequency: 50/60 Hz Current: Avg. 58.6 Amps 23KW
Weight 2800kg







Features:
Sturdy structure (double wall panel design)
Thick and thin materials, stability, mature platform
High stability

Good material applicability

No heating required
LED UV+water cooling roller
Suitable for ordinary cold foil
High quality-details, sharp edges:
Less heat, higher stability
Patented technology-better detail performance
Multi-process completed at one time
Customizable



Automatic Cold Foil Stamping And Varnishing Digital Label Enhancer 1

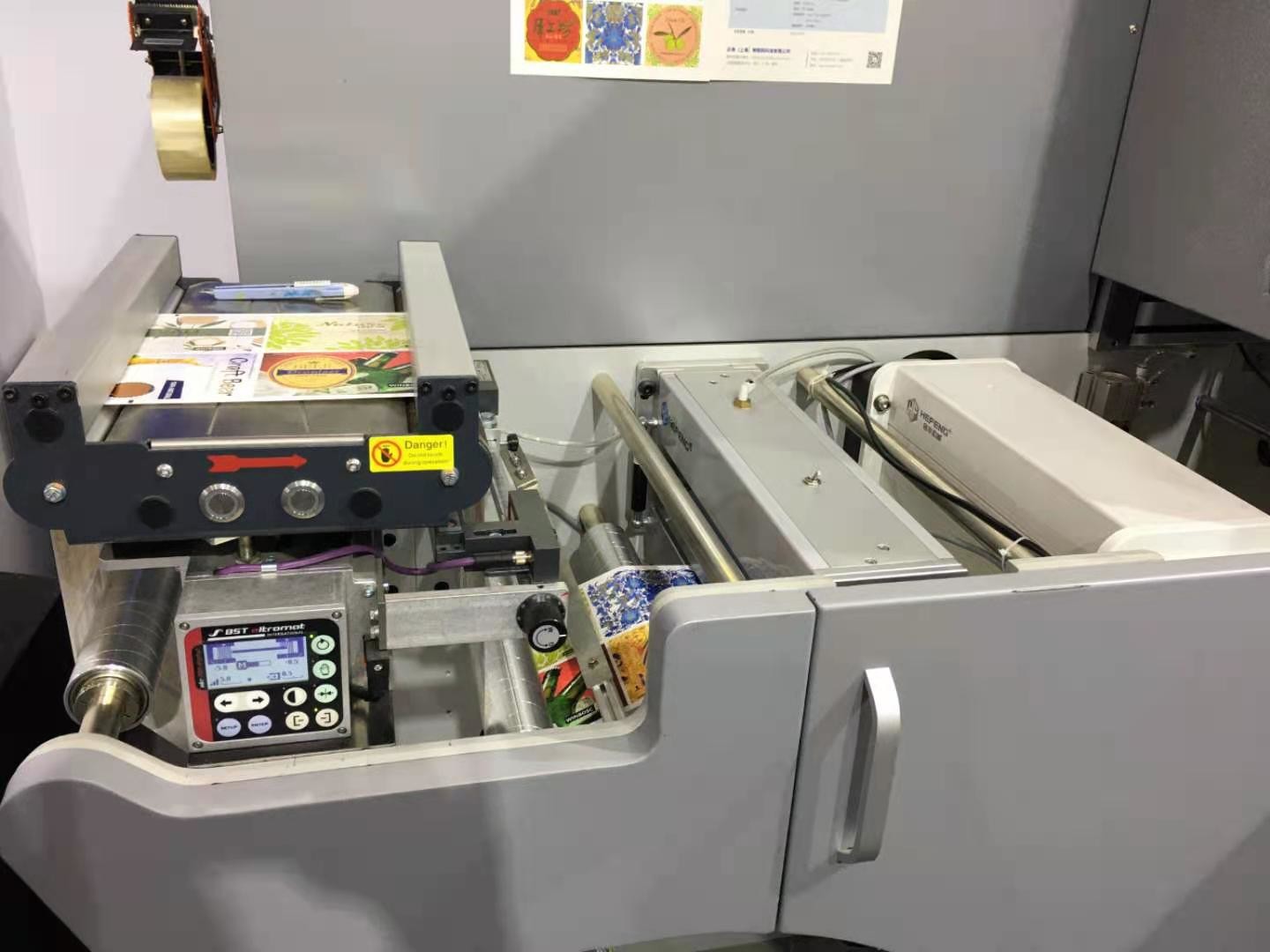

Automatic Cold Foil Stamping And Varnishing Digital Label Enhancer 2



Automatic Cold Foil Stamping And Varnishing Digital Label Enhancer 3
