Two Station All-In-One Digital Label Finisher Die Cutting Machine

1SET
MOQ
Negotiable
Price

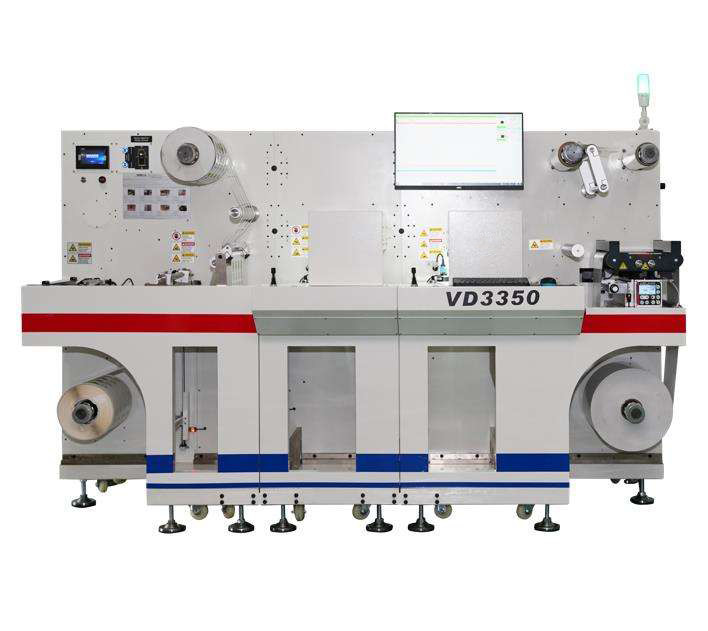

Two Station All-In-One Digital Label Finisher Die Cutting Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Digital Label Finisher Die Cutting Machine
Max.Label Width: 330mm
Cutting Media Width: 40-350mm
Max. Media Roller: Diameter 450mm
Cutting Speed: Max.18m Per Minute; Depend On Label Shape And Size
Cutting Blades: (Standard) 2 Stations, 4PCS(6PCS) Per Station
Power: 110-127VAC 50-60Hz
Highlight:

Foil Stamping Die Cutting Machine 1200mm/S

,

Corrugated Board Digital Cutter

,

Package Intelligent Digital Cutter

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-VD3350
Payment & Shipping Terms
Packaging Details: Standard Exporting Package
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description



All-In-One Digital Label Finisher Die Cutting Machine



Two Station All-In-One Digital Label Finisher Die Cutting Machine 0

The VD3350 high-speed digital label machine, which incorporates more A intelligent elements, adopts a unit design and can install up to 3 working units. Unique intelligent digital die-cutting software that automatically recognizes and extracts cutting files, and automatically adjusts tool spacing. Use a four blade * 3 unit to work on different labels simultaneously. With the latest intelligent software from Worry, automated die-cutting runs through the entire workflow, making equipment operation easier than ever, greatly improving work efficiency while reducing manual intervention.







Specification






Model Ecoo-VD3350
Max. media roller diameter 450mm
Cutting media width 40-350mm
Max.label width 330mm
Min.label length 10mm
Max.label length 600mm
Cutting speed Max.18m per minute (depend on label shape and size)
Cutting blades (standard) 2 stations, 4pcs/station
Slitting blades (standard 4 pcs ) max.15pcs

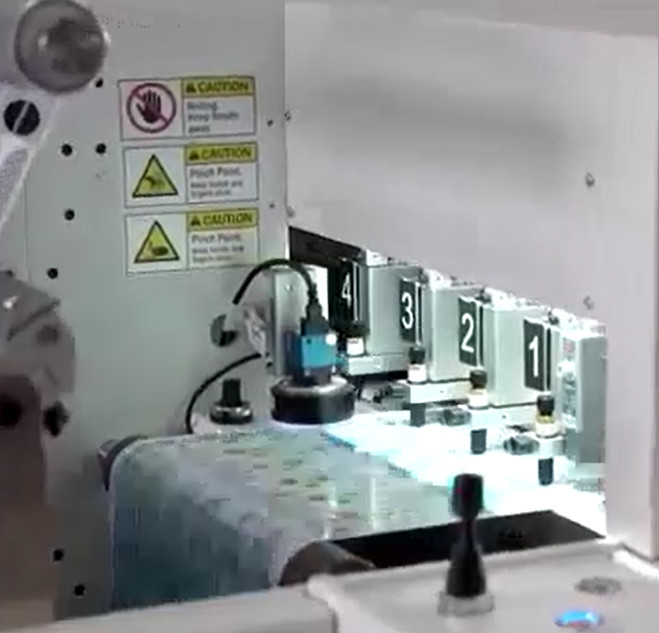

Cutting tracking CCD camera
Die-cutting technology with tungsten steel rotary blades
Cutting precision 0.1mm (duplicate)
Slitting speed Max. 100m per minute
Slitting width 10-330mm
Slitting precision 0.1mm
Machine size (W*D*H) 2750*1380*1910mm
Machine weight 1675KGS
Power 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS
Warranty 1year (besides high consumable parts)
Options Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter











Advantage




1. Fast and high precision with full-servo motor
2. Fully automatic tension and feeding control
3. Intelligent position, choose file automatically
4. Standard 4 cutting heads distance can be adjusted automatically
5. Support 3 units cutting simultaneously
6. Intelligent cutting with trajectory optimization

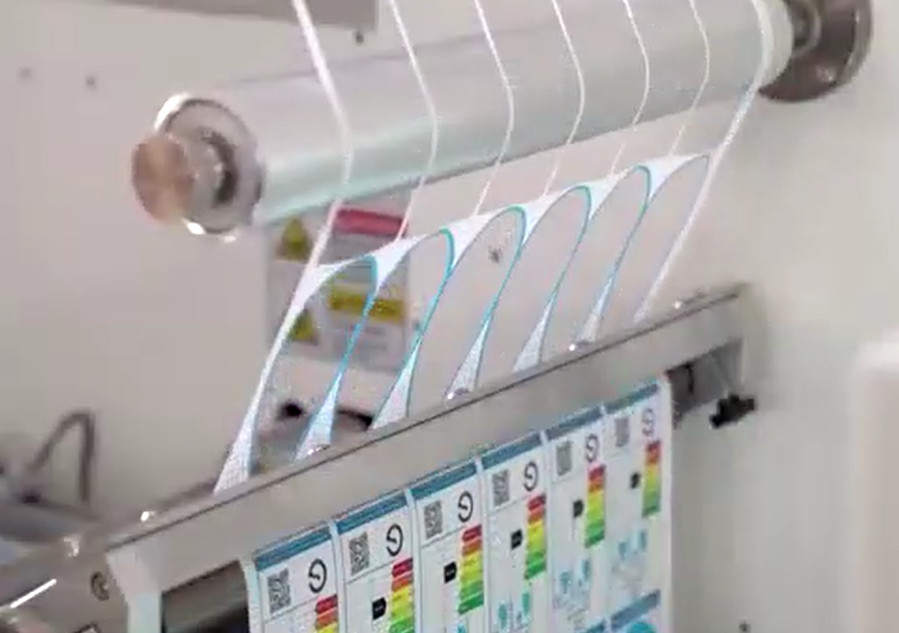

Two Station All-In-One Digital Label Finisher Die Cutting Machine 1



Two Station All-In-One Digital Label Finisher Die Cutting Machine 2



Two Station All-In-One Digital Label Finisher Die Cutting Machine 3
