Auto Calculate Label Printing Machine 320mm Media Width

1 SET
MOQ
Negotiable
Price

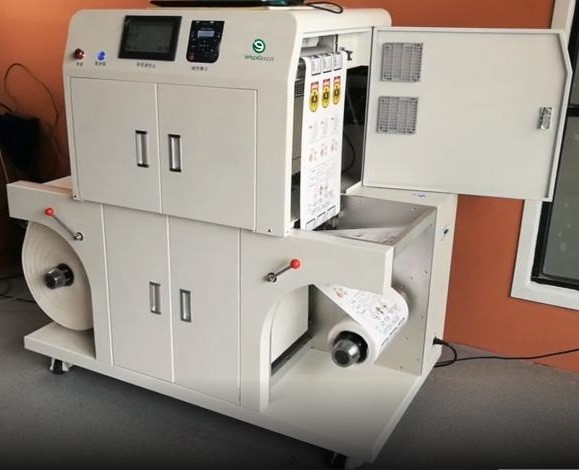

Auto Calculate Label Printing Machine 320mm Media Width
Features Gallery Product Description Request A Quote
Features
Specifications
Print Speed: Up To 7.26 Meters/Min (30FT/Min)
Print Quality: 1200X2400dpi
Preparing Time: Less Than 28s
Printer Processor: 533MHz
Media Width: 320mm
Print Width: Min 210mm, Max 308mm
Print Length: Min 98mm, Max 1200mm
Print Technology: 4 Color (Cmyk) LED Technology
High Light:

320mm Label Printing Machine

,

Auto Calculate Label Printing Machine

,

1200x2400dpi Label Printer Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: Ecoo LL320
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description



 4 Color LED Technology Digital Label Printing Machine




With the development of society and people's pursuit of product diversification, more and more products need to be labeled and customized.
Label printing company and some enterprises need digital label printers to save printing costs and time costs.
Digital Label Printer meets the different needs of various customers with suitable printing costs and lower product prices.











MODEL: Ecoo LL320





In order to get a high quality printing, we researched and developed typical and easy a printer software for LL320. This software has friendly interface, and easy to understand. Automatically edit jobs together, integrated with programmatic printing. PhaserMatch 5 color management system was nested to printing software. You can get best image label and finish the jobs easily.

It running must be with connecting machine

Easy user operation interface and media management system
Rotate, zoom, minor and nest your labels and jobs freely
Calculate the toner using volume, label cost and job cost
Color management with RIP
Second track printing
Cycling printing for many pages in job










Digital Label Printing Machine
Model Ecoo LL320
Print speed Up to 7.26 meters/min (30ft/min)
Print technology 4 Color (CMYK) LED technology
Preparing time Less than 28s
Printer processor 533MHz
Data port (Standard)10BASE-T/100BASE-TX, USB2.0; (Options) internet 1000BASE-T, IEEE1284-B
Media width 320mm
Print width Min 210mm, Max 308mm
Print length Max 1200mm, Min 98mm
Substrate types Paper: Paper, High glossy paper, Matt paper; Film: PET, PP, PE, GHS..
All of media was tested in special environment, not tested media possible can't be used.
Print quality 1200x2400dpi
Toner supplies CMY-18500sheets (A4, 5% coverage rate) K-26000 sheets (A4, 5%
coverage rate); (Rated according to ISO/IEC 19798 guidelines)
Drum supplies CMYK-100000 (print runs according to the operating cycle, Medium size and the direction to change)
Size 1400*810*1600mm
Weight Print engine: 423KGS
Operating environment Temperature: 20ºC-23ºC, Humidity: 45-55% RH
Power supply 110-127 VAC, 50-60Hz@2800W, 220-240 VAC, 50-60Hz@2800W
Power consumption (AC220-240V) sleep 75W; waiting 100W; running 1100W
Monthly running job Max. 20000sqm (advice)
Warranty 1 year (excluding high consumable parts)

Consumbales:
Toner K: print 26 sheets A4 with 5% coverage
Toner CMY: print 18.5K sheets A4 with 5% coverage
Drum: 100K sheets A4
Waste box: 300k sheets A4
Transfer cleaner: 200k sheets A4
Transfer roller: 200k sheets A4
Developer CMYK: 480k sheets A4
Developer house: 480k sheets A4
Fuser: 480k sheets A4
Transfer belt Assy: 480k sheets A4












Features





Software Features

Auto Calculate Label Printing Machine 320mm Media Width 0

The Ecoo LL320 digital label priting machine overturns digital label printing line. She has best advanced LED production printing engine. We have paid efforts integrate with much year experience. We get high efficiency and low cost printing machine. Most of printing company and print shop can have it and create a wonderful wealth.

• LED low temperature image technology
• CMYK 4 colors
• Printing resolution 1200*2400 dpi
• Print speed 7.26m per minute
• Print width 308mm

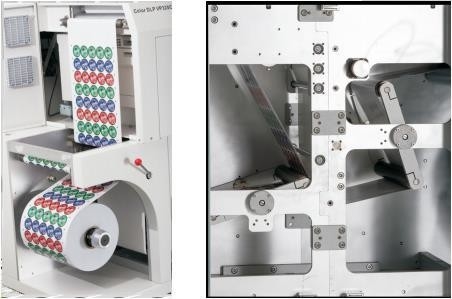

Auto web guide tension system

Auto Calculate Label Printing Machine 320mm Media Width 1

1. For tension adjustment of all media


2. Auto calculate the length of feeding

3. Ultrasonic detect edge of media to avoid media loading twisty

4. Avoid printing image to stretched and twisted

5. Increase the lifespam of engine







Producing And Packaging


From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



Auto Calculate Label Printing Machine 320mm Media Width 2



Auto Calculate Label Printing Machine 320mm Media Width 3



Auto Calculate Label Printing Machine 320mm Media Width 4



Auto Calculate Label Printing Machine 320mm Media Width 5



Auto Calculate Label Printing Machine 320mm Media Width 6



Auto Calculate Label Printing Machine 320mm Media Width 7












Certifications





Auto Calculate Label Printing Machine 320mm Media Width 8



Auto Calculate Label Printing Machine 320mm Media Width 9












FAQ






1. Payment term?
Down payment 30% of the total payment shall be made by T/T once order is confirmed and the balance shall be paid by T/T before delivery.

2. Installation and after service?
Conditional and prior to mutual agreement between the seller and the buyer.

3. Warranty?
12 months from the date of arrival at the port of destination. Damages caused by faulty operation do not fall under warranty wear and tears parts are not under warranty.

4. Package?
Seaworthy packaging (vacuum packed with aluminum foil in wooden cases).
