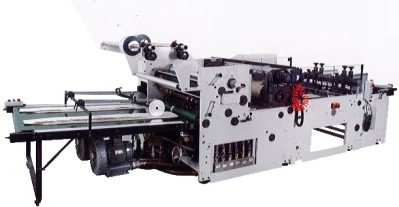

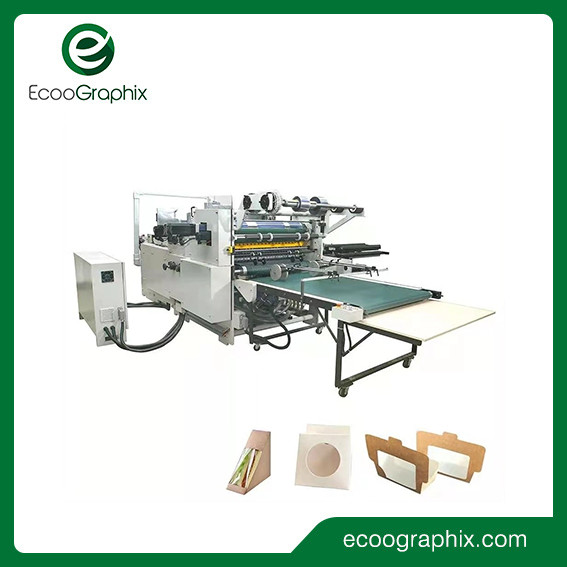

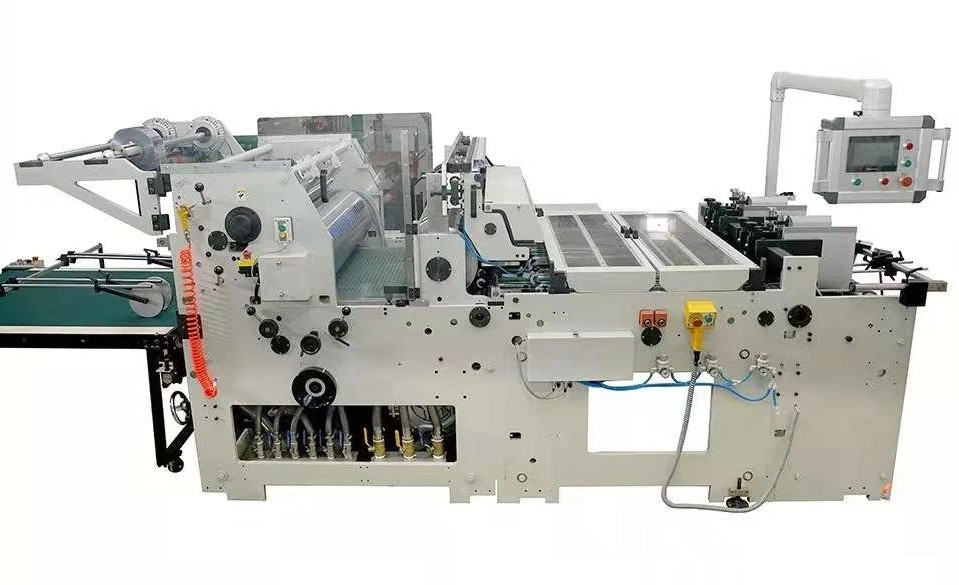

Window Patching Machine For Box
Product Description
Model: TC1100/TC1000
Speed of the machine: ≤200pcs/min; ≤400pcs/min
Length A of the blank paper: 100mm-900mm; 100mm-420mm
Width B of the blank paper: 80mm-1100mm; 80mm-530mm; 100mm-750mm; 100mm-380mm
Length window/lining material C: 80mm-760mm; 80mm-280mm
Width window/lining material C: 30mm-940mm; 30mm-380mm; 30mm-550mm; 30mm-220mm
| Window Patching Machine | |||||
| Model | Ecoo-TC1100 | Ecoo-TC1000 | |||
| The producting style | 1-lane operation | 2-lane operation | 1-lane operation | 2-lane operation | |
| Length A of the blank paper | 100mm-900mm | 100mm-900mm | 100mm-420mm | 100mm-420mm | |
| Width B of the blank paper | 80mm-1100mm | 80mm-530mm | 100mm-750mm | 100mm-380mm | |
| Length window/lining material C | 80mm-760mm | 80mm-760mm | 80mm-280mm | 80mm-280mm | |
| Width window/lining material C | 30mm-940mm | 30mm-380mm | 30mm-550mm | 30mm-220mm | |
| Speed of the machine | ≤200pcs/min | ≤400pcs/min | ≤200pcs/min | ≤400pcs/min | |
| Carton | |||||
| Carton weight | 180g/m2-600g/m2 | ||||
| Corrugated | ≤1.5mm | ||||
| Film thickness | |||||
| PVC, PE, PS | 0.05mm-0.3mm | ||||
| PET | 0.05mm-0.2mm | ||||
| Outer diameter | ≤500mm | ||||
| Inner diameter | 70mm-80mm | ||||
| The size of the machine | 5600(L)x2000(W)x1500(H)mm 4800(L)x1600(W)x1500(H)mm |
||||
| Main motor power | 4kw | ||||
| Total power | 22kw | ||||
Producing And Packaging
FAQ
Q: What about the Installation and after-sales technician support?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
