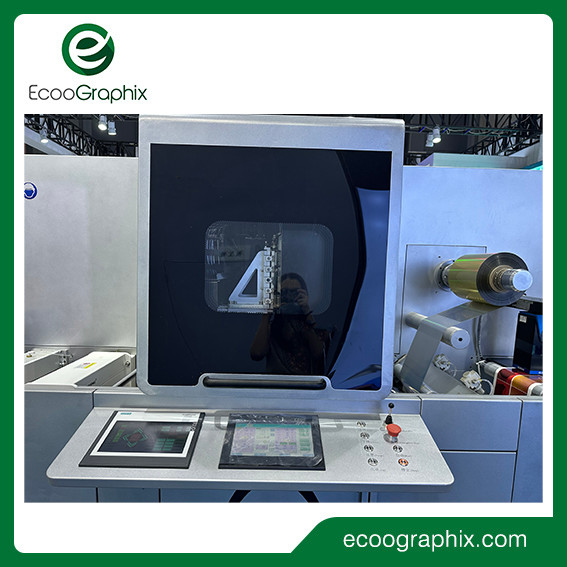

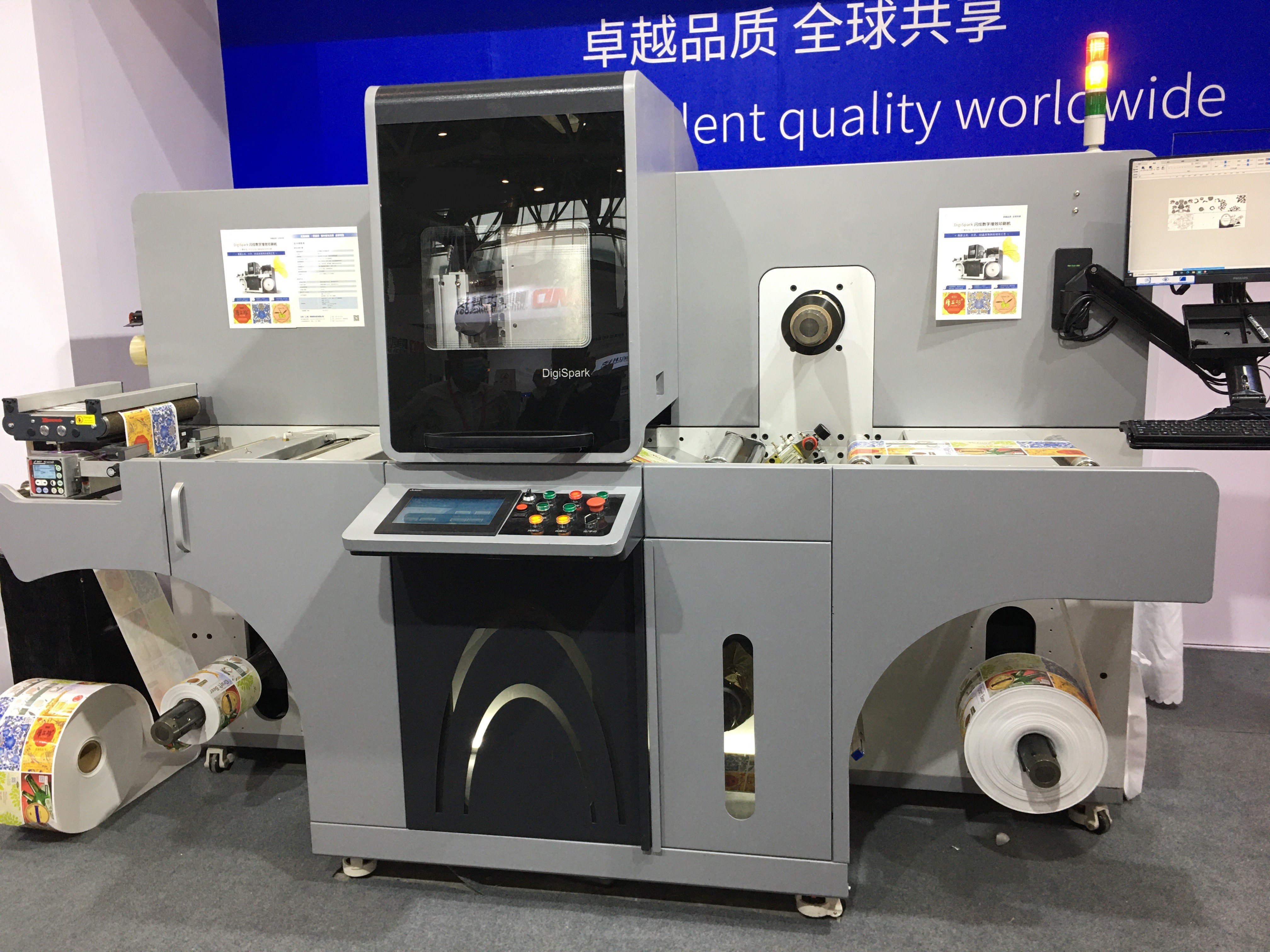

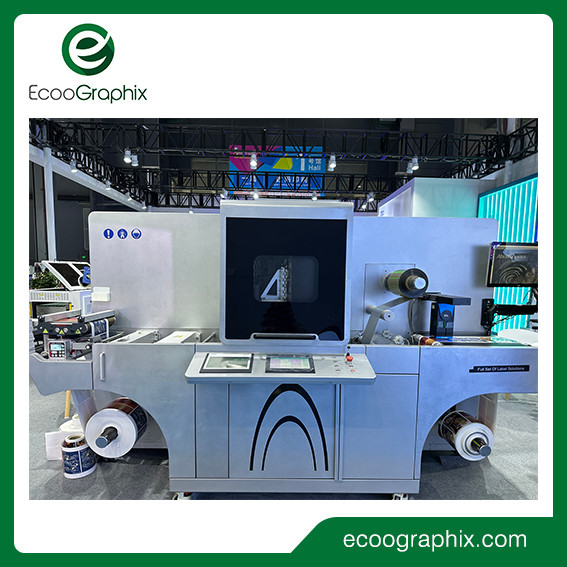

50m/min Foil Stamping And Varnishing Digital Label Enhancer
EcooGraphix's newly developed EcooSpark digital printing machine realizes digital synergistic processes such as digital varnish, 3D crystal bright, partial glazing, cold stamping, embossing, etc., without the need for plate making. It can reduce costs and instantly realize unique visual effects of printing. This is a digital post-press equipment that creates new profit points for users, and is a digital efficiency-enhancing printing machine.
Specification
| EcooSpark Digital Foil Stamping and Varnishing Enhancing Machine |
| Model |
EcooSpark |
| Printing Technology |
UV Piezo DoD-inkjet |
| Resolution |
360*360 dpi, up to 1440*360 dpi |
| Printing speed |
6m/min - 50m/min(depend on polymer layer thickness) |
| Variable Image system |
PDF, Optimized PDF, Optional barcode system |
| Supported image standards |
PDF, PDF/VT, TIFF, JPEG, BMP & other data base files |
| Substrates |
Offset, Digital, Plastics, Laminated and Coated substrates |
| Printing image width |
288mm (extendable to 330 mm) |
| Polymer |
WB-DS-Clear Polymer |
| Polymer layer thickness |
From 10 up to 250 microns |
| Ink curing |
Inter UV-LED Pre-curing/Full curing by UV-LED |
| Unwinder diameter |
Max. 700mm, Core 76mm |
| Rewinder diameter |
Max. 700mm, Core 76mm |
| Substrates thickness |
30-400 micro |
| Substrates width |
Max. 330mm |
| Press with Foil station |
Machine dimensions (LxHxW): 3500mmx1900mmx1800mm |
| Operating environment |
Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity |
| Electrical requirements |
Voltage: 3x380, ±5% 3 phases
+G+N Frequency: 50/60 Hz
Current: Avg. 58.6 Amps 23KW |
| Weight |
2800kg |
|
Function
Digital Foil stamping (Embossing/Raise Effect), Digital Varnishing, 3D Shining effect, Spot Varnishing, Braille etc. Realizing personalized printing, variable data printing, special effect printing, generating additional value on your printing jobs with High efficiency, lower cost, and high added value, producing jobs or effects which conventional ways can not achieve.
Features
Sturdy structure (double wall panel design)
Thick and thin materials, stability, mature platform
High stability
Good material applicability
No heating required
LED UV+water cooling roller
Suitable for ordinary cold foil
High quality-details, sharp edges:
Less heat, higher stability
Patented technology-better detail performance
Multi-process completed at one time
Customizable
Workflow
Advantages
Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
Certifications
FAQ
1. What are the postpress effects achieved by this machine?
Cold foil stamping, varnishing, 3D shining and embossing.
2. Can this model do color printing?
No. it you need a hybrid label printing machine which can do both printing and postpress printing, you can consider our other models. Please consult our sales.
3. How about the lead time and payment term?
We need 45 days to produce this machine. Normally our payment term is 30% deposit and 60% balance before shipment and 10% after installation.
4. How about the installation and operation training?
Our senior will fly to your location to do installation and training. It takes about 2 weeks. The service is free of charge but we will need the buyer to take the round trip freight and local hotel and meal cost.
5. Can you visit your factory?
Yes, our sales center based in Hangzhou and our factory based in shanghai. You are warmly welcome to visit us.
6. Can you do the sample as we required?
Yes, we can sample your artwork on your specified printing substrate and then courier to you. and also shoted the printing procedure for your reference.
7. Is the machine printing white?
No. This is not a color printing machine. It is more like a varnish-jet postpress machine.
8. is the machine all digital? what are the other similar machines in the markets?
Yes, all postpress procedures are digital, without any blanket or flexo plate. Just similar to Domino, HP, Epson and screen related products. But much more affordable.
