Roll To Roll Twice Speed Digital Die Cutting Machine

Specification

1 High precision feeding system:
Utilize the ultrasonic web-guide system, it makes sure the feeding perfectly.

2 Cold laminating:
It has cold laminating function, your label will be bright and perfect. The back liner removal is optional.

3 Digital die-cutting system:

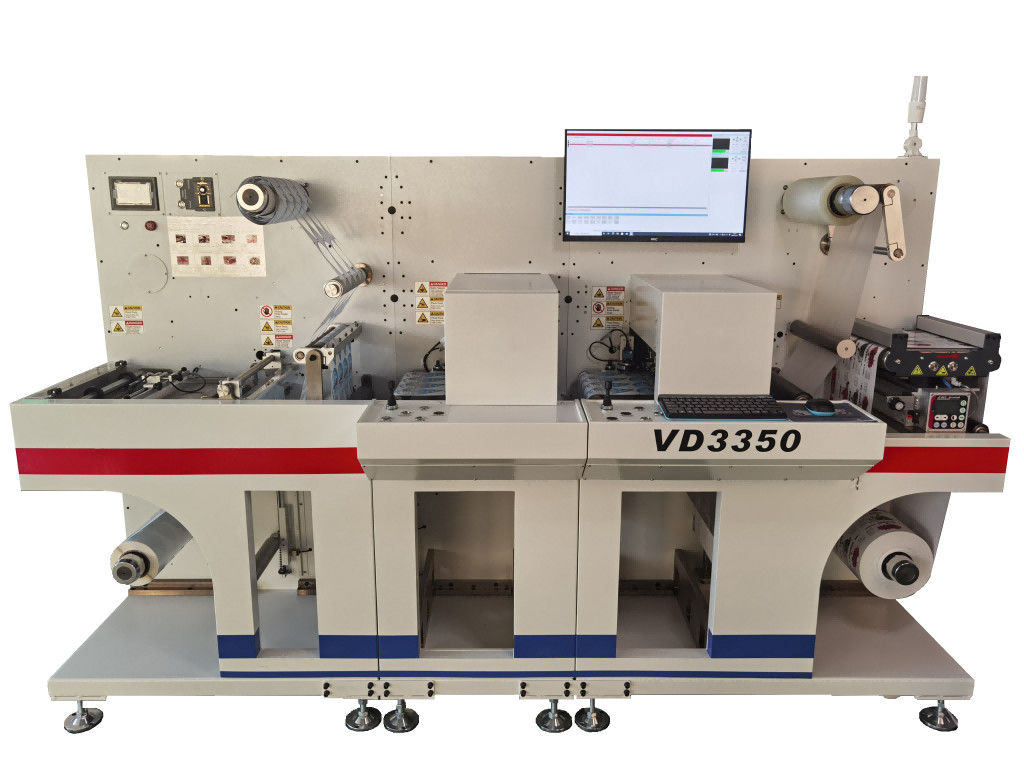

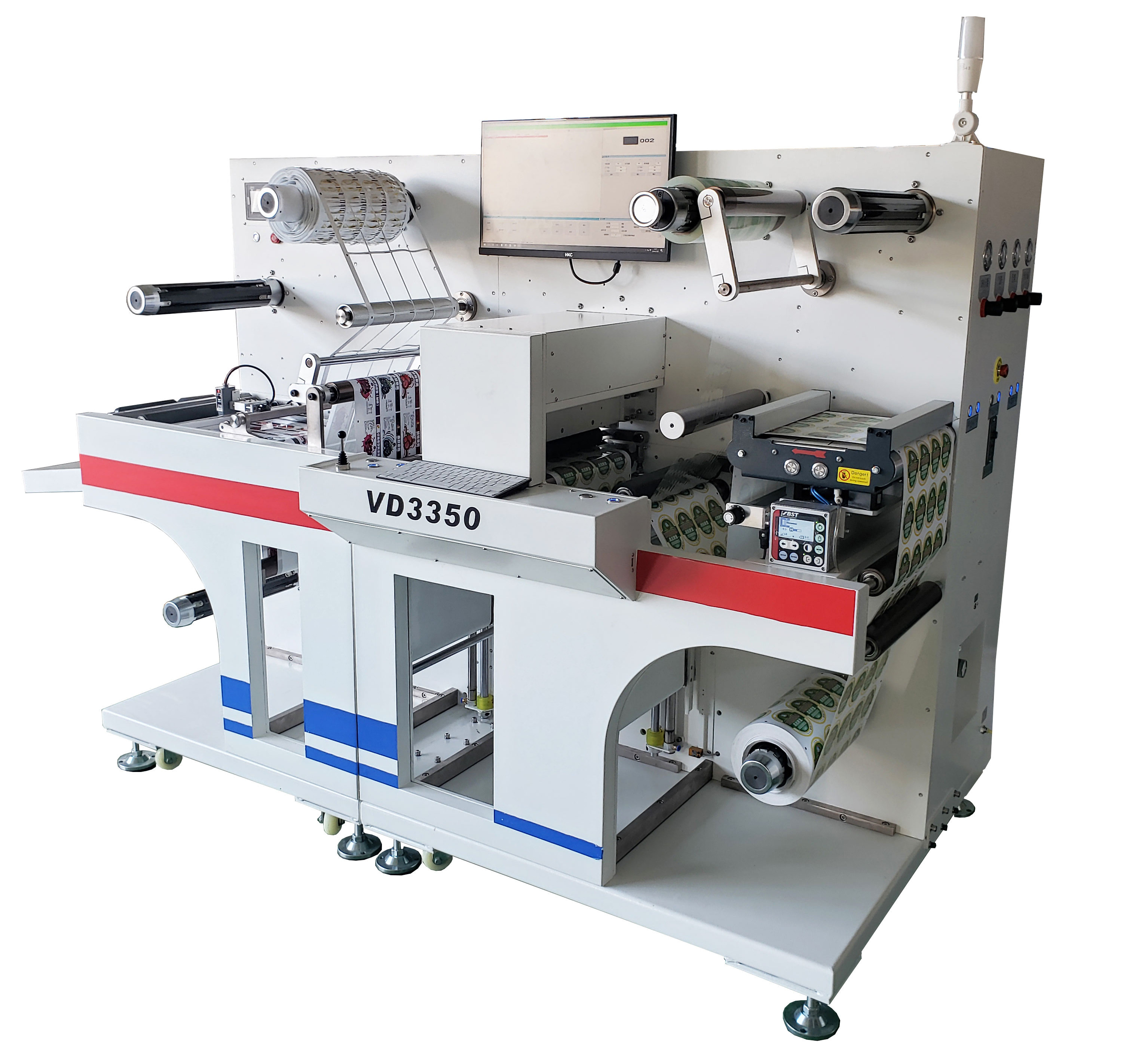

VD3350 Digital label die-cutter utilizes high precision screw transmission system. Max soeed can be 9m per minute. Individual control for the 4 heads, combining with the function of auto adjust the heads distance, to make the every single head on or off.

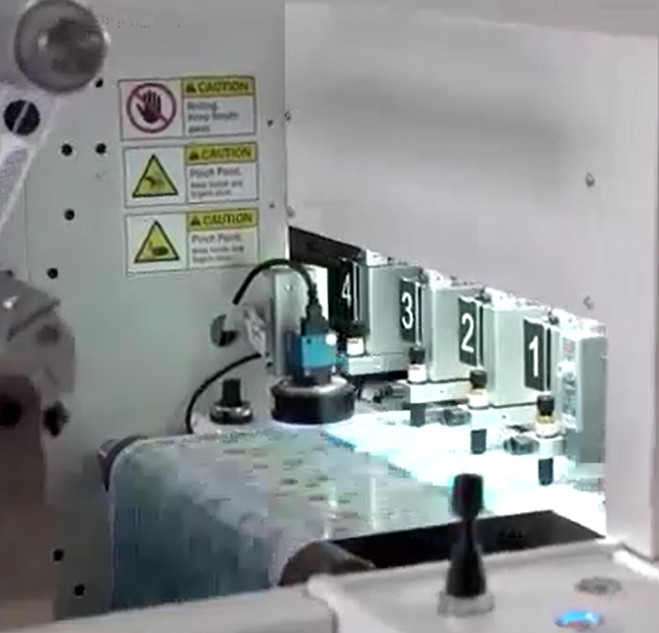

4 CCD identify system:
With the CCD camera position and identify system, to recognize the sequence, to reach the function of changing file and cutting next graphics automatically.

5 Precision slitting system:
Utilize rotary slitting mode, can install max.15 blades, high speed with 60m per minute, instead of traditional slitting equipment completely.

6 The waste removing system:
The precision machinery design can control the roller rotating uniformly, avoid removing waste discontinuously due to unstable pressure, keep finishing labels clean.

7 Sheet Cutter:
The optional built-in Pc350 Sheet Cutter, can be inline with the main Die-cutting, to perform the synchronous die-cutting and sheet cutting.

Features

1. Fast and high precision with full-servo motor
2. Fully automatic tension and feeding control
3. Intelligent position, choose file automatically
4. Standard 4 cutting heads distance can be adjusted automatically
5. Support 3 units cutting simultaneously
6. Intelligent cutting with trajectory optimization
