Product Description
Brief Introduction:
Adopt THK silent linear guide
Adopt German igus UL&cUL&CE certified highly flexible towline and imported synchronous wheels to ensure high-quality operation of the equipment
Upgraded version of high density cloth pressing wheel
Standardized waste ink alarm system, humanized real-time reminder
Double-motor paper take-up device to ensure the neatly retractable picture
Air drying and infrared dual drying system are optional
Upgraded version of the suction platform, the medium fits tightly to ensure that the print does not wrinkle

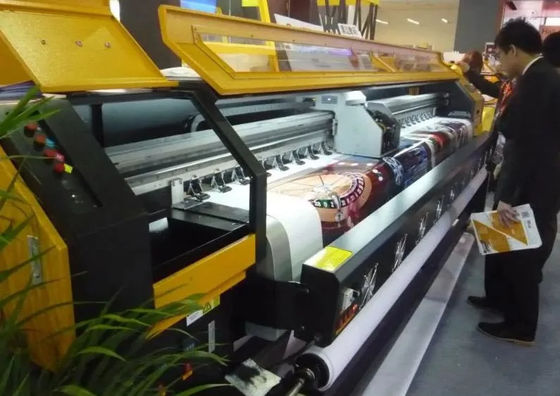

| Heat transfer wax printing machine for textile printing | |
| Model | E-jet V21 |
| Resolution & Speed | High quality model (6 pass): 1800 x 720dpi, 30m²/h |
| Production model (4 pass): 1200 x 720dpi, 45m²/h | |
| High speed model (2 pass): 600x 720dpi, 95m²/h | |
| Media Transfer | Auto Taking-Up Media Device |
| Inks | Double four color (CMYK), apply for water-base and dye sublimation ink |
| Rip | Maintop5.3/Photoprint10.5/Onyx |
| Print head | Dual EPSON I3200-A1 print heads (Nozzle Quantity 3200), Auto suck ink, ink suck protect system |
| Format Dimension | 2895L x 840W x 1490H (mm) |
| Head Moisture Method | Auto Head Cleaning and Moisturize |
| Media | Modalities: Roll to roll media |
| Specifications: Max width 1.9 meters, unlimited length | |
| Classification: Banner, sublimation paper, PE, PP, ABS, PU, Vinyl | |
| Print format | PDF, PS, EPS, TIFF, AL etc. (RGB/CMYK) |
| Power Supply | 210-230V, 50/60HZ, 16A, Print Power: 1000W |
| Dryer Power: Max.3500W Temperature: 18-30ºC | |
| Environment power | Temperature:18-30ºC |
| Humidity: 35-70%RH | |
| Gross power: | 3.6KW |
Producing And Packaging
FAQ
1. Production Lead Time: about 30days after received the deposit
2. Payment Term: 30% deposit, 70% before shipping
3. Warranty: One year warranty(For machine parts, we have one year guarantee. For motor, three months guarantee. For spare parts touching with ink, such as ink sat, ink pump, printhead, we have no guarantee. It's all the same in the market.)
4. Installation and Training:We help the installation through online Video , if you have problem when you use the machine, we will train you online. These are all for free. If needed, we can also send engineers to your place, but you need to pay their travel expense.
