Multi Cassettes CTP Plate Autoloader 75 Plates/Hour

1 SET
MOQ
Negotiable
Price
Multi Cassettes CTP Plate Autoloader  75 Plates/Hour
Features Gallery Product Description Request A Quote
Features
Specifications
Type: CTP Autoloader
Plate Feeding Speed: ≤ 75 Plates/hour
Plate Loading Quantity: 4 Cassette (100 Pieces Per Cassette)
Plate Size: Max. 1163 X 940mm, Min. 400 X 300mm
Plate Thickness: 0.15mm-0.40mm
Plate Loading Way: Manually Stack Plate In Cassette Or On Loading Platform
Vacuum Suction (Plate): -0.50Mpa
Power Supply: Single Phase: 220V, Max Power (Peak Value): 1,100W
High Light:

CTP Plate Autoloader

,

75 Plates/Hour CTP Plate Machine

,

Multi Cassettes CTP Plate Processors

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-MCU800
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 25 Days
Payment Terms: L/C, T/T
Supply Ability: 2000 Sets/Year
Product Description

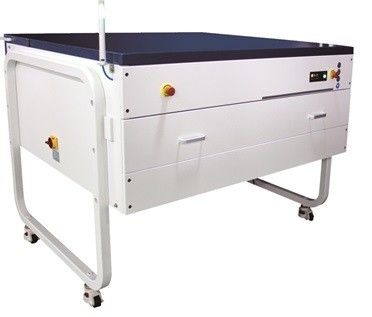

 Multi Cassettes CTP Printing Plate Autoloader










Specification





ECOO Cassette Autoloader Technical Specification


Model

MCU800(multi)


Cassette Type

Multi cassette (4 cassettes)


Plate Feeding Speed

≤ 75 plates/hour


Plate Size

Max. 1,163 x 940mm, Min. 400 x 300mm Plate


Thickness

0.15mm-0.40mm


Interface

RS 485


Plate Loading Way

Manually stack plate in cassette or on loading platform


Plate Loading Quantity

4 cassette (100 pieces per cassette)


Net Weight

560KG


Device Size

1,683 x 1,460 x 1,280mm (WxDxH)


Air Supply

> 0.65Mpa


Vacuum Suction (Plate)

-0.50Mpa


Vacuum Suction (Paper)

-0.40/-0.30MPa (different paper)


Power Supply

Single phase: 220V; Max power (peak value): 1,100W


Environment

Operating temperature range: 15-30ºC, Recommended temperature: 21-25ºC, Humidity: < 70%

ECOO Cassette Autoloader Technical Specification
Model MCU800(multi)
Cassette Type Multi cassette (4 cassettes)
Plate Feeding Speed ≤ 75 plates/hour
Plate Size Max. 1,163 x 940mm, Min. 400 x 300mm
Plate Thickness 0.15mm-0.40mm
Interface RS 485
Plate Loading Way Manually stack plate in cassette or on loading platform
Plate Loading Quantity 4 cassette (100 pieces per cassette)
Net Weight 560KG
Device Size 1,683 x 1,460 x 1,280mm (WxDxH)
Air Supply > 0.65Mpa
Vacuum Suction (Plate) -0.50Mpa
Vacuum Suction (Paper) -0.40/-0.30MPa (different paper)
Power Supply Single phase: 220V; Max power (peak value): 1,100W
Environment Operating temperature range: 15-30ºC,
Recommended temperature: 21-25ºC, Humidity: < 70%








Producing and Packaging

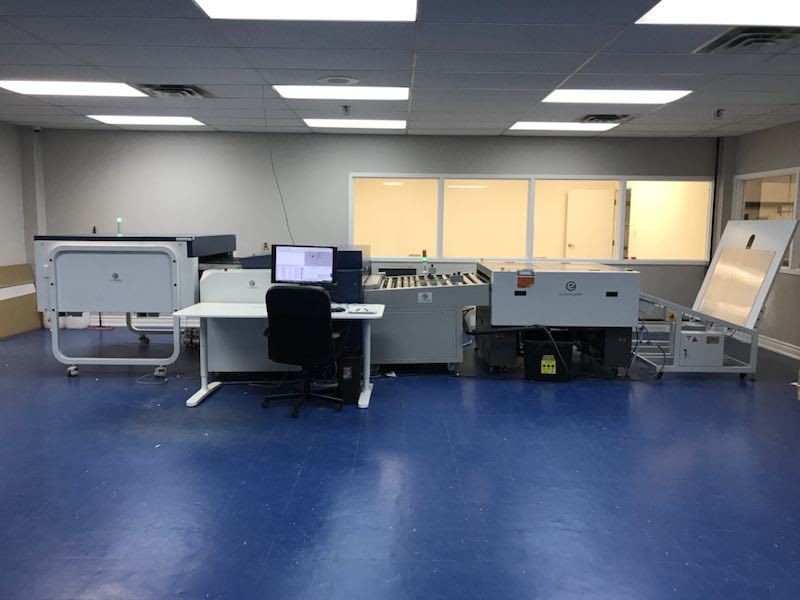

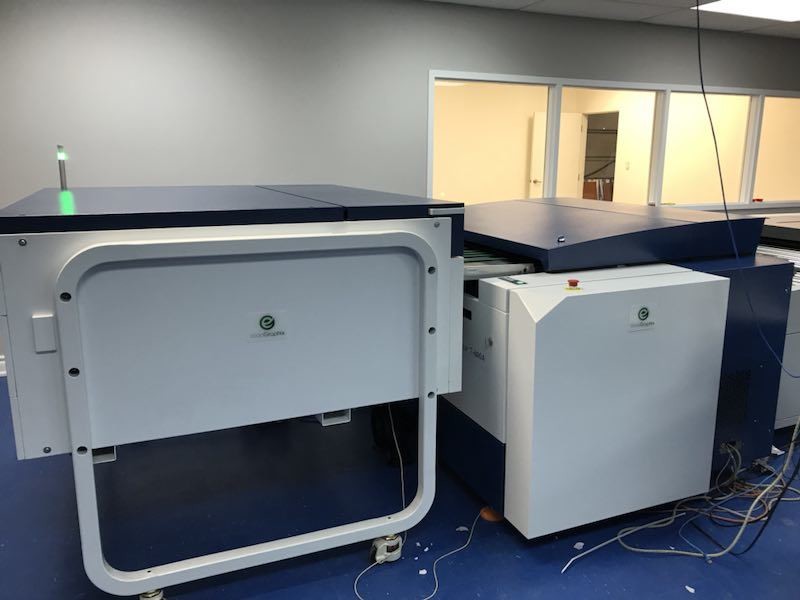

The full CTP producing line in customer printing fatory for your reference, which include MCU autoloader, CTP, Bridge, Processor and stacker. Thus, it is the highest automatic and fastest plate imaging line. From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



Multi Cassettes CTP Plate Autoloader  75 Plates/Hour 0



Multi Cassettes CTP Plate Autoloader  75 Plates/Hour 1



Multi Cassettes CTP Plate Autoloader  75 Plates/Hour 2



Multi Cassettes CTP Plate Autoloader  75 Plates/Hour 3



Multi Cassettes CTP Plate Autoloader  75 Plates/Hour 4










  Certificates





Multi Cassettes CTP Plate Autoloader  75 Plates/Hour 5



Multi Cassettes CTP Plate Autoloader  75 Plates/Hour 6










 FAQ





 1) What are your main products ?

Our main products are the Prepress CTP System (4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor), and Post Press Packing Equipments (Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching Machine, Book Binding Machine and so on) and the Printing Consumables(Offset Printing Plates, Inks, Printing Blankets, Plate Dot Densimeter).

Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.




 2) Where is your factory ?

Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai.
You are warmly welcome to visit our factory!




 3) What is your warranty for the CTPs ?

Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.



 4) What is the Lead Time ?

Usually 20-30 days, and we will try our best to meet your demands.



 5) Can you also supply the Workflow and RIP ?

Yes, we can provide the Workflow Brain New and RIP Compose.



 6) What about the Installation and after-sales technician support ?

Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
