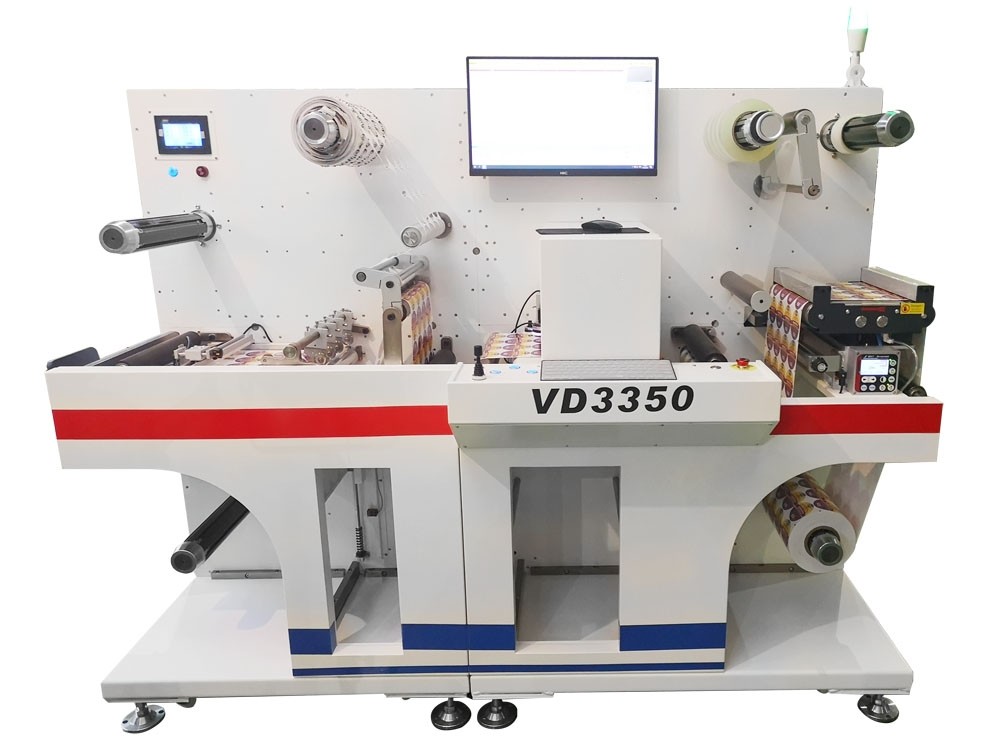

330mm Digital Label Die Cutting Machine with Slitting Sheeting and Laminating
Use the unique and intelligent digital die-cutting technology of our VD3350 high speed digital label due cutter, automatically choose cutting file and adjust te heads distance. Cutting by four heads*3 units simultaneously. You do not need to worry about the production of small and medium batch labels. What is more important is it reduces the manual intervention and greatly improves the work efficiency compared with the previous digital cuttings.
1. High precisions feeding system
Utilize the ultrasonic web-guide system, it makes sure the feeding perfectly.
2. Cold laminating
It has cold laminating function, your label will be bright and perfect. The back liner removal is optional.
3. Digital die-cutting system
VD3350 utilizes high precision screw transmission system.
Max soeed can be 9m per minute. Individual control for the 4 heads, combining with the function of auto adjust the heads distance, to make the every single head on or off.
4. CCD identify system
The CCD camera position and identify system,can recognize the sequence, to reach the function of changing file and cutting next graphics automatically.
5. The waste removing system
Dual mechanical force expansion control, multi-angle waste discharge frame, can uniformly remove waste, avoid uneven strength caused by intermittent waste discharge, make the product clean and tidy.
6.Built-in sheet cutting system
Optional built-in PC350 slitter to realize wired cutting and
synchronous die-cutting and sheet cutting.
