| Model | Ecoo HIS-1100 | Ecoo HIS-1280 | Ecoo HIS-1450 |
| Max.sheet size | 1100x1100mm | 1100x1280mm | 1100x1450mm |
| MIN.sheet size | 310X406mm | 350X460mm | 350X460mm |
| Max.coating size | 1090x1090mm | 1090x1270mm | 1090x1440mm |
| Sheet thickness | 80-600gsm | 80-600gsm | 128-600gsm |
| Coating registration accuracy | ±0.2mm | ±0.2mm | ±0.2mm |
| Production speed | 6800sheets/hour | 6500sheets/hour | 6200sheets/hour |
| Weight | 8500kg | 9000kg | 9500kg |
| Dimension | 12010x2779x1818mm | 12230x2960x1844mm | 12230x3100x1844mm |
| Power | 50KW(E) 42KW(W) | 54KW(E) 44KW(W) | 57KW(E) 47KW(W) |
| Remark: Production speed depending on sheet weight, size and quality | |||
Machine Spare Parts
1. Feeder
Enlarged feeder with four sucking and six forwarding suckers and air blowing for spool can feed sheet easily and smoothly.
2. Front Side Lay Gauge
When sheet reaches front lay gauge, left and right pulling lay gauge can be used. The machine can stop feeding immediately by sensor without sheet and release pressure to keep bottom roller under no varnish condition.
3. Varnish Supply
Steel roller and rubber roller with metering roller reversing and doctor blade design control by varnish consumption and volume to meet the demand of products and operate easily. (Varnish consumption and volume are determined by LPI of ceramic anilox roller)

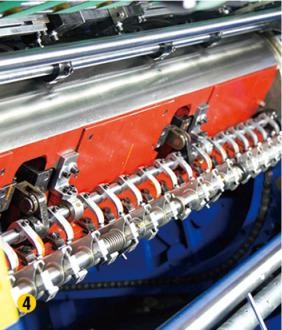

4. Transferring Unit
After sheet is transferred from pressure cylinder to gripper, air volume blowing for paper can support and reverse sheet smoothly, which can prevent sheet surface from being scratched.
5. Conveying Unit
Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery.
6. Sheet Delivery
Automatic pneumatic patting sheet controlled by photoelectric detecting sensor make sheet pile fall automatically and collect sheet neatly. Electronic control can take out sheet sample safely and quickly for inspecting.
Q: What about the Installation and after-sales technician support?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
