Product Description
Brief Introduction:
Automatic stamping machines are commonly used for general packaging, such as label hot stamping, card hot stamping, food packaging hot stamping, etc.
The automatic stamping machine 1080BQ is one of the best-selling products, especially in Europe. Such as the UK, Hungary, Romania, Croatia, Portugal, Bulgaria, and the Czech Republic.

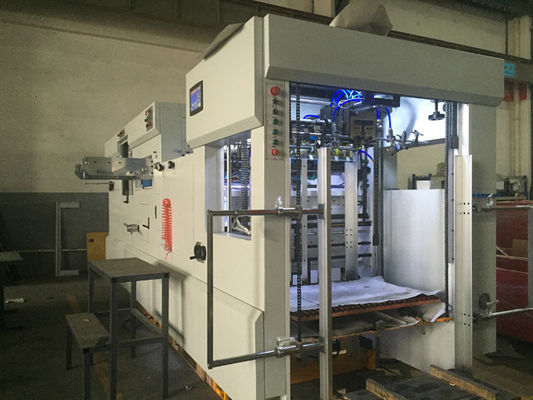

1080BQ automatic DIE CUTTING machine is a very stable machine, and its first version was designed 20 years ago.So far we have sold more than 300 automatic stamping machines worldwide.
It is used for automatic stamping roll material, after printing, lamination. Suitable for the production of paper boxes, paper cups, wrapping labels, cardboard embossing, portable paper bags, paper covers, PVC, various plastics, etc.
| Model | Ecoo-1080BQ |
| Max. Sheet size(mm) | 1080 x 780 |
| Min. Sheet size(mm) | 400 x 330 |
| Max. Die cutting size(mm) | 1075 x 770 |
| Inside chase size(mm) | 1100 x 790 |
| Cutting plate size | 1080 x 780 |
| Min.gripper margin(mm) | 7 |
| Die cutting accuracy(mm) | ≤±0.1 |
| Max.pressure(T) | 300 |
| Max.machine speed(s/h) | 7000 |
| Feeding pile height(mm) | 1550 |
| Delivery pile height(mm) | 1400 |
| Stock range | White board paper: 0.1~2 mm; corrugated paper: <4 mm |
| Power | 17.8kw |
| Dimension(mm) | 5880(+1650) x 2100(+1600) x 2350 |
| Weight(T) | 17.6 |
Mode
Machine Spare Parts List
1. Perfect design, fine assembly, good stability, strong safety and low noise
2. Worm gear, worm, crankshaft transmission technology, high die-cutting pressure and long service life.
3. High-precision clearance mechanism, high die-cutting accuracy and stable operation.
4. Adopting European technology feeder head, the suction paper is adjustable, stable and accurate, and the paper has strong applicability.
5. Non-stop paper feeding, pre-coded paper stacks and paper payment and collection mechanisms can shorten auxiliary time and improve work efficiency.
6. Die-cutting plate frame and bottom plate mechanism, humanized design, quick and convenient plate loading and adjustment.
7. Three-frame linkage mechanism with waste removal function, humanized design, installation of waste removal plate and adjustment removal plate fast and convenient. (optional)
8. Pneumatic plate locking device makes the plate frame more firm, accurate and time-saving.
9. The front gauge, side gauge, and paper feeder fine-tuning device make paper positioning more accurate.
10. The photoelectric level control of double sheets, crooked sheets, and empty sheets ensures the accuracy and stability of the paper and reduces waste.
11. The electrical control modular design adopts imported electrical components to ensure accurate control and good reliability.
12. Touch screen man-machine interface, real-time dynamic monitoring and display of running status, convenient and quick machine adjustment and troubleshooting.
13. The circulating cooling oil supply system ensures that the moving parts of the machine have good lubrication and are durable.
14. The timing and quantitative automatic oil supply system ensures that other moving parts of the machine are fully lubricated and have a long service life.
European technology precision feeder head for cardboard and corrugated paper. Four suction and four feed, the suction angle can be adjusted according to the deformation of the paper.
Two-sided push-pull dual-purpose side regulation. Electromechanical double sheet detector. The main paper feeding table is switched without stopping the machine. Super wear-resistant polyurethane paper conveying roller.
The pressure-bearing parts are high-strength ductile iron QT500, which has high strength and never deforms. Alloy steel crankshaft treated with special process.
Packaging & Shipping
More Details
FAQ
Q: What about the Installation and after-sales technician support?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
