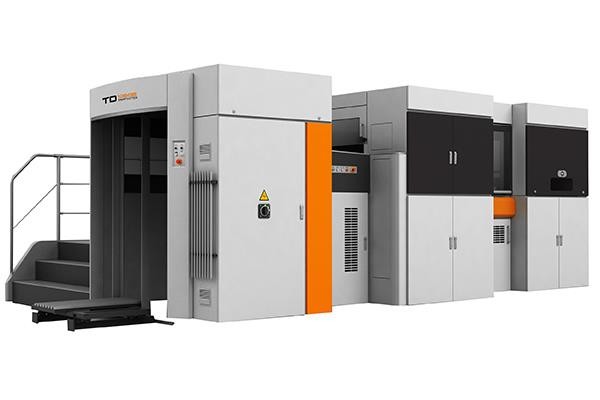

Product Description
Main Features:
| Model | ECOO-TD1060S | ECOO-TDS1060 |
| Maximum sheet(mm) | 1060x740 | 1060x740 |
| Minimum sheet size(mm) | 400x360 | 400x360 |
| Max. Die cutting size(mm) | 1040x730 | 1040x730 |
| Max. Stamping size(mm) | / | 1020x720 |
| Height of cutting rules(mm) | 23.8 | 23.8 |
| Maximum pressure(N) | 300x10 | 300x10 |
| Inside chase size(mm) | 1120x760 | 1120x760 |
| Stock range | Cardboard 90-2000g/m²(E, B flute) | Cardboard 90-2000g/m²(E, B flute) |
| Min. gripper margin(mm) | 4 | 4 |
| Maximum speed(s/h) | 7500 | 7500 |
| Max. hologram stamping plate(mm) | / | 6000 |
| The thickness of stamping plate | 5 | 5 |
| Longitudinal feeding shafts | / | 3 (optional 6) |
| Transversal feeding shafts | / | 2 |
| Feeding pile height(mm) | 1150 | 1500 |
| Delivery pile height(mm) | 1100 | 1100 |
| Electric heating system | / | 12 zones |
| Min. foil width(mm) | / | 15 |
| Foil reel core(mm) | / | 25(1") 76(3") |
| Rated power(kw) | 23 | 46 |
| Air supply | 0.8-1.0 MPa, ≥0.6m/min | 0.8-1.0 MPa, ≥0.6m/min |
| Overail dimension(mm) | 6000x4200x2400 | 6000x4530x2250 |
| Weight of machine(kg) | 16000 | 18000 |
Model
Machine Spare Parts List
Feeder
The intelligent feeder system gives perfect sheet feeding,
cuts feeder errors on all the material you work with everyday include paper, cardboard and mocroflute.
Die cutting section
Pressure can be set on the touch screen.
The machine supervission display and 3D touch screen show the working condition of the machine for malfunction diagnosis.
Chase is installed with centerline system and pheumatic lock-up system.
Stripping unit
The stripping unit is designed to remove even the smallest pieces of waste.
Using dedecated or universal tooling, the station is up and running in no time, delivery outstanding performance and quality, whatever the jol.
Quick lock system provide fast and easy makerady.
Advantages
Packaging & Shipping
More Details
FAQ
Q: What about the Installation and after-sales technician support?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
