Rotary Automatic Foil Stamping Die Cutting Machine 750 X 560mm

1SET
MOQ
Negotiable
Price
Rotary Automatic Foil Stamping Die Cutting Machine 750 X 560mm
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic Foil Stamping & Die-Cutting Machine
Warranty: 1 Year
Imprinting Type: Rotary
Placing Form Of Template: Horizontal
Die Cutting Tool: Steel Plate
Automatic Grade: Semi-Automatic
Application: Paper Packaging Materials, Cardboard
Max. Sheet Size: 750X560mm
Min. Sheet Size: 280X220mm
Max. Die Cutting Size: 700X500mm
Max. Stamping Size: 700X500mm
Height Of Cutting Rules: 23.8mm
Max. Machine Speed: 2500(S/H)
Max. Stamping Speed(S/H): 2500(S/H)
The Thickness Of Stamping Plate: 3.5mm
High Light:

750 X 560mm Foil Stamping Machine

,

Rotary Foil Stamping Die Cutting Machine

,

Cardboard Foil Die Cutting Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-TDS 750L
Payment & Shipping Terms
Packaging Details: Wooden Case
Payment Terms: L/C, T/T
Supply Ability: 500sets/Year
Product Description

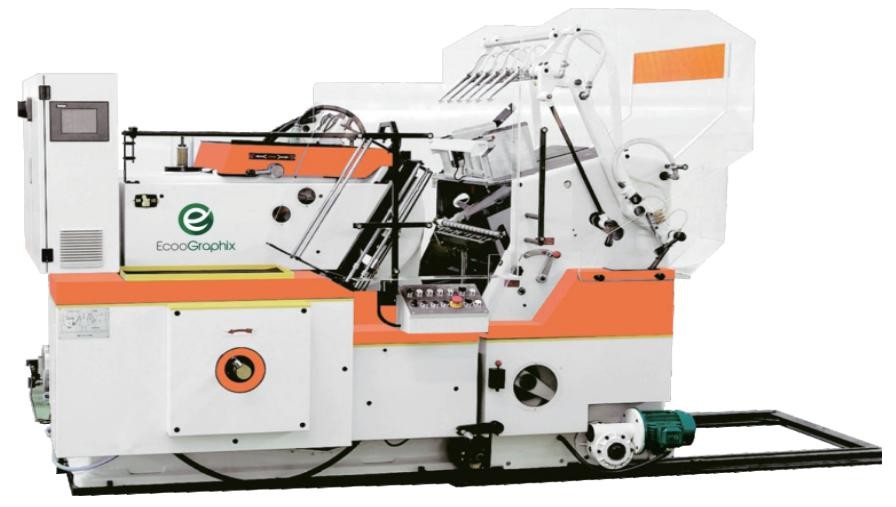

Automatic Foil Stamping & Die-CuttingMachine ECOO-TDS 750L

Rotary Automatic Foil Stamping Die Cutting Machine 750 X 560mm 0



Product Description


Brief Introduction:

TDS750L cardboard die cutting machine is designed for the hot stamping, die cutting, pressing convex and creasing etc techniques, it is suitable for paper, cardboard, plastic file and so on. It can finish feeding, die cutting separating collecting work cycle automatically.

Most of factory owners rather choose cardboard die cutting machine. They were attracted by economical, smart, easy to change plates and other features of this model. We will support installation and training for new customer for free (labor cost).


Excellent adaptability and convenient operation make the machine work stably and safely. Automatic hot foil stamping machine will provide you with comfortable operation and a faster return on investment.

Application:

The TDS750 is especially suitable for customers with short working hours but high production demands because of its faster conversion system and smarter design. In so many years of sales, the automatic hot stamping machine TDS750 is still one of our best-selling products with its ingenious design. Many customers with lower budgets are very interested in this machine.

Rotary Automatic Foil Stamping Die Cutting Machine 750 X 560mm 1

Specification



Model ECOO-TDS 750L
Max. Sheet Size(mm) 750x560
Min. Sheet Size(mm) 280x220
Max. die cutting size(mm) 700x500
Max. stamping size(mm) 700x500
Height of cutting rules(mm) 23.8
Max. pressure(N) 110x10
Stock range Min. Sheet 90g/m²; Cardboard 157-2000g/m²; E, B flute
Max. machine speed(s/h) 2500
Max. stamping speed(s/h) 2500
The thickness of stamping plate(mm) 3.5
Foil advancing shafts 2
Feeding pile height(mm) 800
Delivery pile height(mm) 160
Electric heating system 4 zones
Min. foil width(mm) 15
Foil reel core(mm) 25(1") 76(3")
Rated power(kw) 40
Air supply 0.8-1.0 MPa, 0.6m/min
Overall dimension(mm) 2600x1720x1975
Weight of machine(kg) 4200

Model





Machine Spare Parts List




1. Delivers accurate, adjustable impression for foil stamping, embossing and die cutting
2. Two horizontal, cross pull foil feeds are fully programmable to provide maximum versatility and excellent foil economy
3. Air blast system helps separate foil from stock on critical jobs
4. Micrometer adjustment on side guide and front guide
5. Adjustable dwell on impression
6. Honeycomb base is convenient for loading
7. Missed sheet detector
8. 4 heating zones with digital control
9. 24 hours preheating device
10. Control system with touch screen HMI, PLC and servo system
.









Packaging & Shipping




Rotary Automatic Foil Stamping Die Cutting Machine 750 X 560mm 2

Rotary Automatic Foil Stamping Die Cutting Machine 750 X 560mm 3







Rotary Automatic Foil Stamping Die Cutting Machine 750 X 560mm 4



Rotary Automatic Foil Stamping Die Cutting Machine 750 X 560mm 5



More Details




Rotary Automatic Foil Stamping Die Cutting Machine 750 X 560mm 6



Rotary Automatic Foil Stamping Die Cutting Machine 750 X 560mm 7

FAQ


Q: What about the Installation and after-sales technician support?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
