Product Description

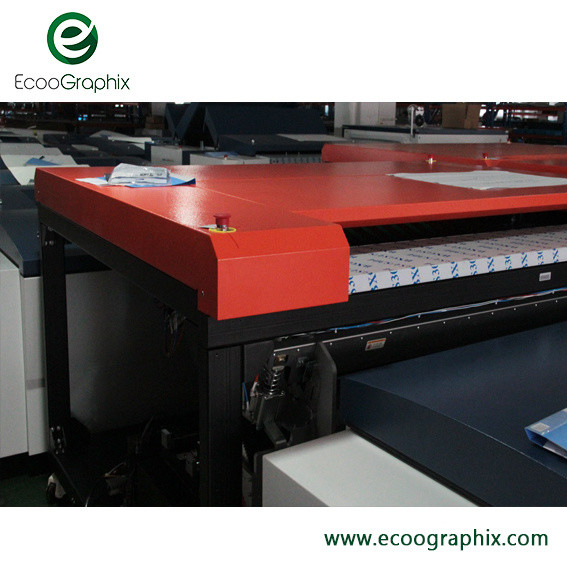

EcooGraphix VLF(Very Large Format) Thermal CTP Machine T1600M can be used for B0 paper size posters or wall-charts, large books, catalogue, yellow pages, packaging processing and plate-making center etc., with the output speed 14 -22 plates per hour.
Specification
| EcooGraphix UV-1600M CTP Series Specifications | ||
| Model | UV-1600MX | |
| Imaging System | 256 channel | |
| Output Speed | 22 pph | |
| 1630mm x 1325mm / 2400dpi | ||
| Plate Size | Max.1680 x 1350mm Min. 650mm x 550mm | |
| Plate Thickness | 0.15mm to 0.40mm( Alternative) | |
| Resolution | 2400dpi | |
| Weight | 900KG | |
| Repeatability |
±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%) |
|
| Machine Size (WxLxH)mm | 2400×1764×1100mm(W×D×H) | |
| Power Supply | triple-phase: 380V; Max power: 5.5KW | |
| Environment | recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: <70%RH | |
Producing and Packing
Installation Worldwide
FAQ
1.What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTP, one year for the processor.
4. What is the Lead Time?
Usually 30-45 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose .
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
