UV / CTCP Plate Making Machine Platesetter Prepress CTP Plate Machine

1 SET
MOQ
Negotiable
Price
UV / CTCP Plate Making Machine Platesetter Prepress CTP Plate Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Resolutions: 2400dpi
Plate Sizes: Max. 1163mm X 940mm, Min. 400mm X 300mm
Imaging System: 64CH; 48CH; 32CH
Throughput (Plates/Hour): 28; 22; 16, 1030mm X 800mm, 2400dpi
Plate Thickness: 0.15mm To 0.30mm
Media Type: Positive UV-CTP/CTCP Plate Or High Sensitive PS Plate
Interface: USB 2.0
Machine Size (WxLxH)mm: 2320x1080x960
High Light:

CTCP Plate Making Machine

,

UV CTP Platesetter

,

UV Prepress Plate Making Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: EcooSetter UV-800 F/S/E
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 25 Days
Payment Terms: L/C, T/T
Supply Ability: 5000 Sets/Year
Product Description



 Computer To Plate Making Machine Prepress Equipment UV-CTP/CTCP

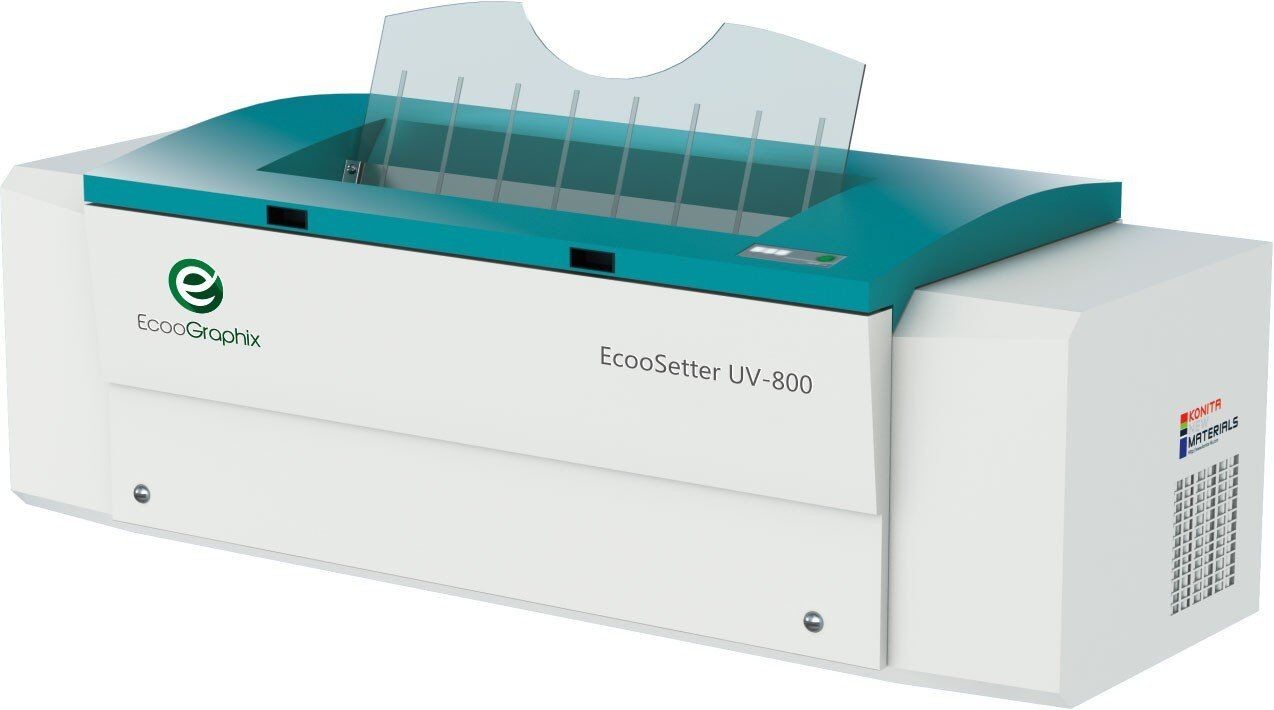

UV / CTCP Plate Making Machine Platesetter Prepress CTP Plate Machine 0











 Application


EcooGraphix UV-CTP/CTCP(CTP) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTCP plate directly through the UV-CTP machine and save the film and labor.







  Specification


ECOO UV-800 Series CTP Specifications

Model
UV-800F; UV-800S; UV-800E

Exposing Method
External Drum

Imaging System
64-channel; 48-channel; 32-channel, Discrete 405nm laser diode

Throughput
28plates/hour; 22plates/hour; 16plates/hour, 1030mm x 800mm, 2400dpi

Plate Sizes
Max. 1163mm x 940mm, Min. 400mm x 300mm

Exposing Size
Max. 1130mm x 884mm, Min. 260mm x 284mm

Media Type
Positive UV-CTP/CTCP plate or high sensitive PS plate

Plate Thickness
0.15mm to 0.30mm

Resolution
2400dpi

Repeatability
±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)

Interface
USB 2.0

Plate Loading
Semi automatic

Net Weight
900kg

Machine Size (WxLxH)mm
2320x1080x960

Power Supply Single phase:
220AC, + 6%, - 10%, Power Consumption: 4KW

Operation Environment
Recommended: 21-25ºC, Max.18-26ºC, Humidity:40-70%
ECOO UV-800 Series CTP Specifications
Model UV-800F UV-800S UV-800E
Exposing Method External Drum
Imaging System 64-channel 48-channel 32-channel
  Discrete 405nm laser diode

Throughput

28plates/hour 22plates/hour 16plates/hour
1030mm x 800mm, 2400dpi
Plate Sizes Max.1163mm x 940mm Min. 400mm x 300mm
Exposing Size Max.1130mm x 884mm Min. 260mm x 284mm
Media Type Positive UV-CTP/CTCP plate or high sensitive PS plate
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Repeatability ±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface USB 2.0
Plate Loading Semi automatic
Net Weight 900kg
Machine Size (WxLxH)mm 2320x1080x960
Power Supply Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW
Operation Environment Recommended: 21-25ºC, Max.18-26ºC, Humidity:40-70%










Success Cases









UV / CTCP Plate Making Machine Platesetter Prepress CTP Plate Machine 1



UV / CTCP Plate Making Machine Platesetter Prepress CTP Plate Machine 2



UV / CTCP Plate Making Machine Platesetter Prepress CTP Plate Machine 3



UV / CTCP Plate Making Machine Platesetter Prepress CTP Plate Machine 4












Producing and Packaging




From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



UV / CTCP Plate Making Machine Platesetter Prepress CTP Plate Machine 5



UV / CTCP Plate Making Machine Platesetter Prepress CTP Plate Machine 6



UV / CTCP Plate Making Machine Platesetter Prepress CTP Plate Machine 7



UV / CTCP Plate Making Machine Platesetter Prepress CTP Plate Machine 8







UV / CTCP Plate Making Machine Platesetter Prepress CTP Plate Machine 9










  Certificates



UV / CTCP Plate Making Machine Platesetter Prepress CTP Plate Machine 10





UV / CTCP Plate Making Machine Platesetter Prepress CTP Plate Machine 11












 FAQ






 1. What are your main products ?

Our main products are the Prepress CTP System (4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor), and Post Press Packing equipments (Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching machine, Book Binding machine and so on) and the Printing consumables(Offset Printing Plates, inks, printing blankets, Plate dot densimeter) .

Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.




 2. Where is your factory ?

Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!




 3. What is your warranty for the CTPs ?

Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.



 4. What is the Lead Time ?

Usually 20-30 days, and we will try our best to meet your demands.



 5. Can you also supply the Workflow and RIP ?

Yes, we can provide the Workflow Brain New and RIP Compose V9. Machine price does not include software.



 6. What about the Installation and after-sales technician support ?

Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.

These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
