Automatic Thermal CTP Plate Machine / Platesetter Plate Making Machine

1 SET
MOQ
Negotiable
Price
Automatic Thermal CTP Plate Machine / Platesetter Plate Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Machine Size (Wxlxh)mm: 2127 X 1610 X 1058
Imaging System (Channel): 64CH/ 48CH/ 32CH, Discrete 830nm Laser Diode
Throughput (Plates/Hour): 28pph/ 22pph/ 16pph, 1030mm X 800mm, 2400dpi
Media Type: Positive Thermal CTP Plate
Plate Thickness: 0.15mm To 0.30mm
Resolution: 2400dpi (Option: 1200dpi)
Repeatability: ±5μm(Continuous Exposing For 4 Times Or Above On The Same Plate With A Temperature Of 23℃ And Humidity Of 60%)
Environment Recommended: Recommended: 21-25℃, Max.15-30℃, Humidity: 40-70%
High Light:

Automatic Thermal CTP Platesetter

,

Positive Thermal CTP Plate Making Machine

,

48CH CTP Plate Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO T-800(E, S, F) A
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 10,000 Sets/Year
Product Description



 Automatic Online Platesetter Thermal CTP Machine

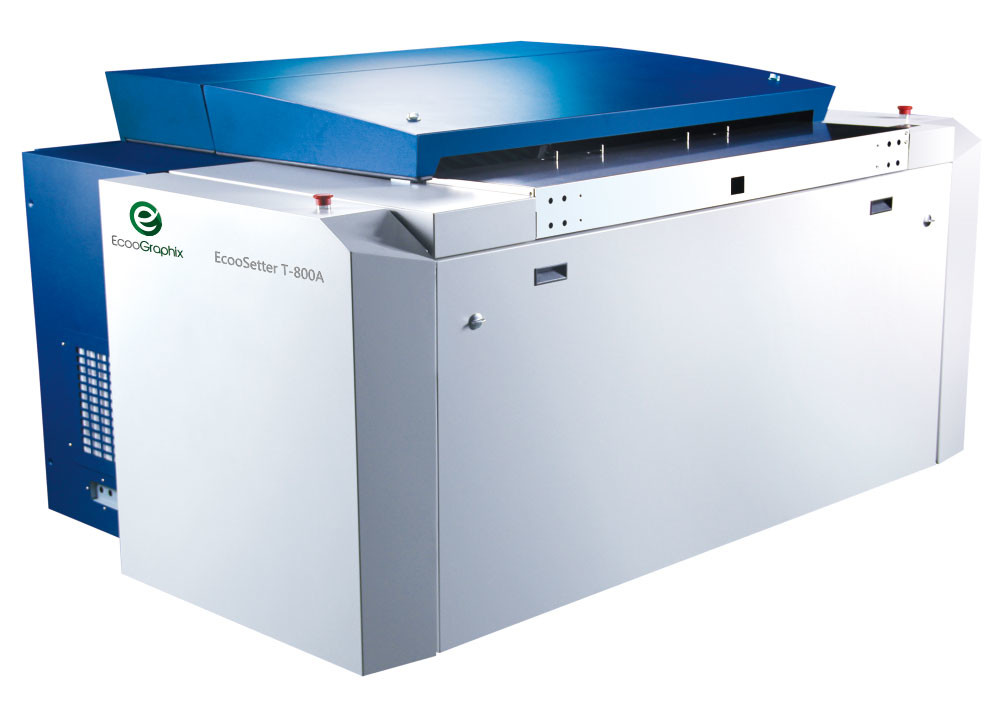

Automatic Thermal CTP Plate Machine / Platesetter Plate Making Machine 0








 Application



EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly though the CTP machine and save the film and labor.

By the EcooGraphix CTP, the customer can get excellent output image quality, highly reliable stability, less space occupied with more flexibility.

EcooGraphix T800series Thermal CTP are for A1 or B1 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual, very easy to use.












Specification



ECOO T-800 Series Automatic CTP Specifications(online system)

Model

T-800FA, T-800SA, T-800EA


Exposing Method

External Drum


Imaging System

64-channel, 48-channel, 32-channel, Discrete 830nm laser diode


Throughput

28PPH, 22PPH, 16PPH, 1030mm x 800mm, 2400dpi


Plate Sizes

Max. 1163mm x 940mm, Min. 300mm x 400mm (300mm x 250mm is available)


Exposing Size

Max.1130mm x 884mm


Media Type

Positive thermal CTP plate


Plate Thickness

0.15mm to 0.30mm


Resolution

2400dpi (option: 1200dpi)


Repeatability

±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)


Interface

USB 2.0


Plate Loading

Semi automatic


Net Weight

1200kg


Machine Size (WxLxH)mm

2127 x 1610 x 1058


Power Supply

Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW


Environment

Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%

ECOO T-800 Series Automatic CTP Specifications(online system)
Model T-800FA T-800SA T-800EA
Exposing Method External Drum

Imaging System
64-channel 48-channel 32-channel
Discrete 830nm laser diode

Throughput
28PPH 22PPH 16PPH
1030mm x 800mm, 2400dpi
Plate Sizes Max. 1163mm x 940mm
Min. 300mm x 400mm (300mm x 250mm is available)
Exposing Size Max.1130mm x 884mm
Media Type Positive thermal CTP plate
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi (option: 1200dpi)
Repeatability ±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface USB 2.0
Plate Loading Semi automatic
Net Weight 1200kg
Machine Size (WxLxH)mm 2127 x 1610 x 1058
Power Supply Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW
Environment Recommended: 21-25ºC, Max. 15-30ºC, Humidity: 40-70%










 Producing And Packaging



From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

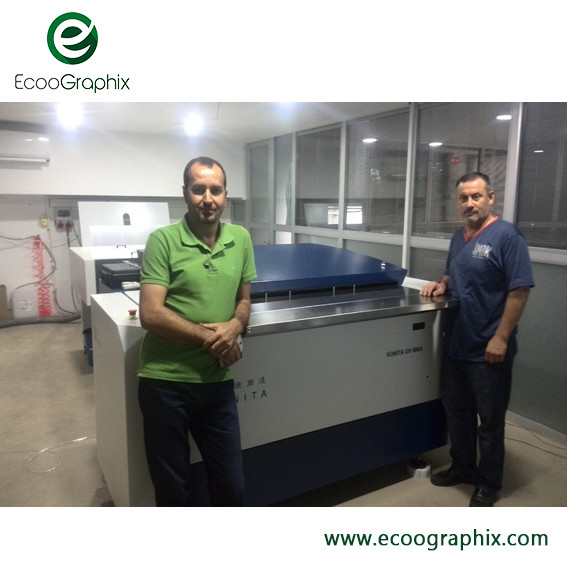

Automatic Thermal CTP Plate Machine / Platesetter Plate Making Machine 1

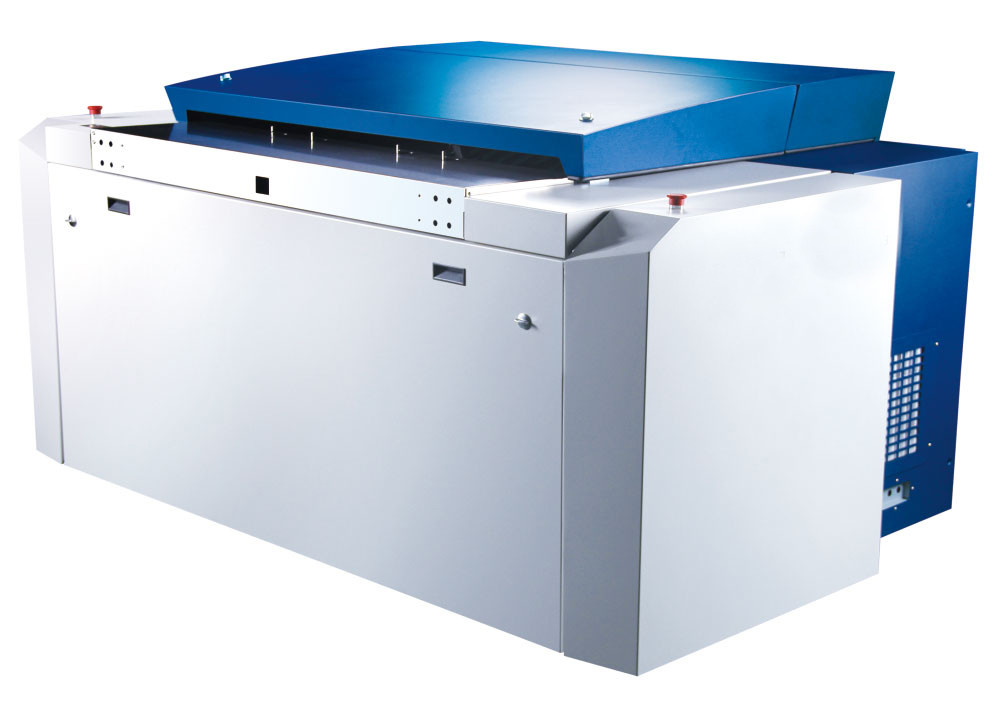

Automatic Thermal CTP Plate Machine / Platesetter Plate Making Machine 2

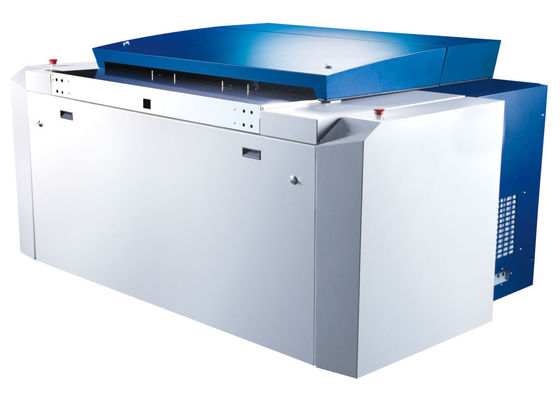

Automatic Thermal CTP Plate Machine / Platesetter Plate Making Machine 3

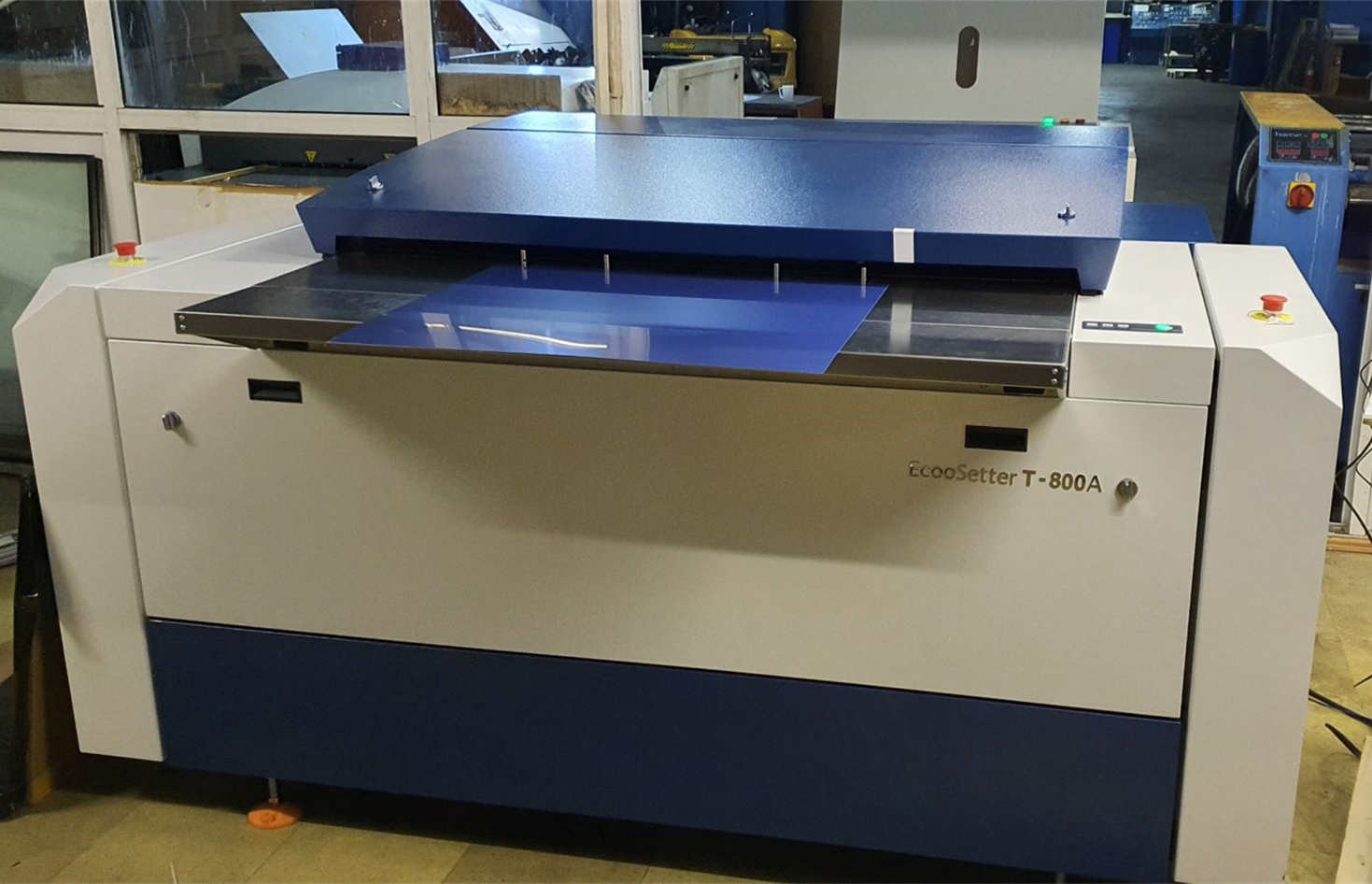

Automatic Thermal CTP Plate Machine / Platesetter Plate Making Machine 4

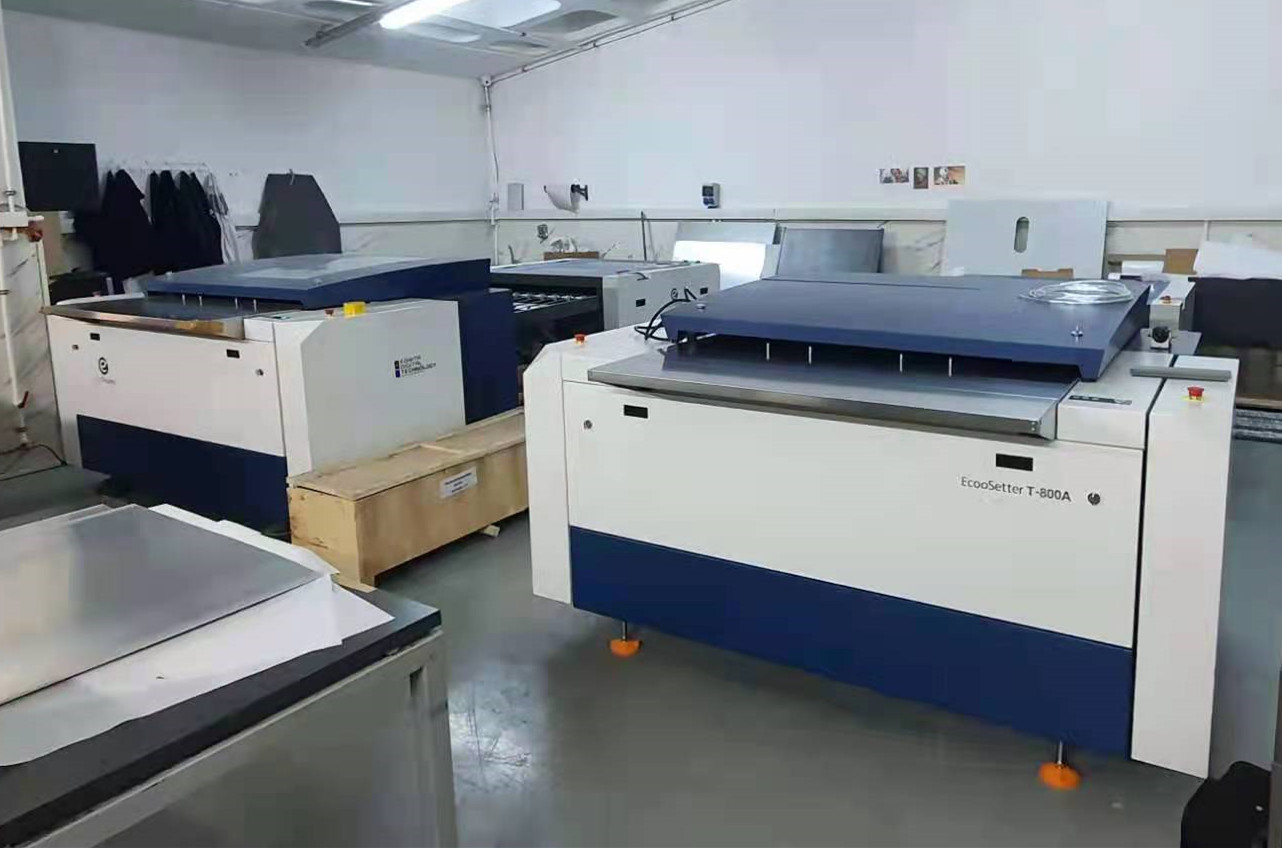

Automatic Thermal CTP Plate Machine / Platesetter Plate Making Machine 5












Certifications



Automatic Thermal CTP Plate Machine / Platesetter Plate Making Machine 6



Automatic Thermal CTP Plate Machine / Platesetter Plate Making Machine 7












 FAQ





1) What are your main products ?

Our main products are the Prepress CTP System (4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor), and Post Press Packing equipments (Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching machine, Book Binding machine and so on) and the Printing consumables(Offset Printing Plates, inks, printing blankets, Plate dot densimeter).

Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.




2) Where is your factory ?

Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!




3) What is your warranty for the CTPs ?

Three years' Laser Head and main spare parts for the CTPs, One year for the Processor.



4) What is the Lead Time?

Usually 20-30 days, and we will try our best to meet your demands.



5) Can you also supply the Workflow and RIP?

Yes, we can provide the Workflow Brain New and RIP Compose V9. Machine price does not include software.



6) What about the Installation and after-sales technician support?

Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.

These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
