High Speed Digital Label Die Cutting Machine 160 X 100 X 136CM

1 SET
MOQ
Negotiable
Price
High Speed Digital Label Die Cutting Machine 160 X 100 X 136CM
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Digital Label Die Cutting Machine
Application: Paper Packaging Materials, Stickers Products
Die Cutting Tool: Steel Blade
Max. Media Roller: Diameter 450mm
Cutting Media Width: 40-340mm
Max.Label Width: 10mm
Max.Label Length: 400mm (Segmentation Get To 1200mm)
Cutting Speed: Max.6m Per Minute (Depend On Label Shape And Size)
Cutting Blades: (Standard) Max.4 PCS
Slitting Blades: (Standard)Max.15PCS
Slitting Speed: Max. 100m Per Minute
Slitting Width: 10-310mm
Specification: 160*100*136CM
High Light:

High Speed Foil Die Cutting Machine

,

Digital Label Die Cutting Machine 450mm

,

10mm Label Die Cutter

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-VD320
Payment & Shipping Terms
Packaging Details: Standard Exporting Package
Payment Terms: L/C, T/T
Supply Ability: 500 Sets Per Year
Product Description

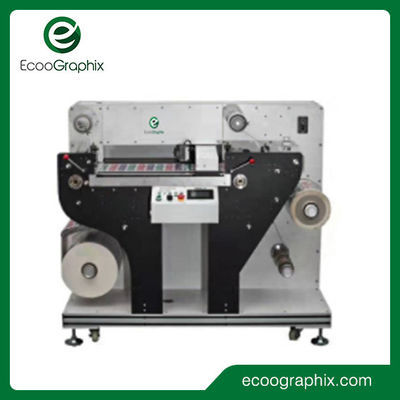

Ecoo Color DLP VD320 DIGITAL DIE CUTTING MACHINE



Product Description


Introduction:

The traditional label finisher not only designs are complex and price is very expensive, but also functions are lack. Now, EcooGraphix research and develop high-speed, easy to operate and multifunctional VD320 digital label die-cutter system. The high reliable and professional new model digital label die-cutter are designed for professional label printing company. VD320 digital label die-cutter system is collected laminating, die-cutting, slitting and rewinding on one, it is the best solution for label finishing system.

High Speed Digital Label Die Cutting Machine 160 X 100 X 136CM 0

Specification



                      Model                        Ecoo-VD320
Max. media roller diameter 450mm
Cutting media width 40-340mm
Max.label width 310mm
Min.label length 10mm
Max.label length 400mm (segmentation get to 1200mm)
Cutting speed max.6m per minute (depend on label shape and size)
Cutting blades (Standard) max.4 pcs
Slitting blades (standard)max.15pcs
Cutting tracking with tungsten steel rotary blades
Die-cutting technology 0.1mm (duplicate)
Cutting precision singe mark or double mark
Slitting speed Max. 100m per minute
Slitting width 10-310mm
Slitting precision 0.1mm
Machine size (W*D*H) 160*100*136CM
Machine weight 520kg
Power 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS
Warranty 1year (besides high consumable parts)
Options Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter


Software Features:



• Software can only open PLT format file
• It can choose the knife down point according to shapes
• Trajectory optimization is for perfect cutting

High Speed Digital Label Die Cutting Machine 160 X 100 X 136CM 1

Machine Spare Parts



High Speed Digital Label Die Cutting Machine 160 X 100 X 136CM 2



1. High precision feeding system:

Utilize double mark tracking sensors system, guarantee media feeding in regularly. You can choose internal edge and internal line tracking.



High Speed Digital Label Die Cutting Machine 160 X 100 X 136CM 3


2. Cold laminating

It has cold laminating function, your label will be bright and perfect.

High Speed Digital Label Die Cutting Machine 160 X 100 X 136CM 4

3. Digital die-cutting system

VD320 Digital label die-cutter utilize Servo motor driving, use tungsten steel blade, the high-speed get to 2meter per second. Design many cutting heads with patents, the cutting thickness get to 1mm, more fast, more reliable and more efficiency.

High Speed Digital Label Die Cutting Machine 160 X 100 X 136CM 5


4. Precision slitting system

Utilize rotary slitting mode, can install max.15 blades, high speed with 60m per minute, instead of traditional slitting

High Speed Digital Label Die Cutting Machine 160 X 100 X 136CM 6

5. The waste removing system

The precision machinery design can control the roller

More Details





High Speed Digital Label Die Cutting Machine 160 X 100 X 136CM 7



High Speed Digital Label Die Cutting Machine 160 X 100 X 136CM 8

FAQ




1. What are your main products?
We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.

2.Where is your factory?
Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.

3. What is your warranty?
Normally 1 year.

4. Can you also supply the software?
Yes

5. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
