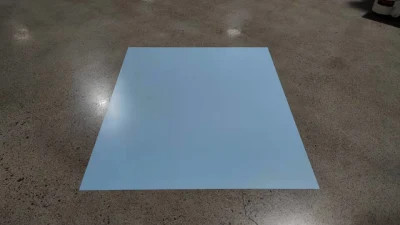

EcooGraphix Ecoo-G is a new, environmentally friendly, Development On Press CTP plate.
It can be run directly on a printing press after imaging, without a need for chemical processing.
Thickness: 0.15mm / 0.30mm
Spectrum scope: 800-850nm
Type: thermal negative processless plate
Low-energy imaging: 130~150mJ/cm²
Suitable for: high grade commercial and newspaper printing
Platesetter: Various dominant thermal platesetters in the market
Run Length: 100,000 impressions,actual run length depends on printing conditions
|Plate Type||Non-ablation thermal-negative type|
|Application||High grade commercial and newspaper printing|
|Substrate||Electrolyte graining and Anodized AL substrate|
|Thickness||0.15mm / 0.30mm|
|Platesetter||Various dominant thermal platesetters in the market|
|Low-energy imaging||130-150 mj/ m²|
|The period of latent image stabilization||≤7 days|
|Recommended screen method||1-99% @200 LPI AM or 20μm FM or mixture|
|The paper number of start-up||<50 sheets|
|Safety light||4 hours under yellow light; 1 hour under fluorescent lamp; Direct exposure under natural light is safe but not recommended.|
|Processing||Without processing, directly on press|
|Run Length||100,000 impressions, actual run length depends on printing conditions|
|Maximum short grain width||Maximum width 1280 mm|
|Photosensitive wave length||830 nm|
|Shelf life||12 months under recommended condition|
|Transportation||Packed in seal and stored by means of prevention from light, moisture, overheat and high humidity|
|Storage||Recommended condition: 18ºC-24ºC, 40%-50% RH.|
Comparing With The Plate Of Kodak Sonora XP
Applied parameters In Imaging Device
Packing and Producing
Q1: Can I get the sample?
A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.
Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.
Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM
Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
