Automatic Single Clamp Digital Print Binding Machine 400 Books/H

1 SET
MOQ
Negotiable
Price
Automatic Single Clamp Digital Print Binding Machine 400 Books/H
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Print-on-Demand Binding Machine
No. Of Clamps: 1
Max. Production Speed: 400 Books/H
Book Block Length: 120-370 Mm
Book Block Width: 100-300 Mm
Book Block Thickness: 1-60 Mm
Cover Length: 120-370 Mm
Cover Width: 220-620 Mm
Power Required: 11.5 Kw
High Light:

Digital Print Binding Machine

,

Single Clamp Print Binding Machine

,

Automatic Digital Binder 400 Books/H

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: Digital Robot 500C
Payment & Shipping Terms
Packaging Details: Standard Exporting Package
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description

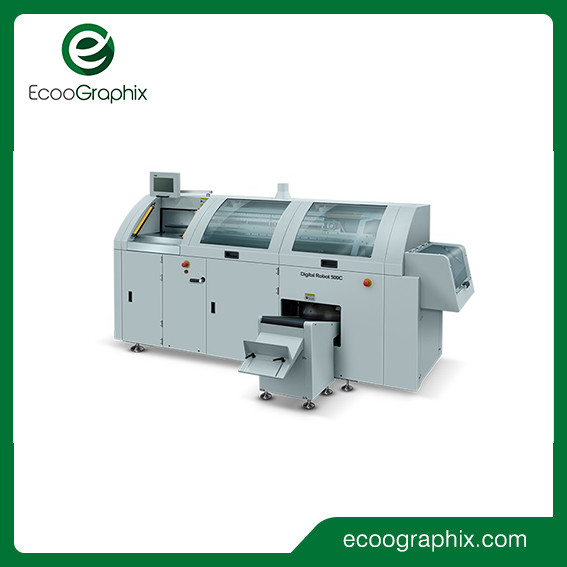

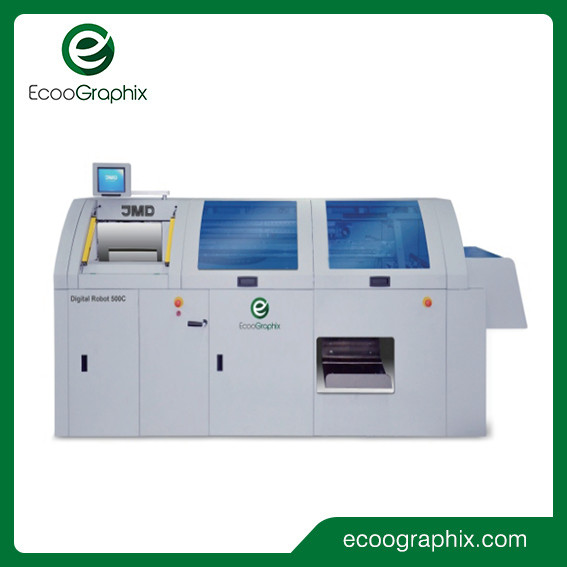

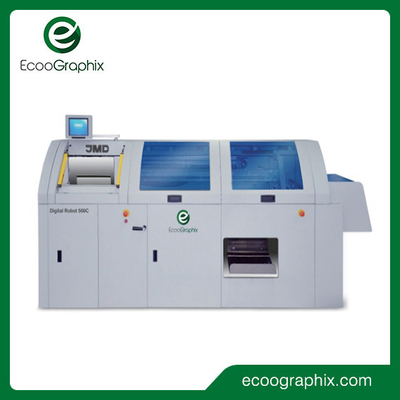

Digital Print-on-Demand Perfect Binder - Digital Robot 500C


Product Description




Brief Introduction


Digital Robot 500C is a fully automated single-clamp perfect binder with max speed up to 360 cycles/hour. It features fully automated set-up through touch screen or via barcode scanning, integrated thickness auto-measurement, short changeover time for various binding formats, interchangeable EVA and PUR system (option). Book of one production takes on a new level of convenience and stability.


Features
  • Integrated Auto Book Thickness Measurement: Simply put the book block in the pneumatic book clamp, book thickness will be automatically measured and the machine will finish all thickness relevant adjustment in just 5 seconds, which provides greater production efficiency for various binding formats.
  • Fast Automatic Changeover: Automatic job changeover can be accurately completed down to 5s for book thickness change and book formats at the fastest speed.
  • Independent Gluing Stations: The independent spine gluing station and side gluing station ensures accurate glue application to the spine and two sides of the book block for superior binding quality.
  • Optional PUR Gluing Station: User-oriented moveable glue tank design allows changeover between EVA and PUR glue application system in just minutes.
  • Designed for Industrial Production: Digital Robot 500C can run 24 hours x 7 days to assure ulitimate production need, thanks to the robust construction with European high quality standards.



Automatic Single Clamp Digital Print Binding Machine 400 Books/H 0



Specification




Machine Model Digital Robot 500C
No. of Clamps 1
Max. Mechanical Speed 400 books/h
Book Block Length (a) 120-370 mm
Book Block Width (b) 100-300 mm
Book Block Thickness (c) 1-60 mm
Cover Length (d) 120-370 mm
Cover Width (e) 220-620 mm
Power Required 11.5 kw



Automatic Single Clamp Digital Print Binding Machine 400 Books/H 1



Machine Layout




Automatic Single Clamp Digital Print Binding Machine 400 Books/H 2



Main Machine Parts

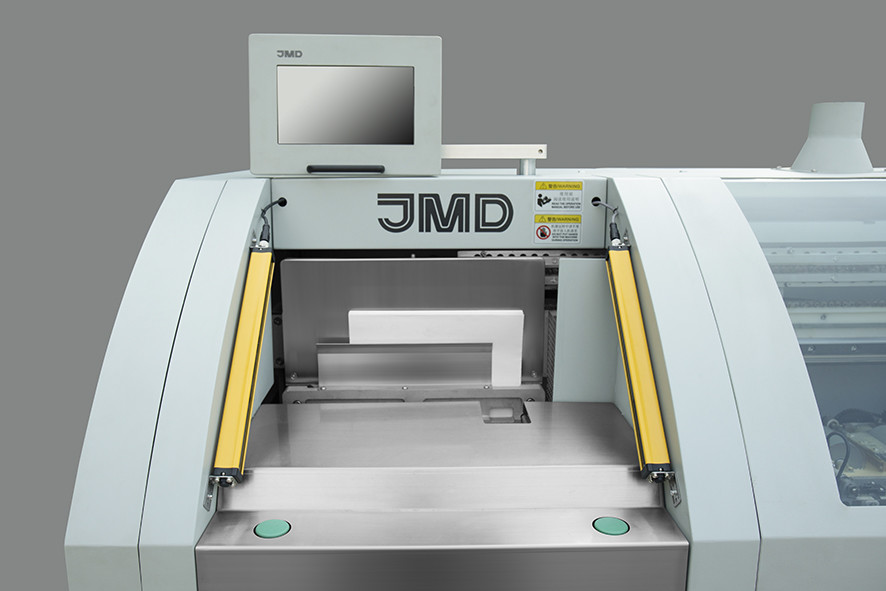

Touch Screen Control System

The icon-based 10-inch touch screen enables ease of operation. Inputting required book format and production parameters on the touch screen or via scanning barcode, the set-up will be automatically finished in 30s at the fastest speed. The control system can memorize 99 jobs and be retrieved as requested.



Automatic Single Clamp Digital Print Binding Machine 400 Books/H 3

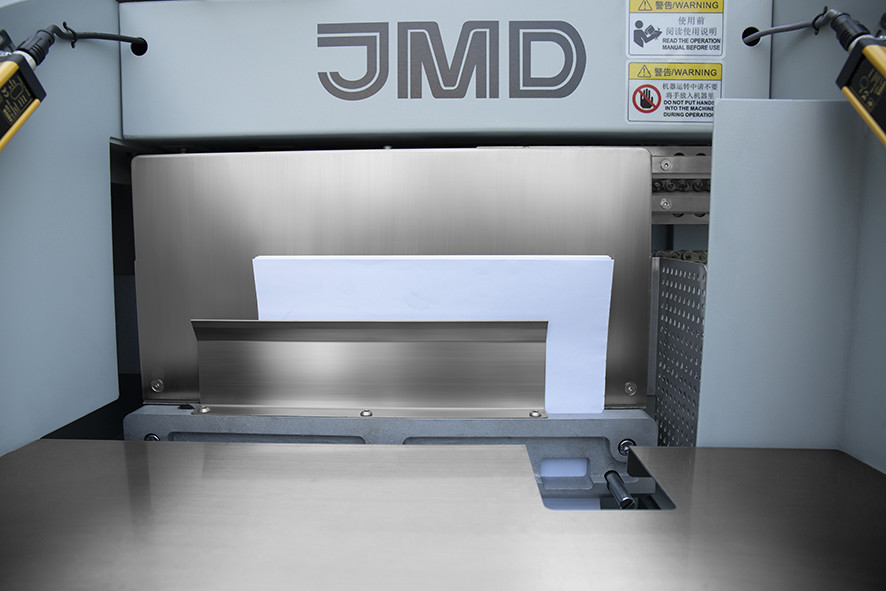

Penumatic Book Clamp

Simply put the book block in the pneumatic book clamps, book thickness will be automatically measured, and all revelvant work steps are set accordingly. The vibration unit aligns the book block precisely before the book clamps close. The double activation button and safety light curtain ensure high-safety operation.



Automatic Single Clamp Digital Print Binding Machine 400 Books/H 4

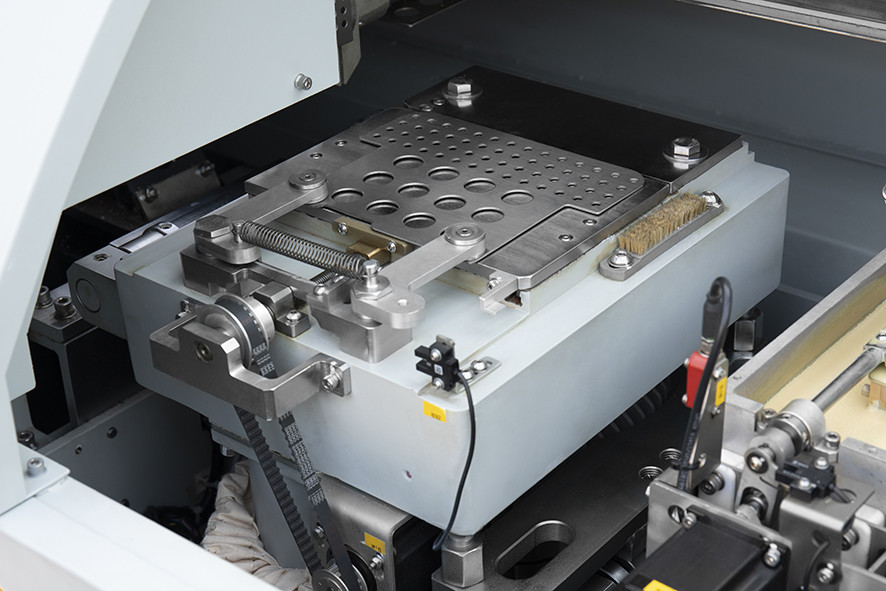

Milling Station

Step motor allows milling station opening width to auto adjust according to the detected thickness.
While Space-saving design integrated milling and notching, brushing. Operator can use switch handle to easily enable and disable milling as needed.



Automatic Single Clamp Digital Print Binding Machine 400 Books/H 5

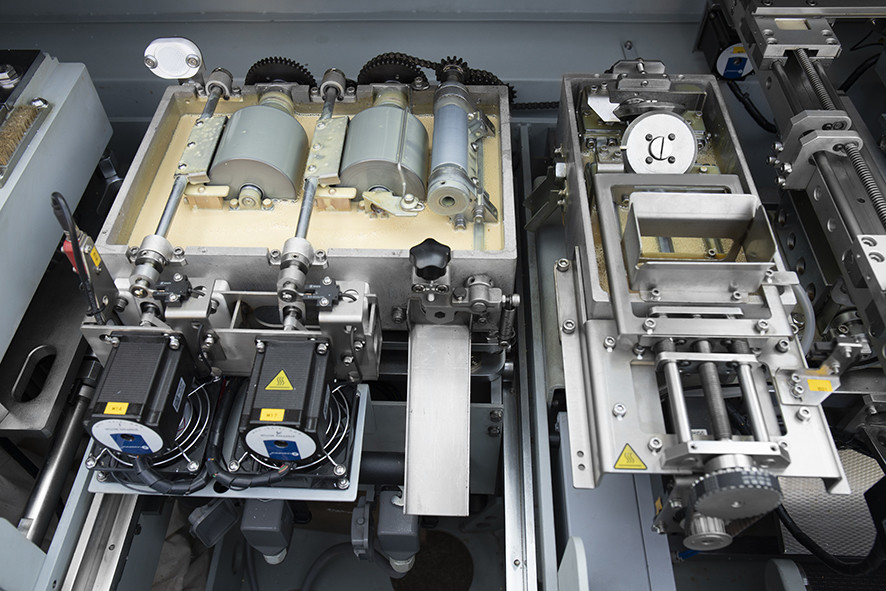

Moveable EVA Spine Gluing Station


Dual spine gluing rollers guarantee top binding quality. Spine gluing length and thickness are adjusted automatically and accurately. Changeover between EVA and PUR system can be easily completed in minutes.


Independent Side Gluing Station


Opening width of two side gluing rollers is automatically adjusted by step motor. Even and thin side glue is applied by the independent side gluing station with two application discs.



Automatic Single Clamp Digital Print Binding Machine 400 Books/H 6



Cover Feeding Station


Top in-feed cover feeder design significantly reduce drag marks. Cover scoring position is automatically adjusted according to the input thickness; Sensitive double-feed and miss-feed defection device ensure accurate feeding for every cover.



Automatic Single Clamp Digital Print Binding Machine 400 Books/H 7



Cover Feeding Station


Top in-feed cover feeder design significantly reduce drag marks. Cover scoring position is automatically adjusted according to the input thickness; Sensitive double-feed and miss-feed defection device ensure accurate feeding for every cover.



Automatic Single Clamp Digital Print Binding Machine 400 Books/H 8



Packing And Producing


Automatic Single Clamp Digital Print Binding Machine 400 Books/H 9







Automatic Single Clamp Digital Print Binding Machine 400 Books/H 10



Automatic Single Clamp Digital Print Binding Machine 400 Books/H 11



More details




Automatic Single Clamp Digital Print Binding Machine 400 Books/H 12

Automatic Single Clamp Digital Print Binding Machine 400 Books/H 13
