UV Glazing Coating Machine Spot And Overall High Speed For Paper

1SET
MOQ
Negotiable
Price
UV Glazing Coating Machine Spot And Overall High Speed For Paper
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: UV Glazing Coating Machine
Application: Paper Printed, Paperboard
Max.sheet Size: 1100X1450mm
Min.sheet Size: 350X460mm
Sheet Weight: 128-600GSM
Production Speed: 6200sheets/Hour
Power: 57kw(E) 47kw(W)
Coating Registration Accuracy: ±0.2mm
Weight: 9500kg
Dimension: 12230x3100x1844mm
High Light:

Overall Glazing Coating Machine

,

Paper UV Spot Glazing Machine

,

UV Spot Glazing Coating Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: Ecoo HIS-1450
Payment & Shipping Terms
Packaging Details: Standard Exporting Package: Polywood Carton
Payment Terms: L/C, T/T
Supply Ability: 500 Sets Per Year
Product Description

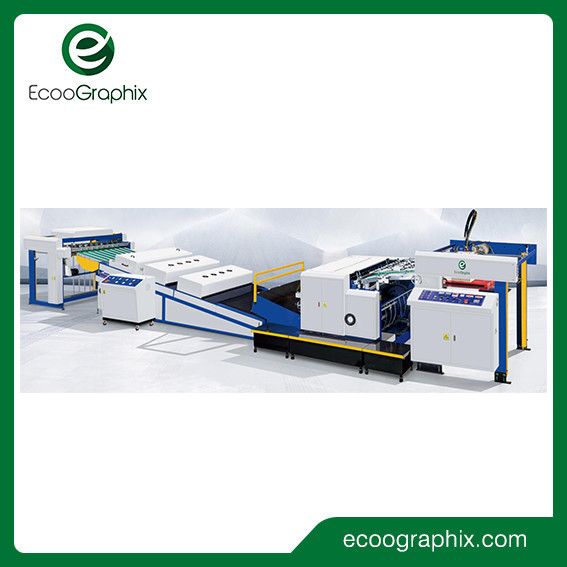

High Speed UV Coating Machine Spot and Overall ECOO HIS-1450





Product Description




Brief Introduction:

The HIS series of UV local glazing machine adopt the Bite-transferring structure and chain track design of offset printing pree. The drying section is a conveyor net structure, adopt the large diameter impression cylinder, so the finished oil film is very flat and even, accurate and bright. It can comprehensive think about both thick and thin papers, and can be used for both full UV and partial UV coating.

Specification



Model: Ecoo HIS0-1100/1280/1450



Max. Sheet Size: 1100x1100mm; 1100x1280mm; 1100x1450mm



Min. Sheet Size: 310X406mm; 350X460mm; 350X460mm



Max. Coating Size: 1090x1090mm; 1090x1270mm; 1090x1440mm



Sheet Thickness: 80-600gsm; 128-600gsm



Production Speed: 6800sheets/hour; 6500sheets/hour; 6200sheets/hour



Model Ecoo HIS-1100 Ecoo HIS-1280 Ecoo HIS-1450
Max.sheet size 1100x1100mm 1100x1280mm 1100x1450mm
MIN.sheet size 310X406mm 350X460mm 350X460mm
Max.coating size 1090x1090mm 1090x1270mm 1090x1440mm
Sheet thickness 80-600gsm 80-600gsm 128-600gsm
Coating registration accuracy ±0.2mm ±0.2mm ±0.2mm
Production speed 6800sheets/hour 6500sheets/hour 6200sheets/hour
Weight 8500kg 9000kg 9500kg
Dimension 12010x2779x1818mm 12230x2960x1844mm 12230x3100x1844mm
Power 50KW(E) 42KW(W) 54KW(E) 44KW(W) 57KW(E) 47KW(W)
Remark: Production speed depending on sheet weight, size and quality

UV Glazing Coating Machine Spot And Overall High Speed For Paper 0

Producing And Packaging



1. Feeder


Enlarged feeder with four sucking and six forwarding suckers and air blowing for spool can feed sheet easily and smoothly.


UV Glazing Coating Machine Spot And Overall High Speed For Paper 1


2. Front Side Lay Gauge

When sheet reaches front lay gauge, left and right pulling lay gauge can be used.

The machine can stop feeding immediately by sensor without sheet and release pressure to keep bottom roller under no varnish condition.



UV Glazing Coating Machine Spot And Overall High Speed For Paper 2

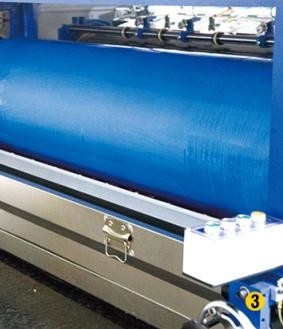

3. Varnish Supply

Steel roller and rubber roller with metering roller reversing and doctor blade design control by varnish consumption and volume to meet the demand of products and operate easily.

(Varnish consumption and volume are determined by LPI of ceramic anilox roller)


UV Glazing Coating Machine Spot And Overall High Speed For Paper 3

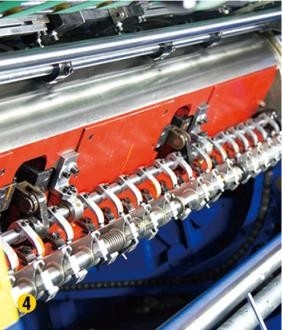

4. Transferring Unit

After sheet is transferred from pressure cylinder to gripper, air volume blowing for paper can support and reverse sheet smoothly, which can prevent sheet surface from being scratched.



UV Glazing Coating Machine Spot And Overall High Speed For Paper 4

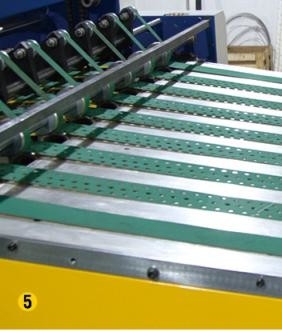

5. Conveying Unit

Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery.


UV Glazing Coating Machine Spot And Overall High Speed For Paper 5

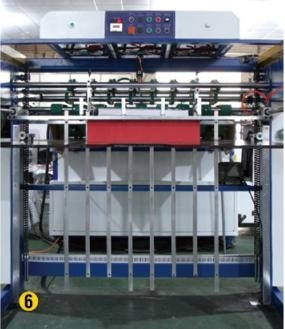

6. Sheet Delivery

Automatic pneumatic patting sheet controlled by photoelectric detecting sensor make sheet pile fall automatically and collect sheet neatly.

Electronic control can take out sheet sample safely and quickly for inspecting.



UV Glazing Coating Machine Spot And Overall High Speed For Paper 6


Producing And Packaging



UV Glazing Coating Machine Spot And Overall High Speed For Paper 7



UV Glazing Coating Machine Spot And Overall High Speed For Paper 8

UV Glazing Coating Machine Spot And Overall High Speed For Paper 9



FAQ



Q: What about the Installation and after-sales technician support?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
