Product Description
The automatic saddle stitching system Pearls-8000 provides a cost-effective solution from signature gathering, stitching to trimming.
The clearly arranged, compact design and central touch screen control allow the machine operator to monitor current production conveniently.
Simple operation combined with the space saving layout makes this machine an ideal choice for commercial runs.
Advantage
-Easy operation with touch screen control and large viewing windows
-Space saving layout with simple operation
-Reliable feeding, stitching and trimming quality
-Fast make-ready by position indicators
Specification
| Model | Pearls-8000 |
| Max. Mechanical Speed | 8000cycles/h |
| Max. Untrimmed Book Size (a*b) | 365*305mm |
| Min.Untrimmed Book Size (a*b) | 110*85mm |
| Max. Trimmed Book Size (a*b) | 360*300mm |
| Min. Trimmed Book Size (a*b) | 105*65mm |
| Max .SchngThckessc | 10mm |
| Power Required | 12.5kw |
| Machine Weight | 3880KG |
| Machine Dimensions (L*W*H) | 8300*4500*1400mm |
Main Spare Parts
1. Twin Feeder
Up to four compact twin feeders with large capacity flat pile hoppers can be equipped to ensure large and consistent output. Signatures with low/high folio laps or even laps in a wide range of formats can be opened by grippers or vacuum system. 1:1 or 1:2 speed modes can be chosen.
2. Folder Feeder
After the cover is scored along a predetermined line, it is folded along the scored line, fed onto the gathering chain and transported to the saddle stitcher.
3. Stitching Section
Up to four Deluxe stitching heads can be mounted on the Pearls-8000. Honher stitching heads are offered as an option. During operation the stitching heads are traveling back and forth together with the signatures.
4. Three-knife Trimmer
The three-knife trimmer is quick and easy to set up using handwheels with position indicators. Products are trimmed precisely and reliably right from the start-up. First the head and foot is trimmed, and then the book is delivered to the front cut knife where a precise side cut is made.
5. Stream Delivery
The completely trimmed books are gently carried by the transport belt into the stream delivery process.

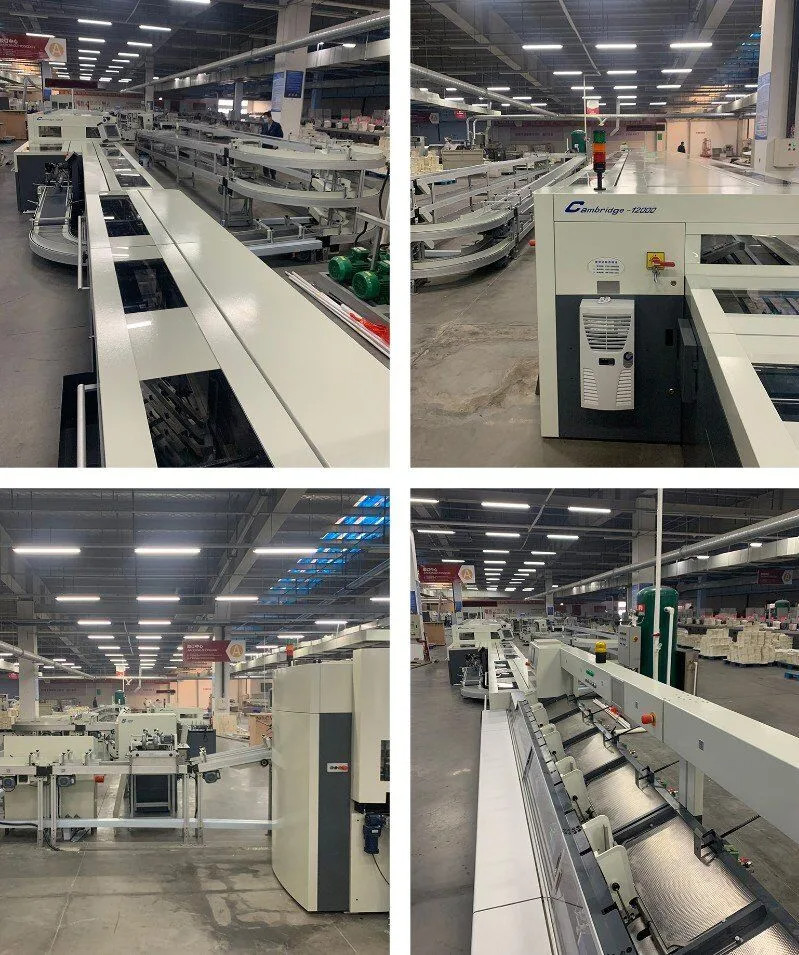

Producing And Packaging
Certificates
FAQ
1. what about the payment term?
Normally, 30% deposit, 70% before shipping, or LC at sight.
2. What is the Lead Time ?
Usually 30-40 days, and we will try our best to meet your demands.
3. What about the Installation and After-sales technician support ?
Our engineers are all can go to help the installation and provide the necessary training. The buyer should take the round air tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
4.Do you have any other products?
We also offer other postpress machines for package and label printing companies, like UV coating machine, laminating machine, window patching machine, carton inkjet printing machine and digital label printing machine, thermal paper slitting machine.
