Ecoographix Automatic Book Binding Machine Online Saddle Stitching

1 SET
MOQ
Negotiable
Price
Ecoographix Automatic Book Binding Machine Online Saddle Stitching
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic Online Saddle Stitching Book Binding Machine
Type: Saddle Stitching Book Binding Machine
Classification Of Punching Machine: Automatic Punch
Classification Of Financial Binding Machine: Automatic
Classification Of Wire Binding Machine: 21 Hole
Thickness: ≤20mm
High Light:

Online Saddle Stitching Book Binding Machine

,

Ecoographix Book Binding Machine

,

20mm Book Binding Press Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: Digital Robot 2000A
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: About 30 Days
Payment Terms: L/C, T/T
Product Description



Product Description




Brief Description

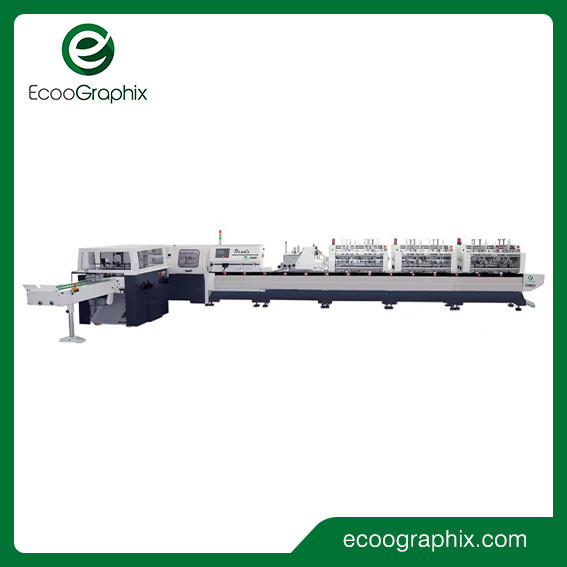

The automatic saddle stitching system Pearls-8000 provides a cost-effective solution from signature gathering, stitching to trimming. The clearly arranged, compact design and central touch screen control allow the machine operator to monitor current production conveniently. Simple operation combined with the space saving layout makes this machine an ideal choice for commercial runs.


Advantage
-Easy operation with touch screen control and large viewing windows
-Space saving layout with simple operation
-Reliable feeding, stitching and trimming quality
-Fast make-ready by position indicators



Ecoographix Automatic Book Binding Machine Online Saddle Stitching 0



Specification




Model Pearls-8000
Max. Mechanical Speed 8000cycles/h
Max. Untrimmed Book Size (a*b) 365*305mm
Min.Untrimmed Book Size (a*b) 110*85mm
Max. Trimmed Book Size (a*b) 360*300mm
Min. Trimmed Book Size (a*b) 105*65mm
Max .SchngThckessc 10mm
Power Required 12.5kw
Machine Weight 3880KG
Machine Dimensions (L*W*H) 8300*4500*1400mm



Ecoographix Automatic Book Binding Machine Online Saddle Stitching 1

Machine Spare Parts




1. Twin Feeder
Up to four compact twin feeders with large capacity flat pile hoppers can be equipped to ensure large and consistent output. Signatures with low/high folio laps or even laps in a wide range of formats can be opened by grippers or vacuum system. 1:1 or 1:2 speed modes can be chosen.



Ecoographix Automatic Book Binding Machine Online Saddle Stitching 2



2. Folder Feeder
After the cover is scored along a predetermined line, it is folded along the scored line, fed onto the gathering chain and transported to the saddle stitcher.



Ecoographix Automatic Book Binding Machine Online Saddle Stitching 3

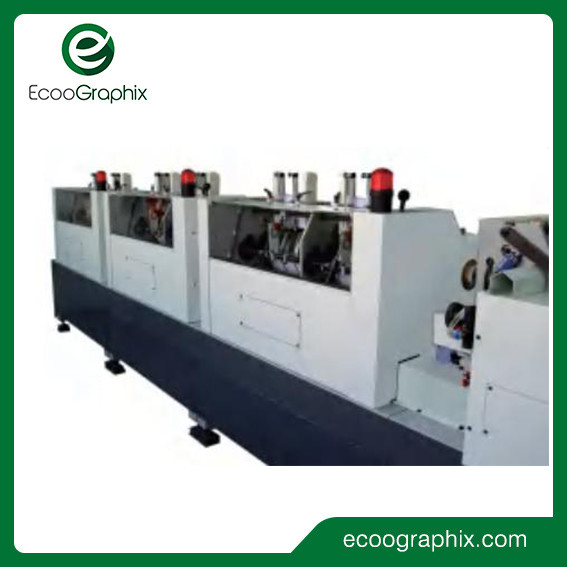

3. Stitching Section
Up to four Deluxe stitching heads can be mounted on the Pearls-8000. Honher stitching heads are offered as an option. During operation the stitching heads are traveling back and forth together with the signatures.



Ecoographix Automatic Book Binding Machine Online Saddle Stitching 4



4. Three-knife Trimmer
The three-knife trimmer is quick and easy to set up using handwheels with position indicators. Products are trimmed precisely and reliably right from the start-up. First the head and foot is trimmed, and then the book is delivered to the front cut knife where a precise side cut is made.



Ecoographix Automatic Book Binding Machine Online Saddle Stitching 5

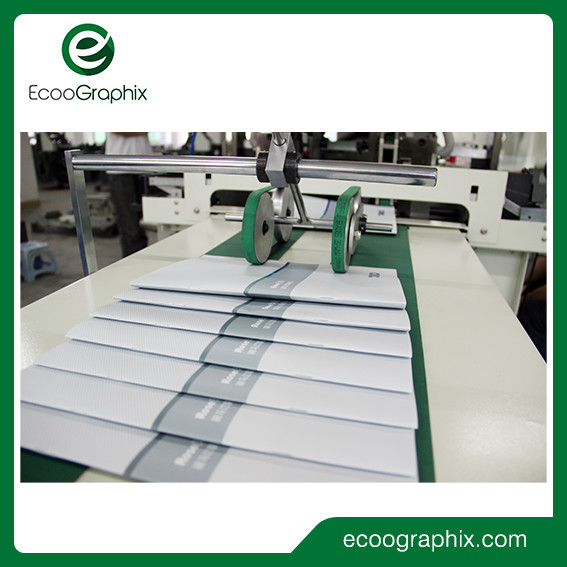

5. Stream Delivery
The completely trimmed books are gently carried by the transport belt into the stream delivery process.



Ecoographix Automatic Book Binding Machine Online Saddle Stitching 6

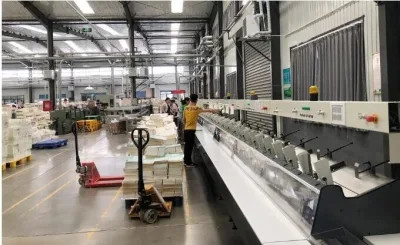

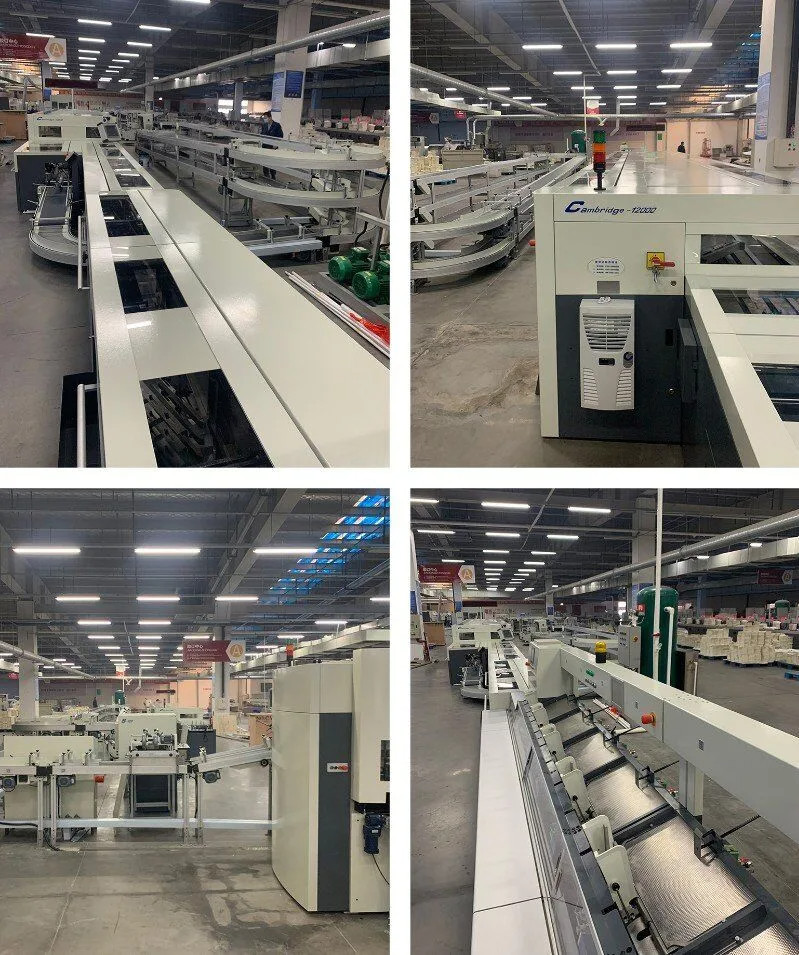

Producing And Packaging




Ecoographix Automatic Book Binding Machine Online Saddle Stitching 7



Ecoographix Automatic Book Binding Machine Online Saddle Stitching 8



Ecoographix Automatic Book Binding Machine Online Saddle Stitching 9

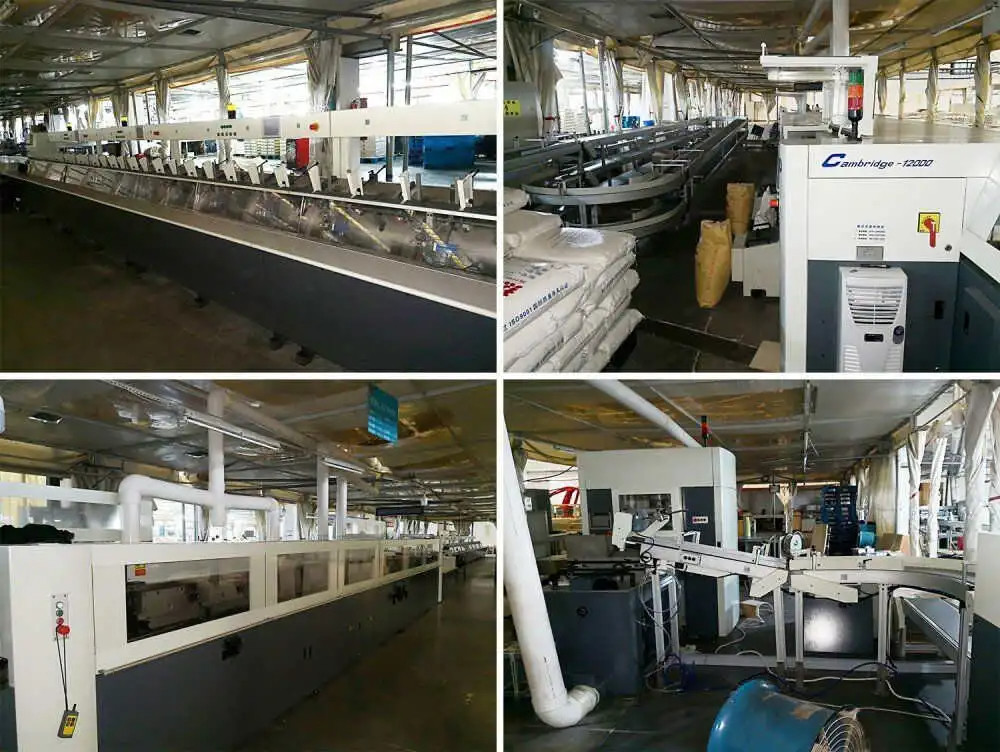

More details




Ecoographix Automatic Book Binding Machine Online Saddle Stitching 10

Ecoographix Automatic Book Binding Machine Online Saddle Stitching 11
