Automatic Thermal Foil Stamping Die Cutting Machine With Steel Blade
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic Foil Stamping & Die-Cutting Machine
Warranty: 1 Year
Imprinting Type: Platen
Placing Form Of Template: Horizontal
Die Cutting Tool: Steel Blade
Automatic Grade: Automatic
Application: Paper Packaging Materials, Stickers Products, Heat Insulation Material
Maximum Sheet: 790X560mm
Minimum Sheet Size: 310X210mm
Max. Die Cutting Size: 760X520mm
Max. Stamping Size: 760X525mm
Inside Chase Siz: 780X530mm
Height Of Cutting Rules: 23.8mm
Inter-Platen Distance: 51.5mm
Max. Machine Speed: 5500S/H
Max. Stamping Speed: 5000S/H
The Thickness Of Stamping Plate: 5(Optional 4+1)mm
Weight Of Machine: 8500KG
High Light:

Thermal Foil Stamping Die Cutting Machine

,

Horizontal Foil Stamping Die Cutting Machine

,

Automatic Hot Foil Printing Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-790
Payment & Shipping Terms
Packaging Details: Wooden Case
Payment Terms: L/C, T/T
Supply Ability: 500sets/Year
Product Description

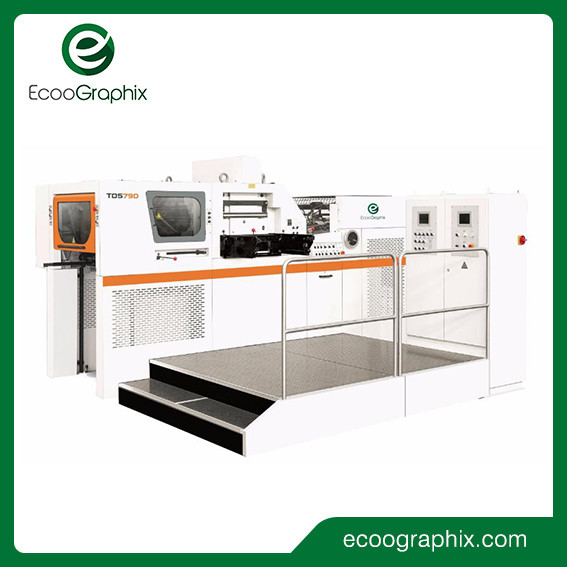

EcooGraphix 790 Automatic Die Cutter With Thermal Foil Stamping





Product Description


Brief Introduction:

Ecoo-790 automatic die cutting & hot foil printing machine is consisted of feeding unit, main unit and delivery unit.
Non-stop feeding and delivery, electrical control system are available with the machine.
The inserter, pre-stack, stripping unit, BECKER pump and thermal embossing are all for you options.
It is used for automatic stamping roll material, after printing, lamination.

Application:
Suitable for the production of paper boxes, paper cups, wrapping labels, cardboard embossing, portable paper bags, paper covers, PVC, various plastics, etc.

Specification






Model ECOO-TDS790
Max. Sheet Size(mm) 790x560
Min. Sheet Size(mm) 310x210
Max. die cutting size(mm) 760x520
Max. stamping size(mm) 760x525
Inside chase size(mm) 780x530
Height of cutting rules(mm) 23.8
Inter-platen distance(mm) 51.5
Stock range Min. Sheet 90g/m², Cardboard 157-2000g/m²;E, B flute
Min. gripper margin(mm) 6
Max. machine speed(s/h) 5500
Max. stamping speed(s/h) 5000
The thickness of stamping plate(mm) 5(optional 4+1)
Longitudinal feeding shafts 3
Transversal feeding shafts 2
Feeding pile height(mm) 1200
Delivery pile height(mm) 950
Electric heating system 8 zones
Min. foil width(mm) 40
Foil reel core(mm) 25(1") 76(3")
Rated power(kw) 26
Overall dimension(mm) 3855x3650x2210
Weight of machine(kg) 8500



Automatic Thermal Foil Stamping Die Cutting Machine With Steel Blade 0



Machine Spare Parts List




Feeding/ delivery unit:

1. Automatic feeder rolls back quickly to give easy access for make ready and locks up in seconds
2. One feeding bar for suitable paper infeed
3. One delivery hand with 6 delivery fingers, adjustable according to paper size
4. Automatic elevated feeding pile


Main machine:

1. Delivers accurate, adjustable impression for foil stamping, embossing and die cutting
2. Two horizontal, cross pull foil feeds are fully programmable to provide maximum versatility and excellent foil economy
3. Air blast system helps to separate foil from stock on critical jobs
4. Micrometer adjustment on side guide and front guide
5. Adjustable dwell on impression
6. Honeycomb base is convenient for loading
7. Missed sheet detector
8. 4 heating zones with digital control
9. 24 hours preheating device
10. Control system with touch screen HMI, PLC and servo system

Videos on Youtube: https://youtu.be/7CTccHcRUIc



Advantages


• Transmission of main unit adopt imported A/C frequency converter control, start up and stop of the machine are controlled by means of imported air clutch
• Running of the whole machine is controlled by PLC. Interface touch-screen for monitoring machine running condition, trouble indications and their corresponding shooting ways. This is more operator-friendly
• Independent temperature control to each heating zone makes operation temperature of the machine more equal and stable. Function of timing pre-heating can enhance working efficiency greatly


Packaging & Shipping




Automatic Thermal Foil Stamping Die Cutting Machine With Steel Blade 1



Automatic Thermal Foil Stamping Die Cutting Machine With Steel Blade 2



Automatic Thermal Foil Stamping Die Cutting Machine With Steel Blade 3



Automatic Thermal Foil Stamping Die Cutting Machine With Steel Blade 4



Automatic Thermal Foil Stamping Die Cutting Machine With Steel Blade 5



More Details




Automatic Thermal Foil Stamping Die Cutting Machine With Steel Blade 6



Automatic Thermal Foil Stamping Die Cutting Machine With Steel Blade 7

FAQ

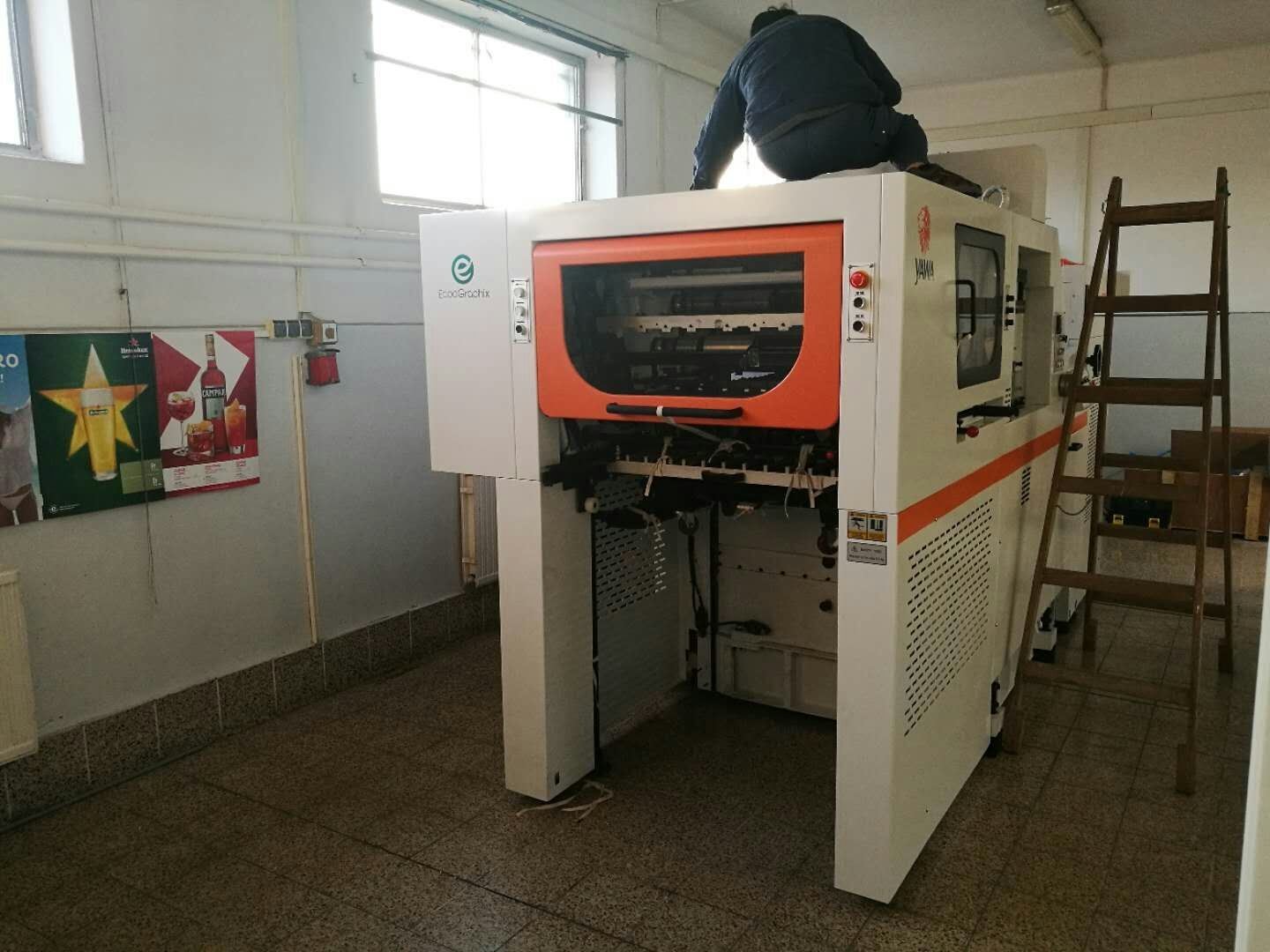

Q: What about the Installation and after-sales technician support?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
