High Speed Thermal CTP Manual Offset Printing Machine T 800 Series

High Speed Thermal CTP Manual Offset Printing Machine T 800 Series
Features Gallery Product Description Request A Quote
Imaging System: 64-channel; 48-channel; 32-channel
Throughput(plates/hour): 1030mm X 800mm, 2400dpi: 28; 22; 16
Repeatability: ±5µm (Continuous Exposing For Four Times Or Above On The Same Plate With A Temperature Of 23℃ And Humidity Of 60%)
Power Supply: Single-phase: 220AC, +6%,-10%, Power Consumption: 4KW
Plate Size: Max. 1163mm × 940mm, Min. 400mm × 300mm
Environment: Recommended: 21-25℃, Max.15-30℃, Humidity: 40-70%
Resolutions: 2400dpi
Weight: 900 KG
High Light:

CTP Manual Offset Printing Machine


T 800 Series Offset Printing Machine


High Speed CTP Plate Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: EcooSetter T-800 F/S/E
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 20 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description


  Thermal CTP T-800 Series Platesetter Manual Offset Printing Machine

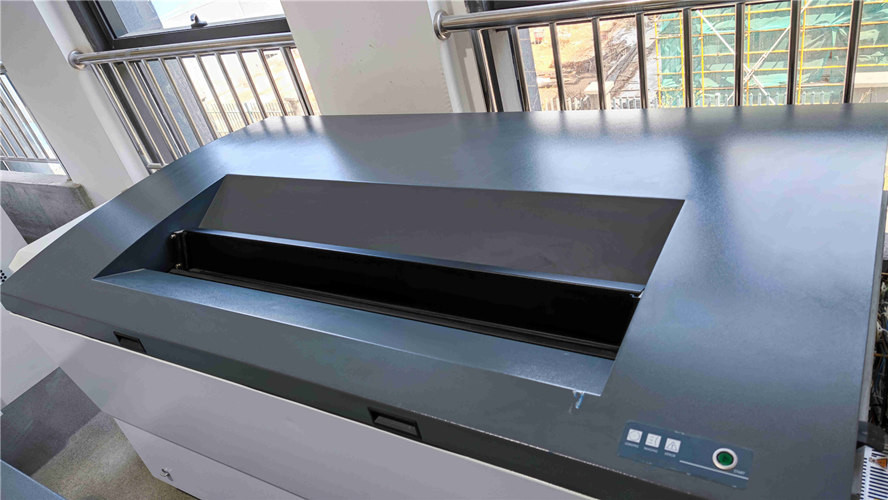

High Speed Thermal CTP Manual Offset Printing Machine T 800 Series 0






EcooGraphix Thermal CTP (Computer To Plate) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can Output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.


By the EcooGraphix CTP, the customer can get Excellent output image quality, highly reliable stability, less space occupied with more flexibility.


EcooGraphix T-800series thermal CTP are for A1 or B1 paper size newspaper or commercial printing with the output speed 16PPH to 28PPH. The CTP is operated by manual, very easy to use.






Maximum size of plate: 1,163×940mm


Features: Less manpower, high stability and perfect output quality


UV plate and thermal plate are available for you to lower production cost.






EcooSetter T-800 Series Thermal CTP Specifications
Model T-800F T-800S T-800E
Exposing Method External Drum
Imaging System 64-channel 48-channel 32-channel
  Discrete 830nm laser diode


28 plates/hour 22 plates/hour 16 plates/hour
1030mm x 800mm, 2400dpi
Plate Size Max. 1,163×940mm, Min. 300×400mm
Media Type Positive 830nm thermal CTP plate
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Repeatability ±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23℃ and humidity of 60%)
Interface USB2.0/ USB3.0( USB2.0 is recommended )
Plate Loading Manual
Net Weight 900 KG
Machine Size 2,320 × 1,080 × 960 mm( L×W×H )
Power Supply Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW
Recommended: 21-25℃, Max.15-30℃, Humidity: 40-70%




 Major Highlights


1) Superior dot quality reproduction proven by worldwide market:

1%-99% dot reproduction

Up to 250lpi screening, 2400 dpi or 1200dpi optional


2) Fully qualified: for any thermal non-process plate and process plates.


3) Robustness and simplicity: robust machine and easy to use. User friendly and simple design to avoid human error.


4) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany


5) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)


6) Long warranty of the machine:

3 years warranty (free replacement of all parts)

Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.


7) Guaranteed Service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved.

Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.


8) Proven Worldwide market leader:

Over 6000 units installed worldwide over past 10 years

USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.

Turkey: 35 units installed in Turkey by Esen Graphics





Producing and Packaging



High Speed Thermal CTP Manual Offset Printing Machine T 800 Series 1


High Speed Thermal CTP Manual Offset Printing Machine T 800 Series 2


High Speed Thermal CTP Manual Offset Printing Machine T 800 Series 3


High Speed Thermal CTP Manual Offset Printing Machine T 800 Series 4







High Speed Thermal CTP Manual Offset Printing Machine T 800 Series 5


High Speed Thermal CTP Manual Offset Printing Machine T 800 Series 6







 Q1: What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset printing blankets, Postpress Packing equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.




 Q2: Where is your factory ?

A: Our CTP machine factory is in Hangzhou city, which is about 1.5 hour by train from Shanghai. You are warmly welcomed to visit our factory!




 Q3: Is there any certification for your CTP machine ?

A: Yes, all our CTP machines have been certified by SGS and CE.




 Q4: Can you also supply the Workflow and RIP ?

A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.




 Q5: What about the Installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
