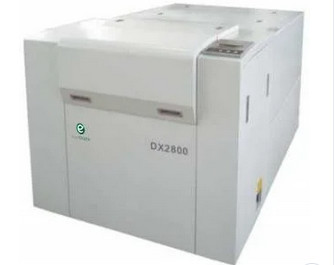

Roll CTF Computer To Film Imagesetter Machine For Two Year Warranty

1 set
MOQ
usd 35000 per set
Price
Roll CTF Computer To Film Imagesetter Machine For Two Year Warranty
Features Gallery Product Description Request A Quote
Features
Specifications
Machine: Imagesetter
Model: DX2800
Resolution: 1500dpi-4000dpi
Laser Head: Semiconducter Lasers
Max Format: 940*660
Applies Film: HeNe Red Laser Sensitive, Hard Flange Film Roll
High Light:

CTF Film Imagesetter Machine

,

Roll CTF Imagesetter

,

Computer To Film Imagesetter

Basic Infomation
Place of Origin: China
Brand Name: ecoographix
Certification: ISO, CE
Model Number: DX2800
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 400 sets per year
Product Description

Product Description



An imagesetter is a high resolution output device that can transfer electronic text and graphics directly to film. Then transfer the image to CTCP plate or PS plate. Apply the plate onto press machine for commercial printing.
Graphic Arts Film Laser Imagesetter Ctf Computer to Film Machines

Specification



Laser Imagesetter
Model DX1800 DX2800 DX4800 DX2000
Film dimensions(mm) 1320mm/ 1120mm/ 940mm * 914mm / 760mm / 660mm 940mm/ 812mm * 660mm - 508mm 635mm * 457mm 2000mm * 1200mm (optional)
Scanning resolution 1500dpi---4000dpi (optional) 600dpi---4000dpi (optional)
Scanning mode External drum, broad band laser scanning with high speed
Repeatability Precision ± 0.01mm ± 0.02mm
Operation mode Full automatic, 60m roll films with film processor, without dark room Half automatic, single piece of film loading, with dark room
External dimensions 2710mm*1600mm*1160mm 2580mm*1360mm*1180mm 2390mm*1060mm*1050mm 2050mm*1040mm*1240mm


Feature: This series feature for its high precision, full automatic, 60m roll film on-line laser imagesetter without any dark room. This machine works with advantages of full automatic operation in whole process, accurate dot recovery and high repeatability and so on. It is the ideal choice for large plate making center, newspaper printing, can printing and ceramic industry.



Packaging & Shipping





Roll CTF Computer To Film Imagesetter Machine For Two Year Warranty 20Roll CTF Computer To Film Imagesetter Machine For Two Year Warranty 21Roll CTF Computer To Film Imagesetter Machine For Two Year Warranty 22








Certifications

Roll CTF Computer To Film Imagesetter Machine For Two Year Warranty 26Roll CTF Computer To Film Imagesetter Machine For Two Year Warranty 27


FAQ

1. What are your main products ?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor , Offset Plates ,inks , blankets , postpress Packing equipments and so on.

There are over 3000sets CTPs installed worldwide. Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South Africa and so on are very pleased with our Technician Support service and product performance.


2. Where is your factory ?
Our CTP/CTF machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!

3. What is your warranty for the CTFs ?
Two years

4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose.

6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
