Vertical PS / CTP Plate Baking Oven Machine Hot Wind Circulation 380V

1 set
$7800 per set
Vertical PS / CTP Plate Baking Oven Machine Hot Wind Circulation 380V
Features Gallery Product Description Request A Quote
Machine Type: PS Plate Baking Machine
Model: KYHL Series
Temparature Range: 50C-280C
Power: AV 380V 50/60HZ 60A
Max. Plate Size: 1450mm*1200mm
High Light:

CTP Plate Baking Oven


PS Plate Baking Oven


Vertical CTP Plate Baking Machine

Basic Infomation
Place of Origin: China
Brand Name: ecoographix
Certification: ISO, CE
Model Number: KYHL series
Payment & Shipping Terms
Packaging Details: seaworthy wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per year
Product Description


Brief introduction


KYHL Vertical PS Plate baking machine (High-Temperature Oven) is designed to bake the traditional PS plate and CTP high sensitive plate. in order to improve the printing quantity and prolong the run length of plate, considering super long some printing jobs. By baking plate, the PS plate's run length could inCrease by 3-5 times.

This model has 3 format options. Please find more details in below table.

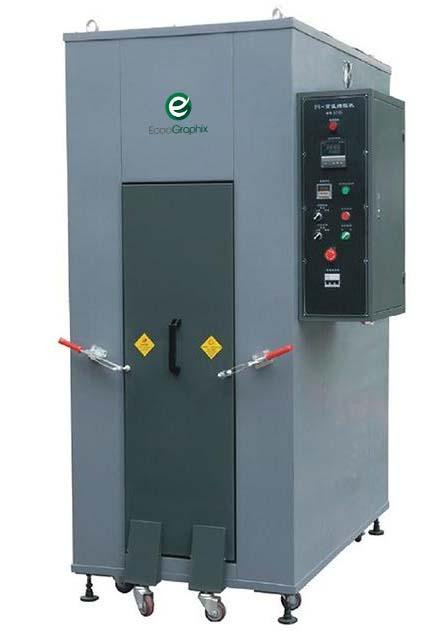

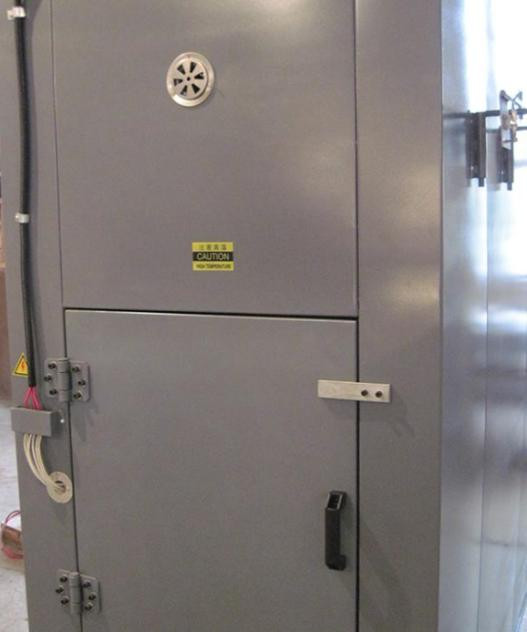

Vertical PS / CTP Plate Baking Oven Machine Hot Wind Circulation 380V 0Vertical PS / CTP Plate Baking Oven Machine Hot Wind Circulation 380V 1



1. Steady hot wind circulation, average baking temperature on plate. Two separate temperature control system could avoid the breaking down for any single fault.Timing starting/shutting equipment, whole sealing machine case design, avoid the hot air running out.

2. Fine plate locking equipment, the plate can be taken out conveniently.

3. Automatic alarm when the roasting is over, accurate temperature control,fine heat insulationsystem, plate do not bend.

Technical data


Vertical Plate Baking Machine
Model KYHL1100 KYHL1300 KYHL1450
Max. plate size(mm) 1100 x 850 1300x 1100 1450 x 1200
Setting plate quantity 4 piece / 8 piece
Temperature control area 50C-280C
Power supply AV 380V 50/60HZ 60A
Heating efficiency 12KW 15KW 15KW
Net weight 550kg 600kg 800kg
Dimension(mm) 1650x1280x2250 1770x1280x2250 2200x1280x2450


1. What are your main products ?
Our main products are the Prepress CTP System (4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor), and Post Press Packing equipments (Laminating Machine, Foil Stamping and Die Cutting Machine, Paper Box Window Patching machine, Book Binding machine and so on) and the Printing consumables(Offset Printing Plates, inks, printing blankets, Plate dot densimeter) .
Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
You can get the Pre-press and Post Press equipments and consumables all in one and no worry about the after-sales service from our company.

2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!

3. What is your warranty for the machine ?
Normally one year.

4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.

5. More products we Ecoographix offered.
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.
These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
