CTP Plate Processor Environmental Wide Format Developing Machine

1 set
CTP Plate Processor Environmental Wide Format Developing Machine
Features Gallery Product Description Request A Quote
Min Width: 280mm In Width
Plate Thickness: 0.15-0.4mm
Processing Speed: Adjustable, 400-1000 Mm/miniute
Temperature: 10-45 Degree
Automatic Level: High Automatic
Electricity: 220v Single Phase 50-60 Hz
High Light:

Wide Format Developing CTP Plate Machine


CTP Wide Format Developing Machine


0.4mm CTP Plate Machine

Basic Infomation
Place of Origin: China
Brand Name: Ecoographix
Certification: ISO, CE
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 20-25 days
Payment Terms: L/C, T/T
Supply Ability: 2000 set per year
Product Description


Product Description

    Model: ECOO P-900/ 1150/ 1250/ 1500

Regardless of the PS plate or the CTP plate, a processing machine is required for processing the plate after the exposure is completed. EcooGraphix CTP Processors can be used with Offline/ Online Thermal CTP or CTCP or UV-CTP platesetters, such as Kodak, Screen, Agfa, Creo, Amsky or Cron CTP machines.




Ecoo Processors Series
Model P-900 P-1150 P-1250 P-1500
Page Size 280-860 mm 280-1100 mm 280-1200 mm 290-1500 mm
Plate Thickness 0.15-0.4mm
Processing Speed Speed adjustable(10 - 60 seconds) 400 - 1000mm/minute
Temperature 10 to 45 ºC can be adjusted (automatic temperature control, cooling system)
Developing Capacity 46L 58L 70L 78L
Drying Temperature 20-65 ºC can be adjusted
Electricity Requirement 220 V (208 V - 240 V) single-phase 50-60hz
Working Power 4.5KW 5KW 5.5KW 6.5KW
Weight 355kg 420kg 512kg 600kg
Machine Size 1420 x 1460 x 1280mm




-The excellent overall design ensures the development effect, clear outlets, stable product performance and strong reliability.

-The development temperature and development time are precisely controlled to meet the washing requirements of various plates and potions, and the application range is wide.

-The water-saving effect is remarkable. The precise control of the washing time and the scientific design of the spraying method can save 80% of water.

-Significant energy saving in drying, uniform layout temperature (comparable effect can save 30%)

-Intelligent replenishment system of developer solution to ensure the development effect and reduce waste.

-The scientific design of the power, filtration and pipeline layout of the development cycle can effectively inhibit crystallization.

-Low liquid level alarm, drying and over-temperature self-protection function, safe and reliable.

-The touch screen man-machine interface is intuitive and easy to understand, making the operation more convenient.

-The accessories such as rubber roller and brush are easy to fold in half, and have the function of position memory, easy maintenance.

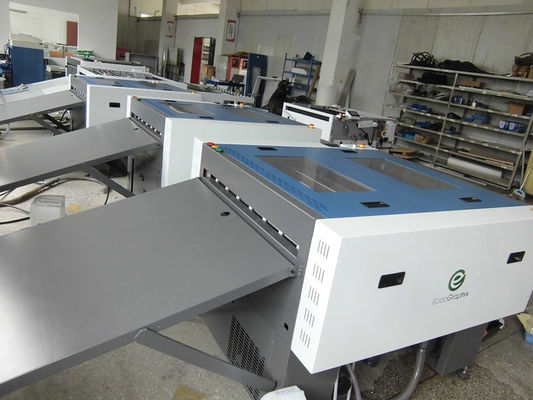

Producing and Packing


From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

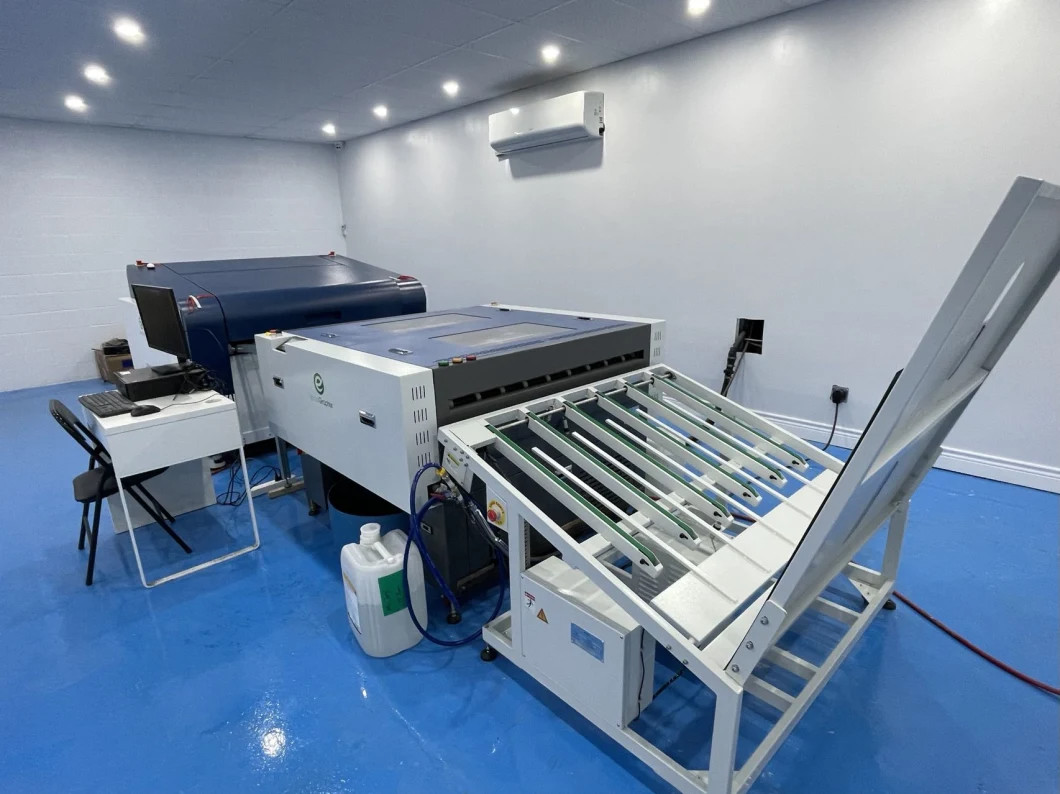

CTP Plate Processor Environmental Wide Format Developing Machine 17

CTP Plate Processor Environmental Wide Format Developing Machine 18



Significant Energy Saving Wide Format CTP Plate Processors
Significant Energy Saving Wide Format CTP Plate Processors


Q1: What are your main products ?

Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset printing blankets, Postpress Packing equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.


Q2: Where is your factory ?

Our CTP Processor machine factory is in Shanghai, you are warmly welcomed to visit our factory!


Q3: Is there any certification for your CTP Processor ?

Yes, all our machines have been certified by SGS and CE.


Q4: Can you also supply the Workflow and RIP ?

Yes, we can provide the Workflow Brainnew and RIP Compose .

Q5: What about the installation and after-sales technician support ?

Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.
