Ecoographix Prepress Printing Machine Thermal CTP Plate Making Equipment

1SET
MOQ
Negotiable
Price
Ecoographix Prepress Printing Machine Thermal CTP Plate Making Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Computer To Plate Making Machine
Exposing Mothod: External Drum
Plate Sizes: Max.1163mm X 940mm Min.400mm X 300mm
Plate Thickness: 0.15mm To 0.30mm
Resolution: 2400dpi
Machine Size: 2320x1080x960(WxLxH)mm
High Light:

Ecoographix Prepress Printing Machine

,

0.30mm Thermal CTP Plate Machine

,

Thermal CTP Plate Prepress Printing Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: Ecoosetter T-800
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 1000 SETS/YEAR
Product Description
Product Description

8up CTP for Thermal Plate Making

8up 32channel CTP Platesetter for Thermal Plate Making


                                                            Model T-800


EcooGraphix T800 series Manual Thermal CTP are for A1 or B1 paper size,

maximum size of plate: 1,163×940mm, with the output speed 16 to 28 plates per hour.

It can output the images on the computer to printing CTP plate directly though the CTP machine and save the film and labor.













Specification




EcooGraphix 800 CTP Series Specifications
Model T-800F T-800S T-800E
Imaging System 64 channel 48 channel 32 channel
Output Speed 28 pph 22 pph 16 pph
1030mm x 800mm / 2400dpi
Plate Size Max. 800 x 690mm Min. 400mm x 300mm
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Weight 900KG
Repeatability

±5μm

(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)

Machine Size (WxLxH)mm
2320x1080x960mm(W×D×H)
Power Supply single-phase: 260AC, +6%-10%; Power Conumption: 4KW
Environment recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: 40-70%RH

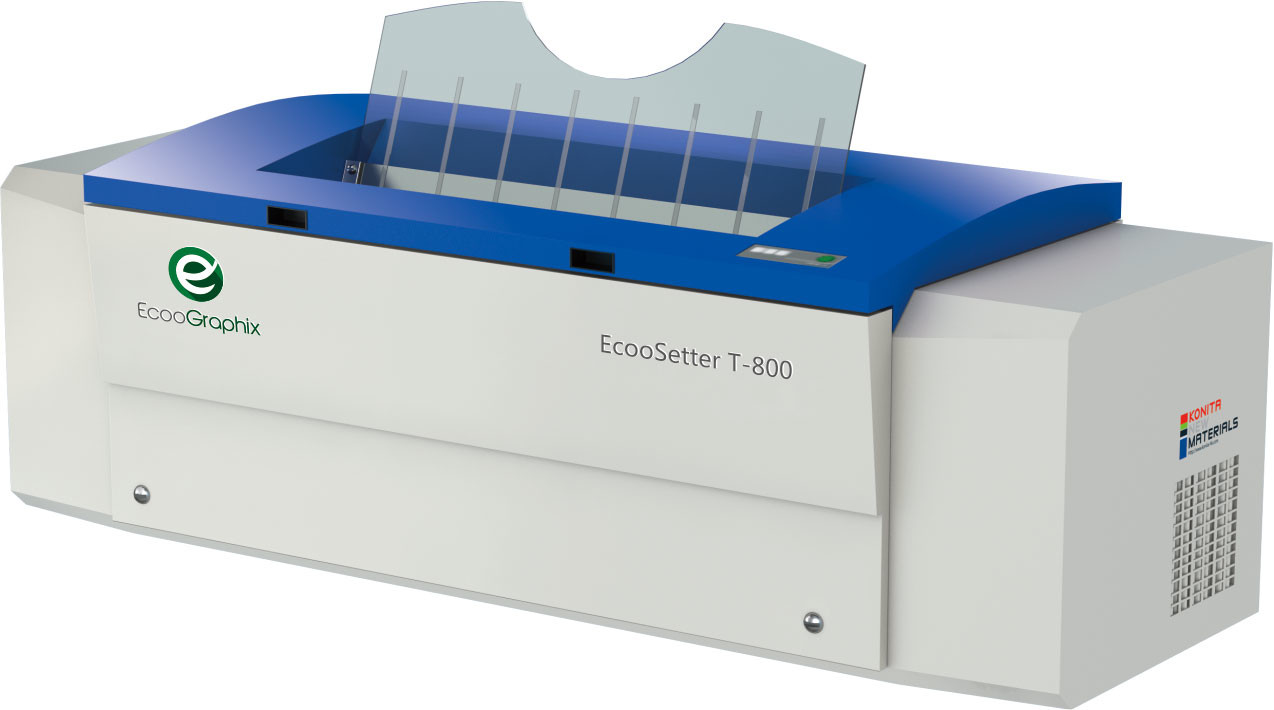

Ecoographix Prepress Printing Machine Thermal CTP Plate Making Equipment 1

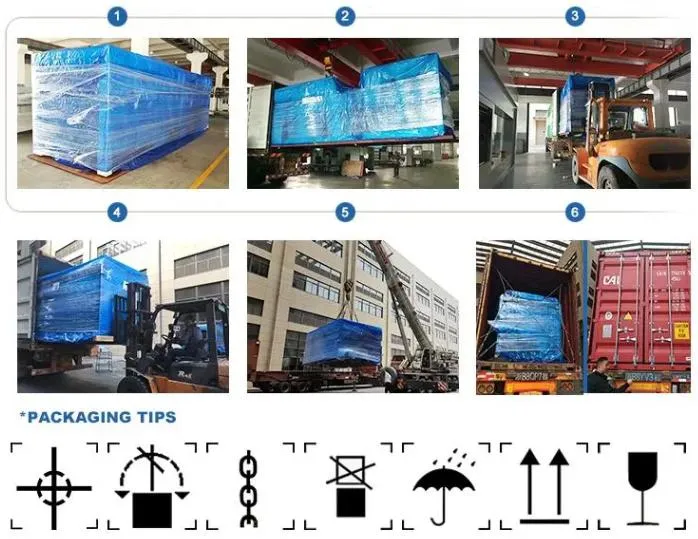

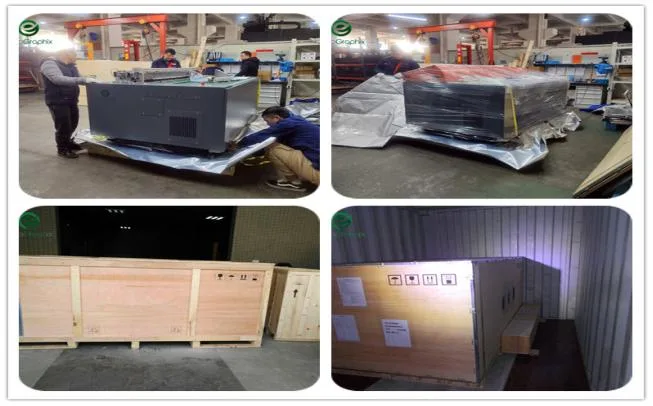

Packaging & Shipping






Ecoographix Prepress Printing Machine Thermal CTP Plate Making Equipment 2

Ecoographix Prepress Printing Machine Thermal CTP Plate Making Equipment 3

Ecoographix Prepress Printing Machine Thermal CTP Plate Making Equipment 4

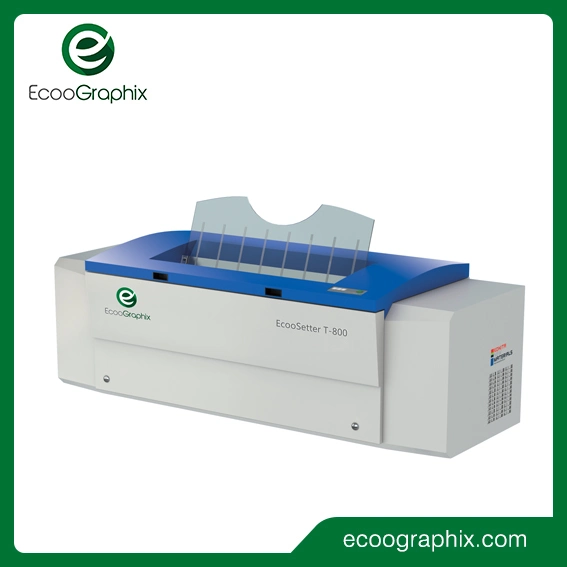

8up 32channel CTP Platesetter for Thermal Plate Making

8up 32channel CTP Platesetter for Thermal Plate Making

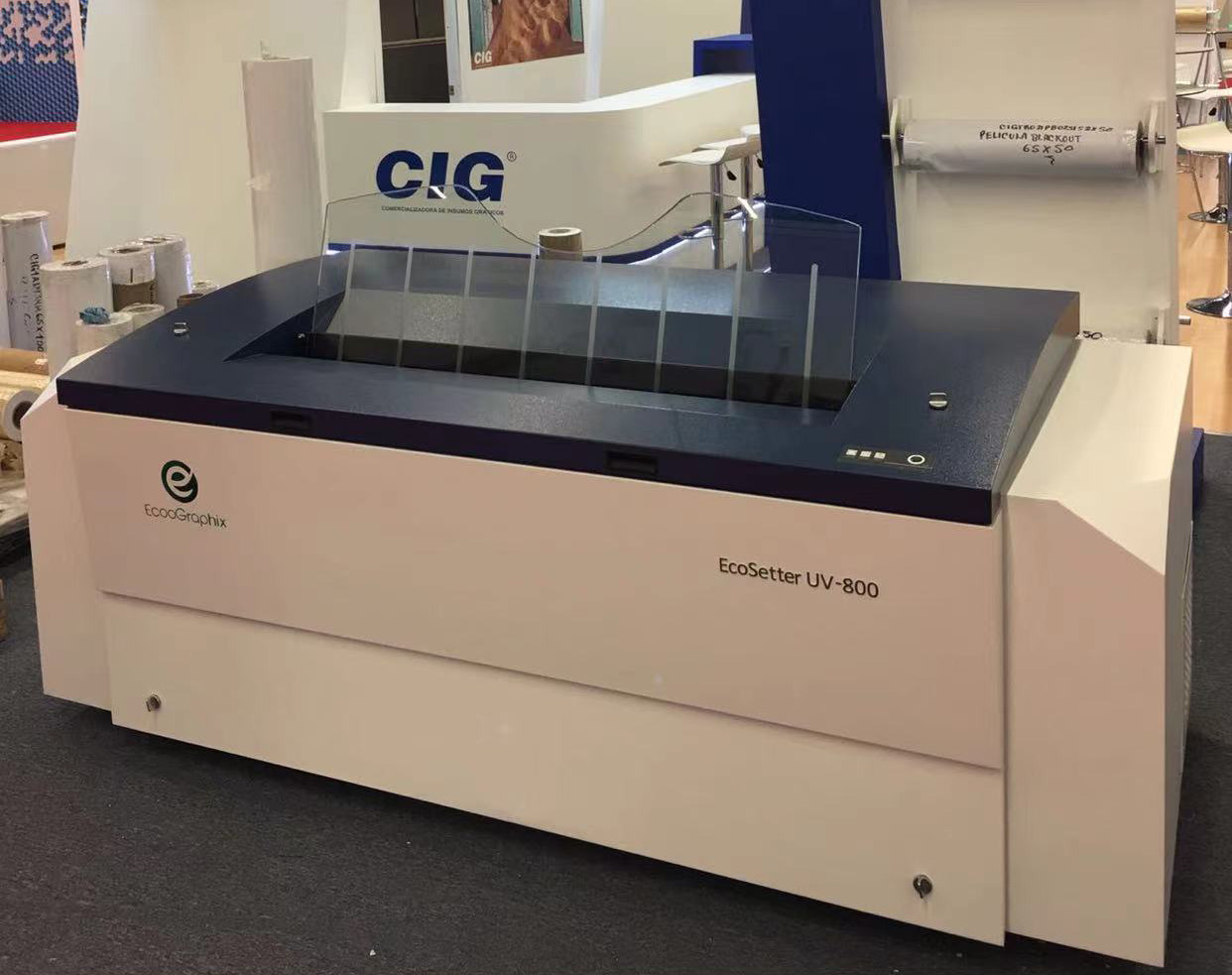

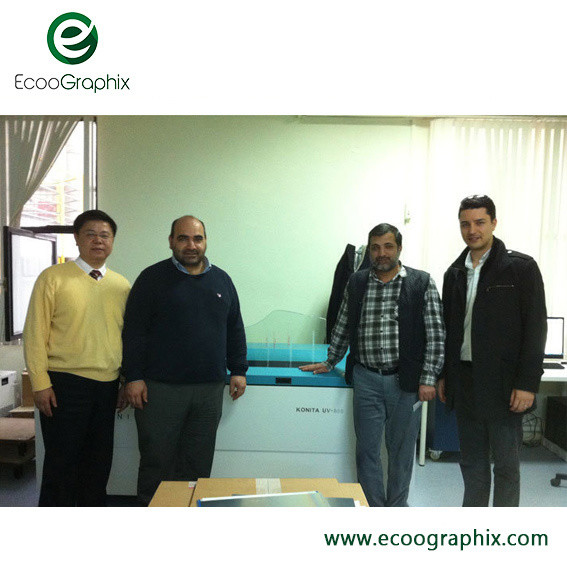

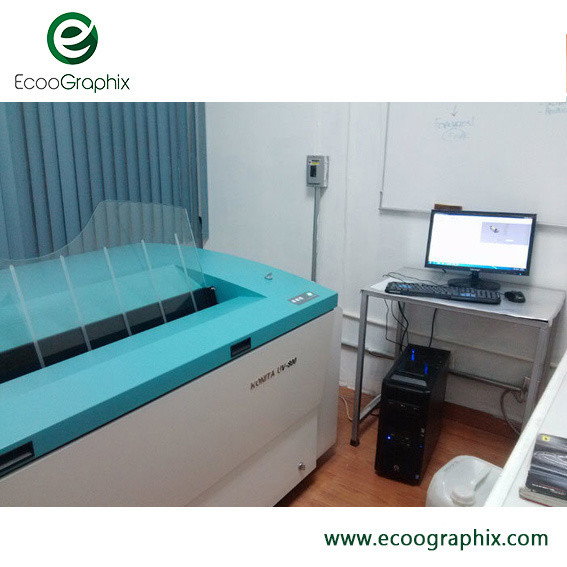

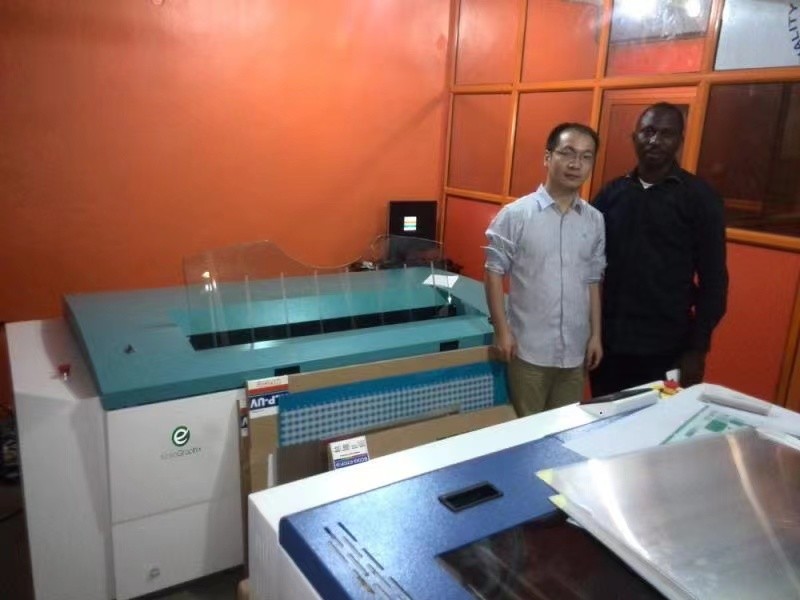

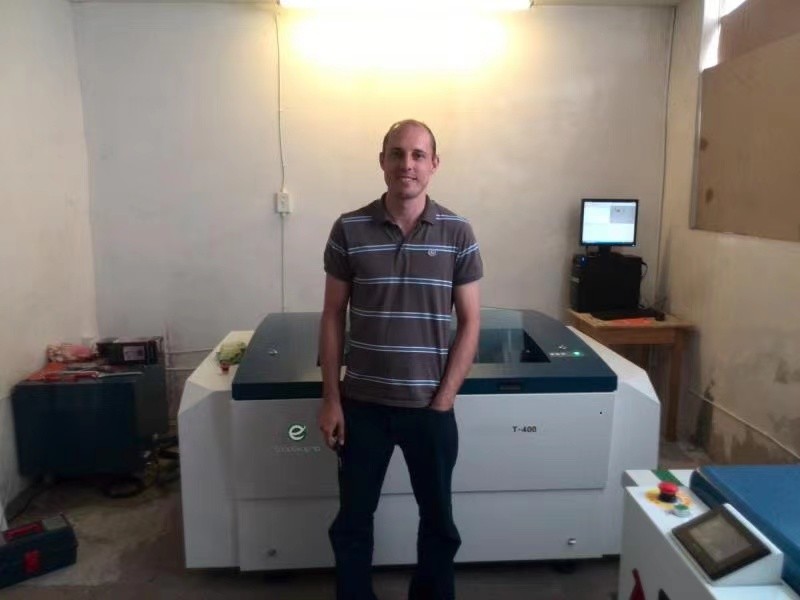

Installation Worldwide




Ecoographix Prepress Printing Machine Thermal CTP Plate Making Equipment 7



Ecoographix Prepress Printing Machine Thermal CTP Plate Making Equipment 8



Ecoographix Prepress Printing Machine Thermal CTP Plate Making Equipment 9



Ecoographix Prepress Printing Machine Thermal CTP Plate Making Equipment 10





FAQ




1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.

2. Where is your factory?

Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!

3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTP, one year for the processor.


4. What is the Lead Time?
Usually 20 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose.


6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
