24 - 32 Channel Thermal Computer To Plate Making Machine CTP Machine / Platesetter

1SET
MOQ
Negotiable
Price
24 - 32 Channel Thermal Computer To Plate Making Machine CTP Machine / Platesetter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Computer To Plate Making Machine
Exposing Mothod: External Drum
Plate Sizes: Max.800mm X 660mm Min. 400mm X 300mm
Plate Thickness: 0.15mm To 0.30mm
Resolution: 2400dpi
Machine Size: 1900x1200x1000(WxLxH)mm
High Light:

32 Channel CTP Platesetter

,

Computer To Plate Making Machine 2400dpi

,

External Drum CTP Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: Ecoosetter T-400
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 1000 SETS/YEAR
Product Description

Product Description

Product Description

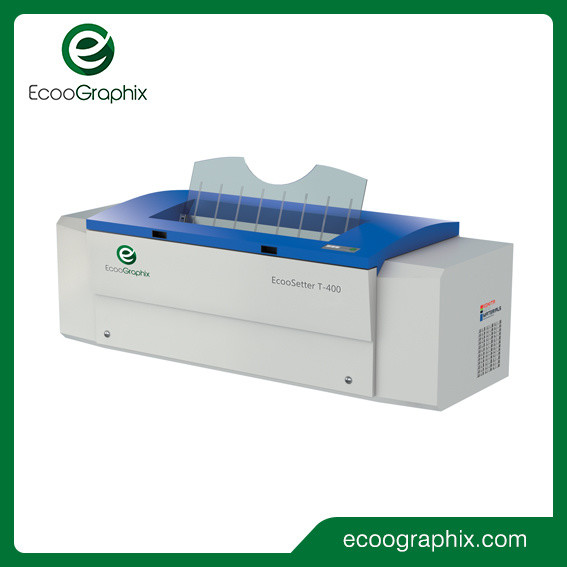

Ecoographix High Quality Plate Making Machine Thermal CTP Machine
Thermal-CTP T-400 series, most popular CTP, one of the best seller, suitable for middle/small printing factory.

Thermal-CTP T-400 series is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor.
Specification



EcooGraphix T-400 Series Thermal CTP Specifications
Model T-400F T-400S T-400E
Imaging System 48 channel 32 channel 24 channel
Output Speed 28pph 22pph 16pph
800mm x 600mm / 2400dpi
Plate Size Max. 800 x 690mm Min. 400mm x 300mm
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Weight 800KG
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size (WxLxH)mm 1900×1200×1000mm(W×D×H)
Power Supply single-phase: 260AC, +6%-10%; Power Conumption: 4KW
Environment recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: 40-70%RH
Features
Features:

-Little space occupaid, more flexible

-Small volume, high stability and perfect output quality

-Different speed setting to satisfy different demanding.

Ecoographix High Quality Plate Making Machine Thermal CTP Machine
Packaging & Shipping

Ecoographix High Quality Plate Making Machine Thermal CTP MachineEcoographix High Quality Plate Making Machine Thermal CTP MachineEcoographix High Quality Plate Making Machine Thermal CTP MachineEcoographix High Quality Plate Making Machine Thermal CTP Machine

Certifications




Ecoographix High Quality Plate Making Machine Thermal CTP MachineEcoographix High Quality Plate Making Machine Thermal CTP Machine

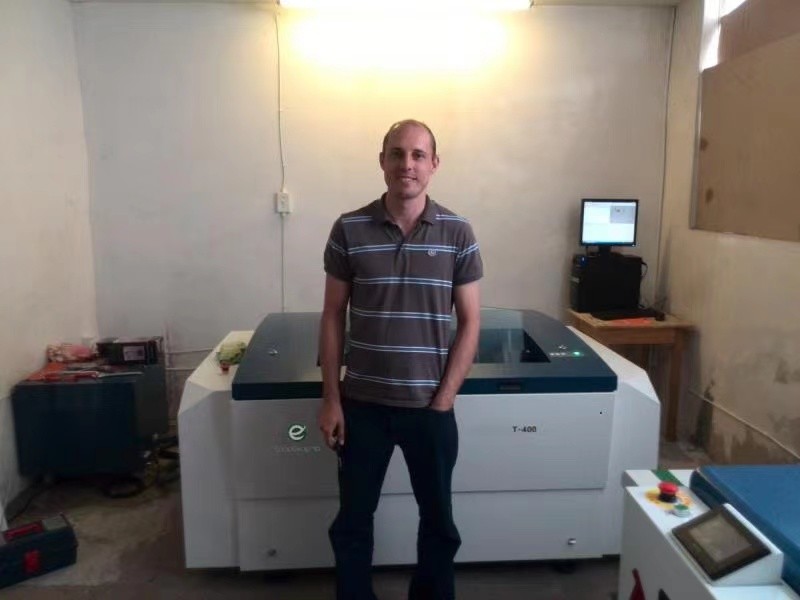

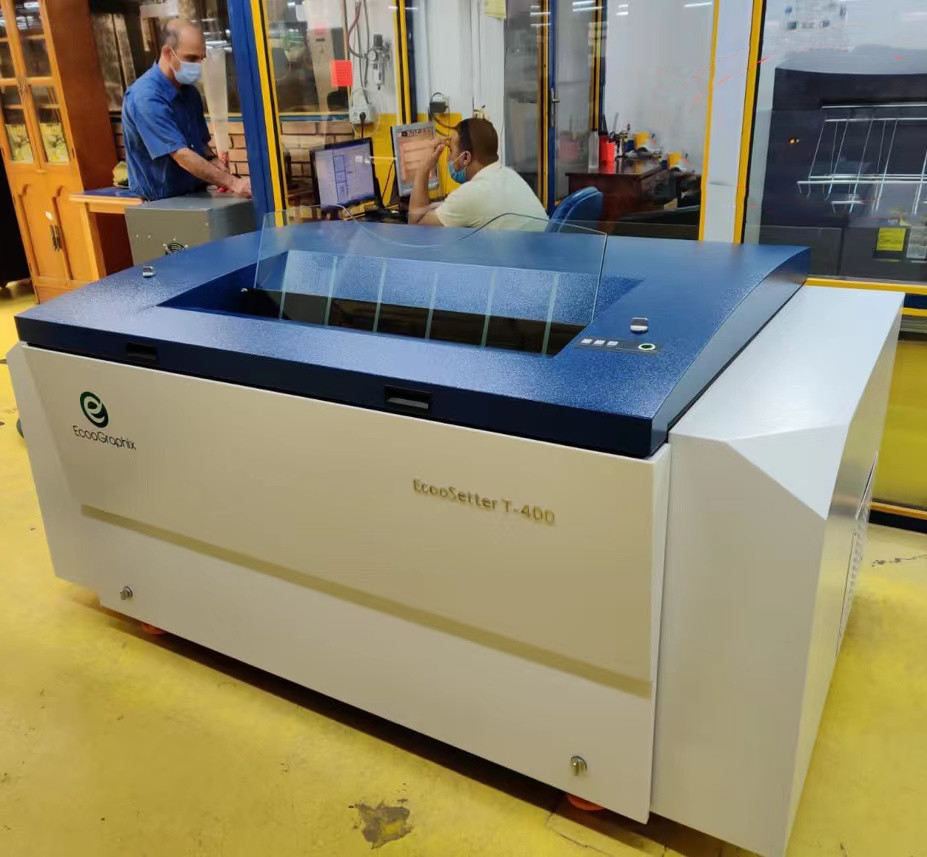

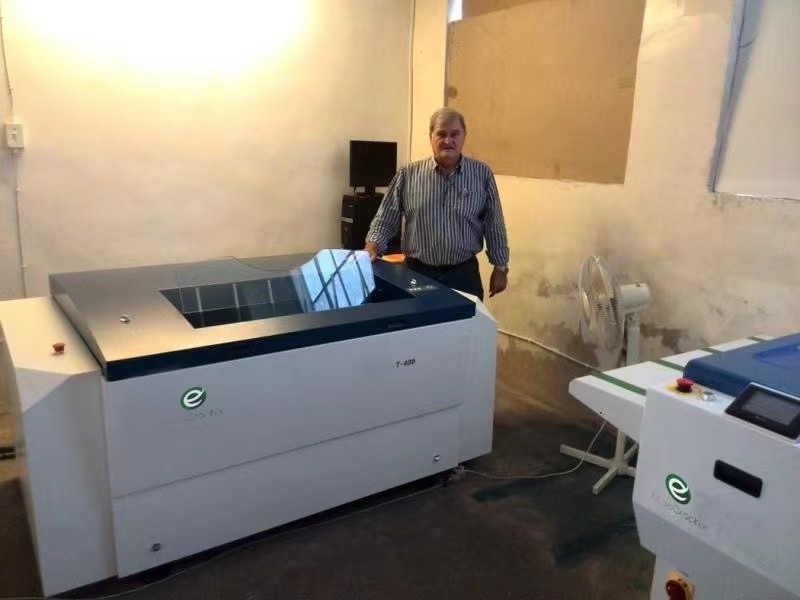

Our Factory

24 - 32 Channel Thermal Computer To Plate Making Machine CTP Machine / Platesetter 8

24 - 32 Channel Thermal Computer To Plate Making Machine CTP Machine / Platesetter 9

FAQ

1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.

2. Where is your factory?

Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!

3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTP, one year for the processor.


4. What is the Lead Time?
Usually 20-30 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose.


6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
