55pph Automatic Prepress Printing Equipment Thermal CTP Offset Printing Platesetter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic Prepress Printing Equipment
Imaging System: External Drum 825nm Laser
Throughout: 25/55 Plates/Hour
Plate Size: Max.800*660mm, Min.400*300mm
Light Source: Solid State Laser
Classification: Outside Of Drum
High Light:

55pph Prepress Printing Equipment

,

Offset Printing Thermal CTP Platesetter

,

Automatic Thermal CTP Plate Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: ECOO-T400QX/QS
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 1000 SETS/YEAR
Product Description

Product Description

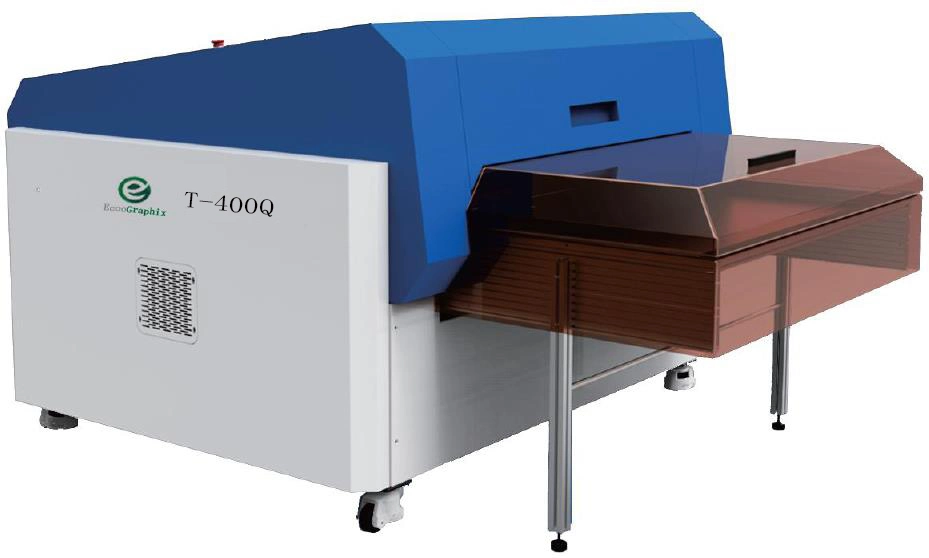

The Highest Automatic CTP EcooSetter: T400Q (S,X)

55pph Highest Automatic Plate Machine Thermal CTP
T400Q
- Super fast
- Supreme Imaging Quality
- Full Automation(online punch& autoloader built in)
- compacted design
Specification



ECOO T-400Q
Model T-400QS T-400QX
Imaging System External Drum 825nm laser
Output Speed 25pph 55pph
800 x 660mm / 2400dpi
Plate Size Max.800 x 660mm Min. 300mm x 300mm
Plate Thickness 0.15mm, 0.30mm
Resolution 2400dpi or1200dpi
Repeatability 0.01mm
Interface Optical Fiber/Light Valve
Inline puning Optional: internal punching (maximum four sets of plate holes)
Size (WxDxH)mm 1450x1950x1290mm
(additional 600mm length for converyor to wash unit)
Power Supply CTP(single phase: 220V, Max power: 4KW)
Simplifiled Autoloader(single phase: 220V, Max power: 900W)
Multi-cassette Autoloader(single phase: 220V, Max power: 1100W)
Enviroment: Recommended temperature: 21-25ºC; Relative humidity: 40-70%

Performance Improvement



55pph Highest Automatic Plate Machine Thermal CTP
Large capacity automatic plate feeding system can load 400 plates at the same time and support four specifications of automatic plate switching, which saves manpower and improves printing speed for you, easily achieving full-automatically continuous plate printing.

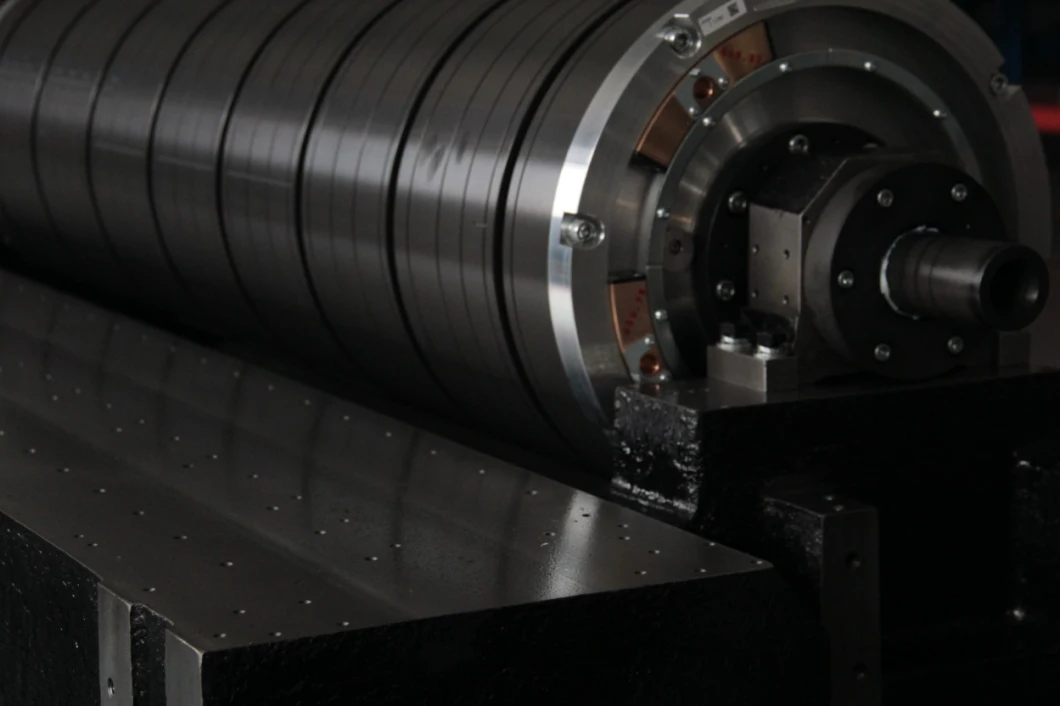

The drum runs with a rotatory run-out less than8 microns and never wear out. The highly reliable plate clamping system has a large tolerance when designed. It has gone through over 200, 000 tests for fatiguereliability with a non-flyout-plate record of4, 000, 000 hours.
55pph Highest Automatic Plate Machine Thermal CTP

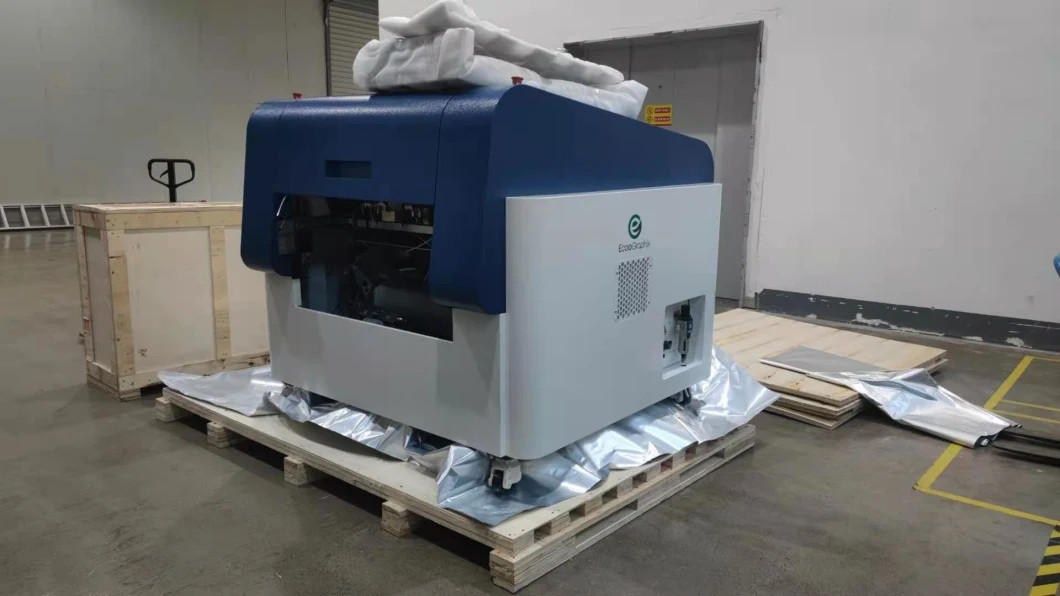

Producing and Packing




55pph Automatic Prepress Printing Equipment Thermal CTP Offset Printing Platesetter 3





55pph Automatic Prepress Printing Equipment Thermal CTP Offset Printing Platesetter 4



55pph Automatic Prepress Printing Equipment Thermal CTP Offset Printing Platesetter 5



55pph Automatic Prepress Printing Equipment Thermal CTP Offset Printing Platesetter 6



55pph Automatic Prepress Printing Equipment Thermal CTP Offset Printing Platesetter 7



55pph Automatic Prepress Printing Equipment Thermal CTP Offset Printing Platesetter 8



55pph Automatic Prepress Printing Equipment Thermal CTP Offset Printing Platesetter 9

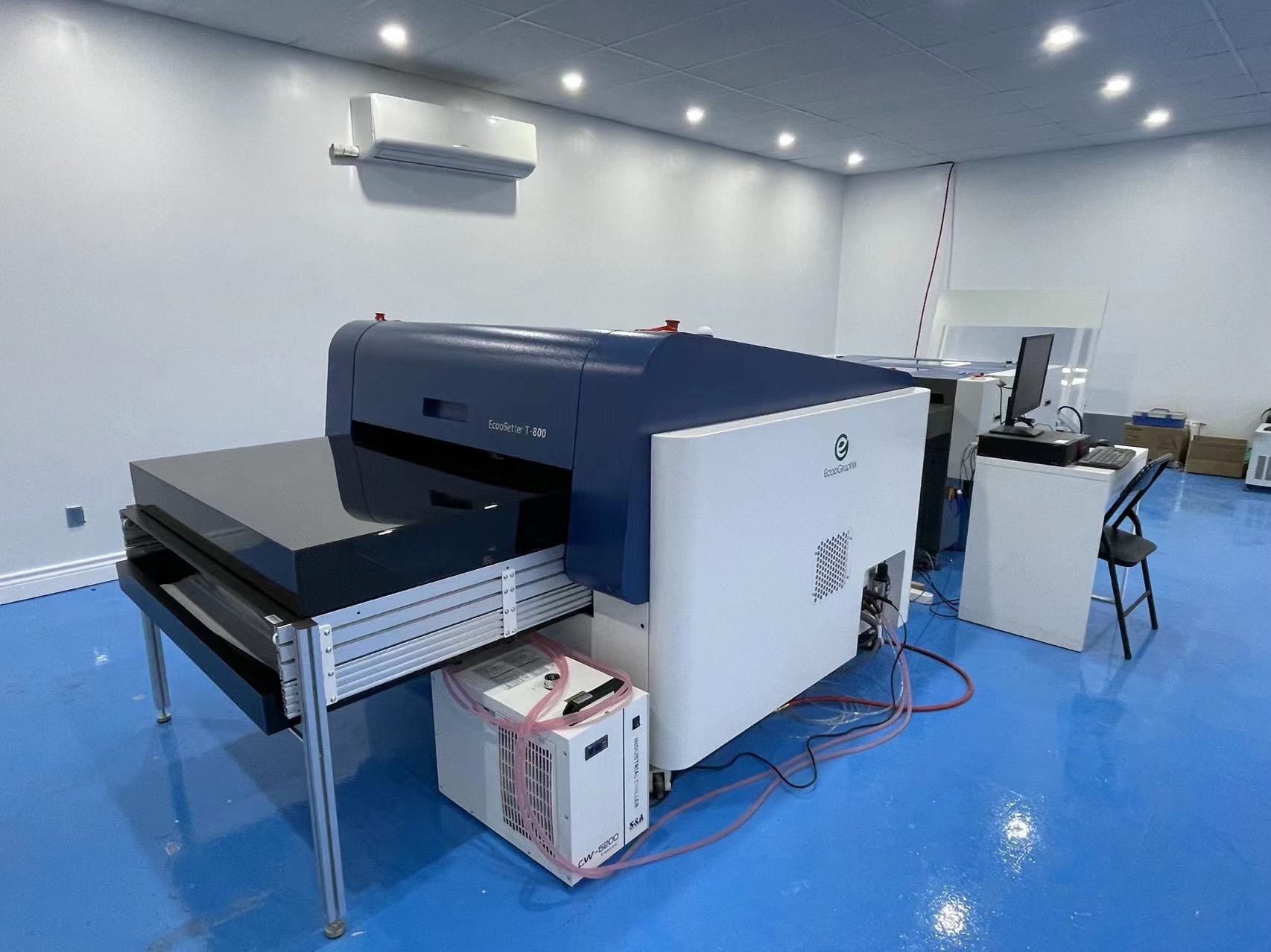

Installation Worldwide




55pph Automatic Prepress Printing Equipment Thermal CTP Offset Printing Platesetter 10



55pph Automatic Prepress Printing Equipment Thermal CTP Offset Printing Platesetter 11



55pph Automatic Prepress Printing Equipment Thermal CTP Offset Printing Platesetter 12

55pph Automatic Prepress Printing Equipment Thermal CTP Offset Printing Platesetter 13



55pph Automatic Prepress Printing Equipment Thermal CTP Offset Printing Platesetter 14





FAQ




1.What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, Inks, Blankets, Postpress Packing Equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate. You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.

2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!

3. What is your warranty for the CTP?
Three years' Laser Head and main spare parts for the CTP, one year for the processor.

4. What is the lead time?
Usually 20-30 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose.

6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training.

The buyer should take the round air plane tickets and service charge and the local accommodation cost.

Any problems or questions, we will be at your disposal 7x24 hours.
