Name: High Speed Varnish Coating Machine For UV Spot And Overall Coating
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: Ecoo SD-1050
Price: 105,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Varnish Coating Machine For UV Spot And Overall Coating

Application: Paperboard, Paper Printed

Max.sheet Size: 730x1050mm

Min.sheet Size: 310X406mm

Max. Coating Size: 720x1040mm

Sheet Thickness: 80-500gsm

Coating Registration Accuracy: ±0.2mm

Production Speed: 9000sheets/hour

Weight: 8T

Dimension: 10460x2725x1930mm

Power: 44KW

Highlight:

High Speed UV Varnish Coating Machine

Overall Coating UV Varnishing Machine

80gsm UV Varnishing Machine

Basic Infomation

Place of Origin: CHINA

Brand Name: EcooGraphix

Certification: CE, ISO900

Model Number: Ecoo SD-1050

Payment & Shipping Terms

Packaging Details: Standard Exporting Wooden Box

Delivery Time: 30 days

Payment Terms: L/C, T/T

Supply Ability: 300 Sets Per Year

Gallery

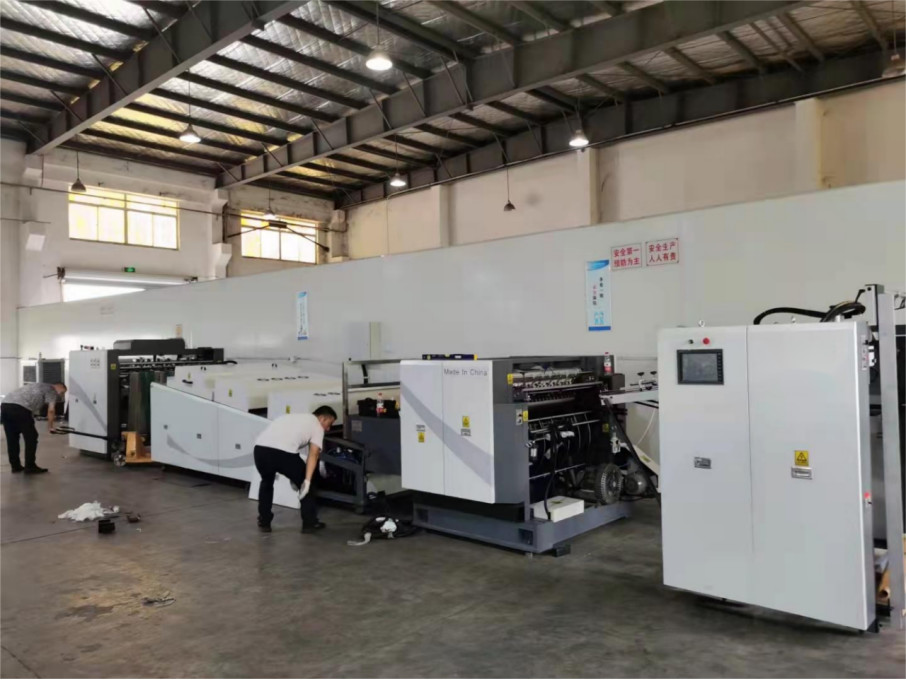

High Speed Varnish Coating Machine For UV Spot And Overall Coating

Product Description

High Speed Varnish Coating Machine For UV Spot And Overall Coating

Model: ECOO SD-1060W

Brief Introduction:

High Speed Spot and Overall Coating machine adopts upper-swaygripper- pass -sheet method to enable max speed up 9000 sheets/hour. UV or IR curing system with Teflon conveying belt has characteristic of higher speed, precise orientation and higher efficiency and lower power consumption. After sheet travelling through coater and being transferred directly by teflon belt, grippers can not be heated by high temperature from UV or IR light, which prevent them from being damaged or deformed to ensure easy maintenance. It is used for both thick and thin papers, and can be used for both full and partial UV varnish coating or water based varnish coating.

Main Features:

1.Feeder

High speed feeder with four sucking and four forwarding suckers can feed sheet smoothly.

2. Sheet Transferring Unit

Upper swing sheet transferring method can transfer sheet smoothly at high speed to pres-sure cylinder exactly.

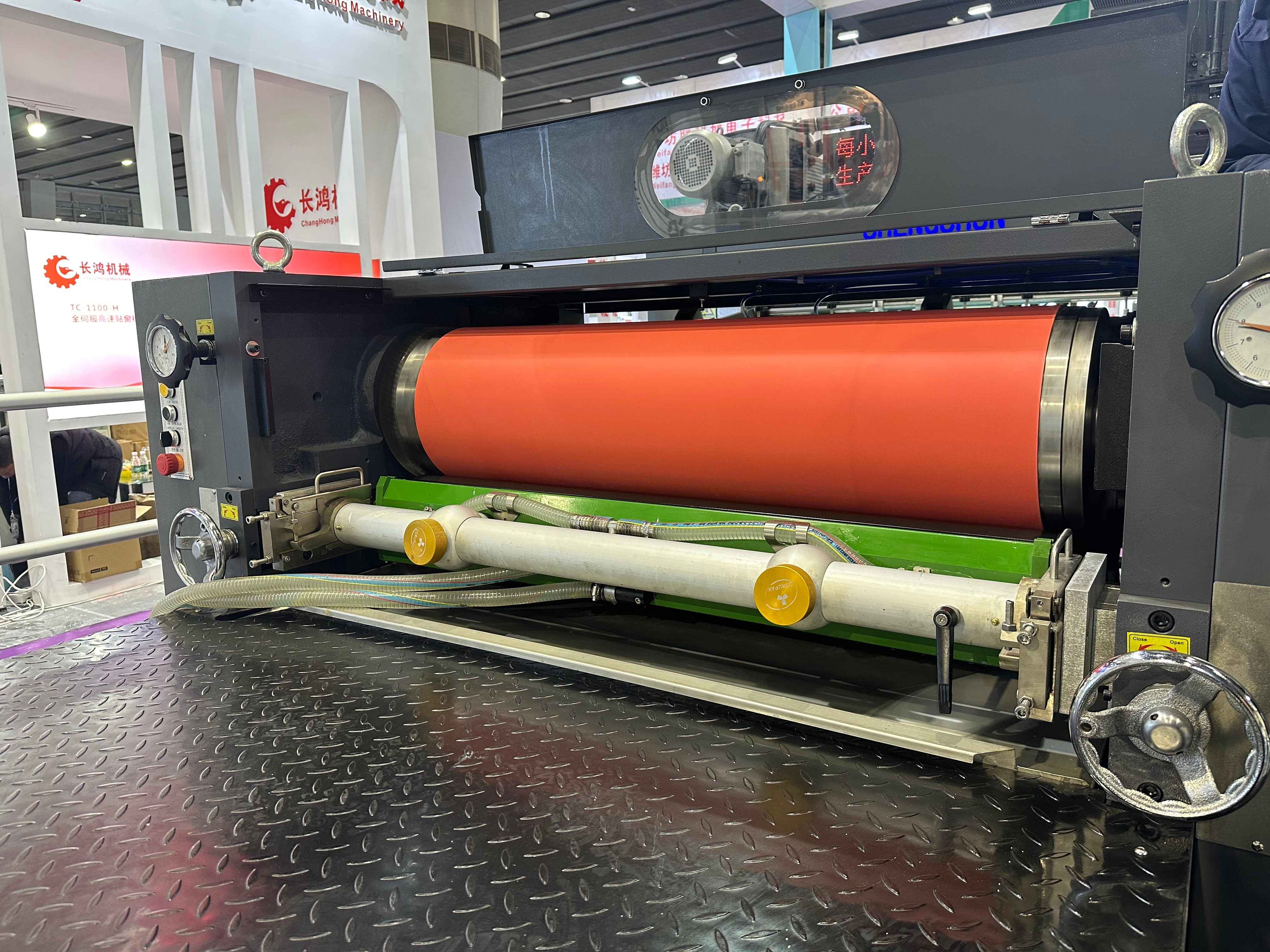

3. Varnish Supply

Steel roller and rubber roller with metering roller reversing and doctor blade design control by varnish consumption and

volume to meet the demand of products and operate easily. (Varnish consumption and volume are determined by LPI

of ceramic anilox roller)

4. Transferring Unit

After sheet is transferred from pressure cylinder to gripper, air volume blowing for paper can support and reverse sheet

smoothly, which can prevent sheet surface from being scratched.

5. Conveying Unit

Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery.

6. Sheet Delivery

Automatic pneumatic patting sheet controlled by photoelectric detecting sensor make sheet pile fall automatically and

collect sheet neatly. Electronic control can take out sheet sample safely and quickly for inspecting.

Specifications:

Model	Ecoo SD-1060
Max.sheet size	730x1060mm
MIN.sheet size	310X406mm
Max.coating size	720x1050mm
Sheet thickness	80-500gsm
Coating registration accuracy	±0.2mm
Type of varnish	Water based varnish or UV varnish
Production speed	9000 sheets/hour for 150g paper 8000 sheets/hour for 90-150g paper 7000 sheets/hour for 80g paper
Weight	8T
Dimension	11960x2725x1976mm
Power	44KW

Standard Equipments:

Auto Feeder

Multifunctional Coating Unit (rubber roller).

UV Curing System

IR Curing System

Auto Delivery Unit

Auto Control

Optional Equipments:

Non-stop Feeding and Delivery Mechanism

Fold the Car Device

Ceramic Anilox Roller with Chambered Doctor Blade

Remote control

Servo Feeder

Dual Channel Pump

High Speed Varnish Coating Machine For UV Spot And Overall Coating 0

High Speed Varnish Coating Machine For UV Spot And Overall Coating 3

FAQ:

1. What are your main products?

We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.

2. Where is your factory?

Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.

3. What is your warranty?

Normally 1 year.

4. Can you also supply the software?

Yes

5. What about the Installation and after-sales technician support?

Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
