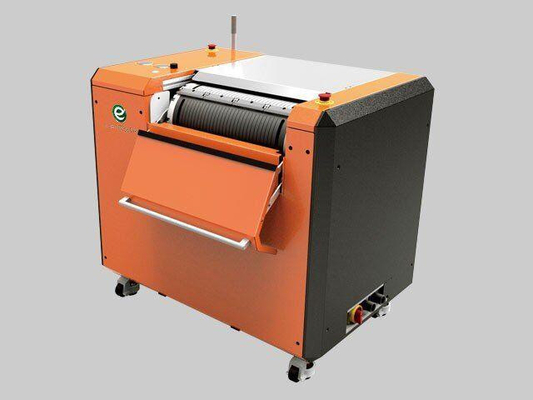

EcooGraphix Flexo CTP Machine FL-600E
EcooGraphix Flexo CTP machine is used for label, trade mark or package printing.
It can expose the Heat corrosive film, digital relief printing plate (water-wash),
digital flexo plate (water-wash), digital flexo plate (solvent based), or Thermal PS plate and so on.
-Linear motor: More accurate, more simple and more reliable.
-Long lifetime and warranty of spare parts: Laser Lifetime: >10000h

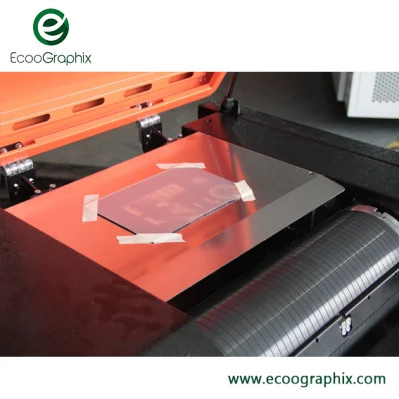

-Easy to use: After placing plate, the only step you need to do is to press a button to finish the plate loading within seconds.
-Automatic Focusing: The machine can be used for different thickness plate from 0.15mm to 1.7mm. Dynamic autofocus system keeps accurate focus constantly to ensure sharp dot.

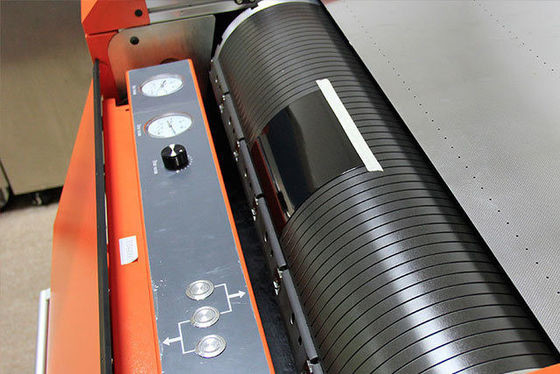

-Auto balance system of drum: takes no more than 5 seconds to adjust drum balance block to a position, make the drum stable in high speed rotation.
-Auto switch of laser channel: When any laser channels breaks down, laser channel auto switch system can continue output through the longest consecutive channel that remains working to ensure non-stop production.
Specification
| Model | FL-600E | FL-600S | |
| Laser Channel | 16 channel | 32 channel | |
| Output Speed | 1.25m2/h | 2.5 m2/h | |
| Max. Breadth | 26" x 17"/ 680mm x 430mm | ||
| Min. Breadth | 100mmx100mm | ||
| Plate Type | Digital relief flexo plate(water-wash) ,digital flexo plate(solvent-wash), steel based digital plate(water/alcohol washable) are applied for EM/SM series |
||
| Plate Thickness | 0.15mm - 2.84mm | ||
| Laser Power | High power semiconductor laser diode | ||
| Application | Label and trademark | ||
| Resolutions | 4000dpi | ||
| Plate Loading | Manual load and unload | ||
| Interface | USB2.0 | ||
| Focus Adjust | Dynamic auto-focus | ||
| Laser Lifetime | >10000h | ||
| Devise Size | 1087x770x1000mm (WxDxH) | ||
| Net Weight | 400KG | ||
| Power | Singele phase: 220V/50HZ, 60HZ/3KMW | ||
| Environment | Recommended temperature: 18-30ºC Humidity: 10%-80% | ||
Producing and Packing
Installation Worldwide
About us
FAQ
1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.
2. Where is your factory?
Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTP, one year for the processor.
4. What is the Lead Time?
Usually 20-30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
