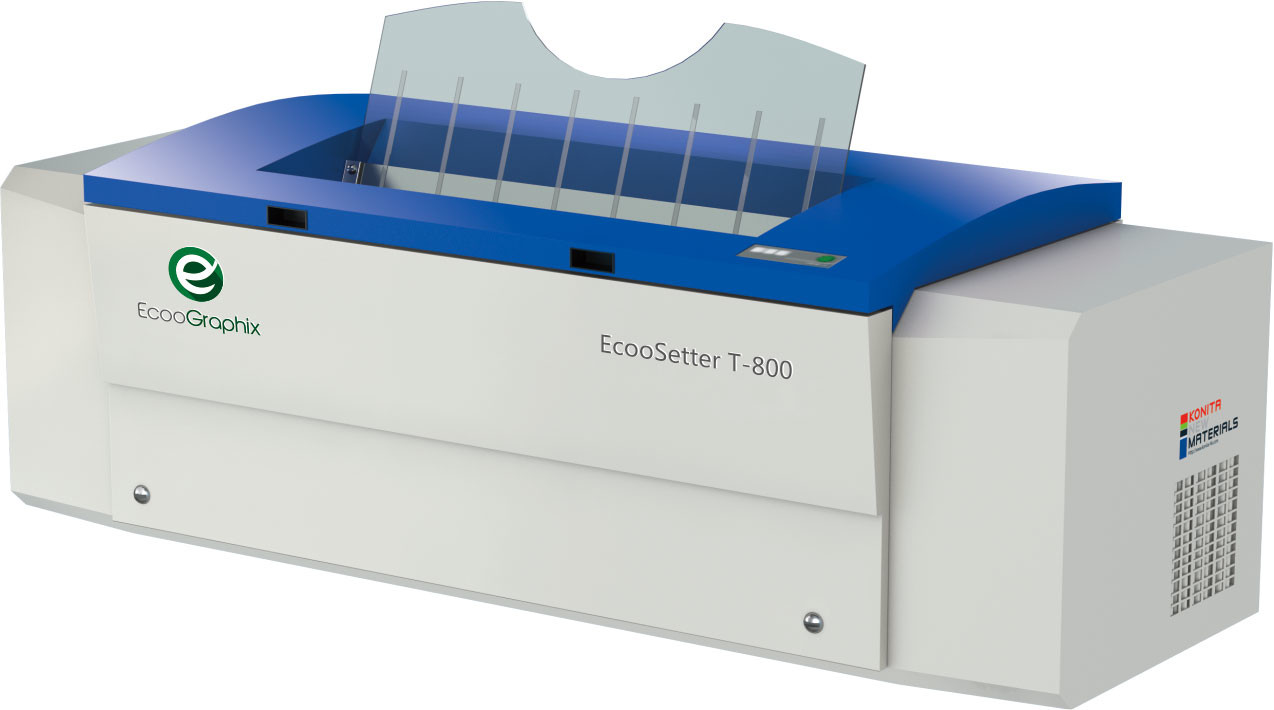

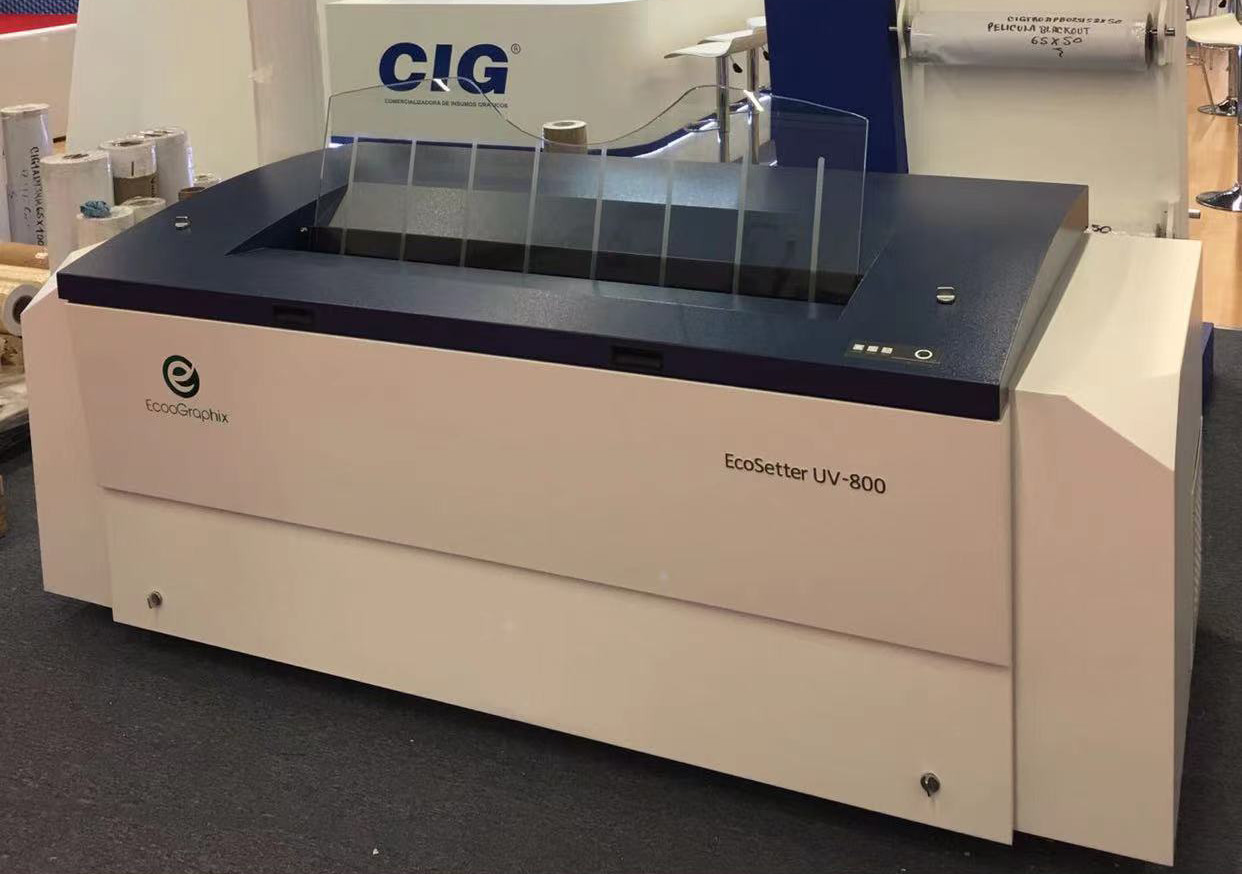

EcooGraphix T800 series Manual Thermal CTP are for A1 or B1 paper size,
maximum size of plate: 1,163×940mm, with the output speed 16 to 28 plates per hour.
Specification
Model: EcooSetter T-800E/S/F
Laser wavelength: 830nm
Plate: Thermal plate

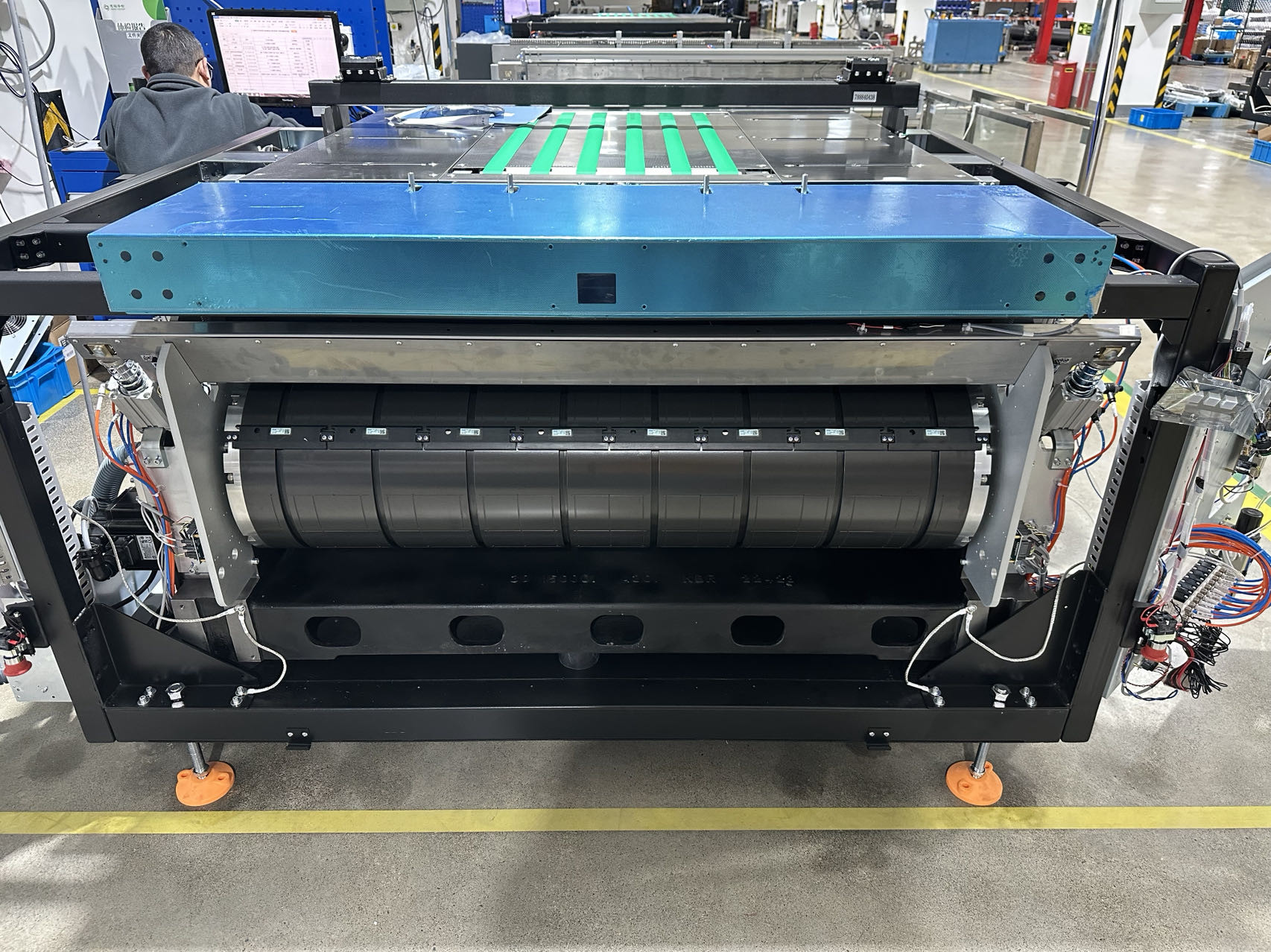

Exposing Method: External Drum
Imaging System: 32/48/64 -channel
Throughput: 16/22/28 plates per hour, 1030mmx800mm 2400dpi
Plate Size: Max. 1130mmx920mm min. 400x300mm
Plate Thickness: 0.15mm to 0.3mm
Resolutions: 2,400dpi
Repeatability: ±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface: USB2.0
Weight: 900KG
Size: 2320×1080×960mm(W×D×H)
Power Supply: single-phase: 220AC+6%,-10%;Power
Consumption: 4KW
Environment: recommended: 21-25ºC,max.18-26ºC,humidity:40-70%
| EcooGraphix 800 CTP Series Specifications | |||||
| Model | T-800F | T-800S | T-800E | ||
| Imaging System | 64 channel | 48 channel | 32 channel | ||
| Output Speed | 28 pph | 22 pph | 16 pph | ||
| 1030mm x 800mm / 2400dpi | |||||
| Plate Size | Max. 800 x 690mm Min. 400mm x 300mm | ||||
| Plate Thickness | 0.15mm to 0.30mm | ||||
| Resolution | 2400dpi | ||||
| Weight | 900KG | ||||
| Repeatability |
±5μm (continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%) |
||||
| Machine Size (WxLxH)mm |
2320x1080x960mm(W×D×H)
|
||||
| Power Supply | single-phase: 260AC, +6%-10%; Power Conumption: 4KW | ||||
| Environment | recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: 40-70%RH | ||||
Major Highlights
1) Superior dot quality reproduction proven by worldwide market: 1%-99% dot reproduction
Up to 250lpi screening ,2400 dpi or 1200dpi optional
2) Worldwide top class components and parts supplied by international well known suppliers from Japan, USA, and Germany
3) Long lifetime and warranty of parts: laser diodes lifetime at more than 10,000 imaging hours. (approximately 20,0000 plates)
4) Long warranty of the machine: 3 years warranty (free replacement of all parts)
Low Cost of Parts: after 3 year warranty, very low cost of parts. for example, laser diode at US$250 per piece.
5) Guaranteed Service: installation and training conducted by technical engineer from factory, ensuring best setup and training to be achieved.
Regular remote maintenance to be conducted every 2 month. Proactively revisit by engineers to be conducted. 7x24 hours service response.
6) Proven Worldwide market leader: (Some highlights installations) Over 6000 units installed worldwide over past 10 years.
USA and Canada: Over 50 units in USA and Canada in last 3 years by leading US press manufacturer.
Turkey: 35 units installed in Turkey by Esen Graphics
Installations in other countries UK, Italy, Spain, Hungary, Russia, Mexico, Brazil, Colombia, Ecuador, South Africa, Nigeria and etc.
