Thermal CTP Platesetter Computer To Plate Making Machine 24 - 32 Channel

1SET
MOQ
Negotiable
Price
Thermal CTP Platesetter Computer To Plate Making Machine 24 - 32 Channel
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Thermal CTP Platesetter
Exposing Mothod: External Drum
Plate Sizes: Max.800mm X 660mm Min. 400mm X 300mm
Plate Thickness: 0.15mm To 0.30mm
Resolution: 2400dpi
Machine Size: 1900x1200x1000(WxLxH)mm
High Light:

Thermal Computer To Plate Making Machine

,

32 Channel CTP Plate Machine

,

2400dpi CTP Plate Making Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: Ecoosetter T-400
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 500 SETS/YEAR
Product Description

24 - 32 Channel Thermal CTP Platesetter



EcooGraphix Thermal CTP (Computer To Plate) Plate making Machine is the first Prepress necessity of quick short-run offset printing.

It can output the Images on the computer to Printing CTP plate directly though the CTP machine and save the film and labor.





Product Description




 Application



EcooGraphix T-400 series thermal CTP are for 4 ups newspaper or commercial printing with the output speed 16pph to 28pph. The CTP is operated by manual,very easy to use.

It is our best seller among all types of CTP models, for its high cost-effectiveness and durability and stability.





Specification




ECOO T-400 Series CTP Specifications



ModelT-400F; T-400S; T-400E


Exposing MethodExternal Drum

Imaging System48-channel; 32-channel, 24-channel, Discrete 830nm laser diode

Throughput28plates/hour; 22plates/hour; 16plates/hour, 800mm x 600mm, 2400dpi

Plate sizeMax. 800mm x 690mm, Min. 400mm x 300mm

Plate Thickness0.15mm to 0.30mm

Resolution: 2400dpi

Machine Size (WxLxH)1900x1200x1000mm

Power Supply Single phase: 220AC, + 6%, - 10%, Power Consumption: 4KW

Repeatability±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)

EcooGraphix 400 CTP Series Specifications
Model T-400F T-400S T-400E
Imaging System 48 channel 32 channel 24 channel
Output Speed 28 pph 22 pph 16 pph
800mm x 600mm / 2400dpi
Plate Size Max. 800 x 690mm Min. 400mm x 300mm
Plate Thickness 0.15mm to 0.30mm
Resolution 2400dpi
Weight 800KG
Repeatability ±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Machine Size (WxLxH)mm 1900×1200×1000mm(W×D×H)
Power Supply single-phase: 260AC, +6%-10%; Power Conumption: 4KW
Environment recommended: 21-25ºC, Allowed temperature:15-30ºC, Humidity: 40-70%RH



Thermal CTP Platesetter Computer To Plate Making Machine 24 - 32 Channel 0



Thermal CTP Platesetter Computer To Plate Making Machine 24 - 32 Channel 1



Producing and Packing




Thermal CTP Platesetter Computer To Plate Making Machine 24 - 32 Channel 2



Thermal CTP Platesetter Computer To Plate Making Machine 24 - 32 Channel 3



Thermal CTP Platesetter Computer To Plate Making Machine 24 - 32 Channel 4



Thermal CTP Platesetter Computer To Plate Making Machine 24 - 32 Channel 5

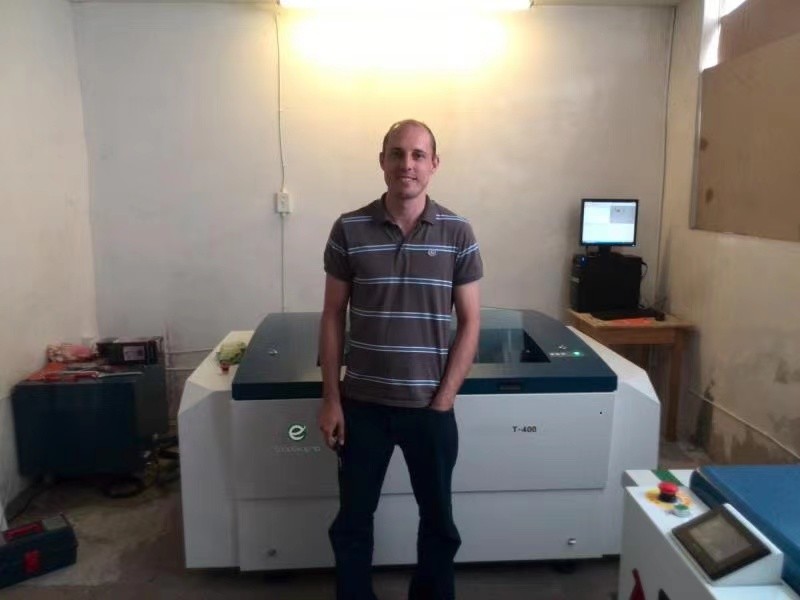

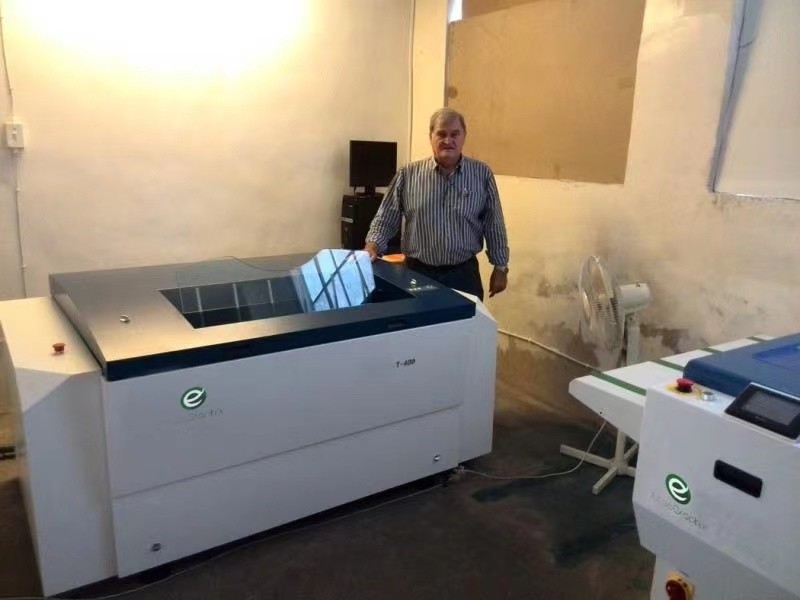

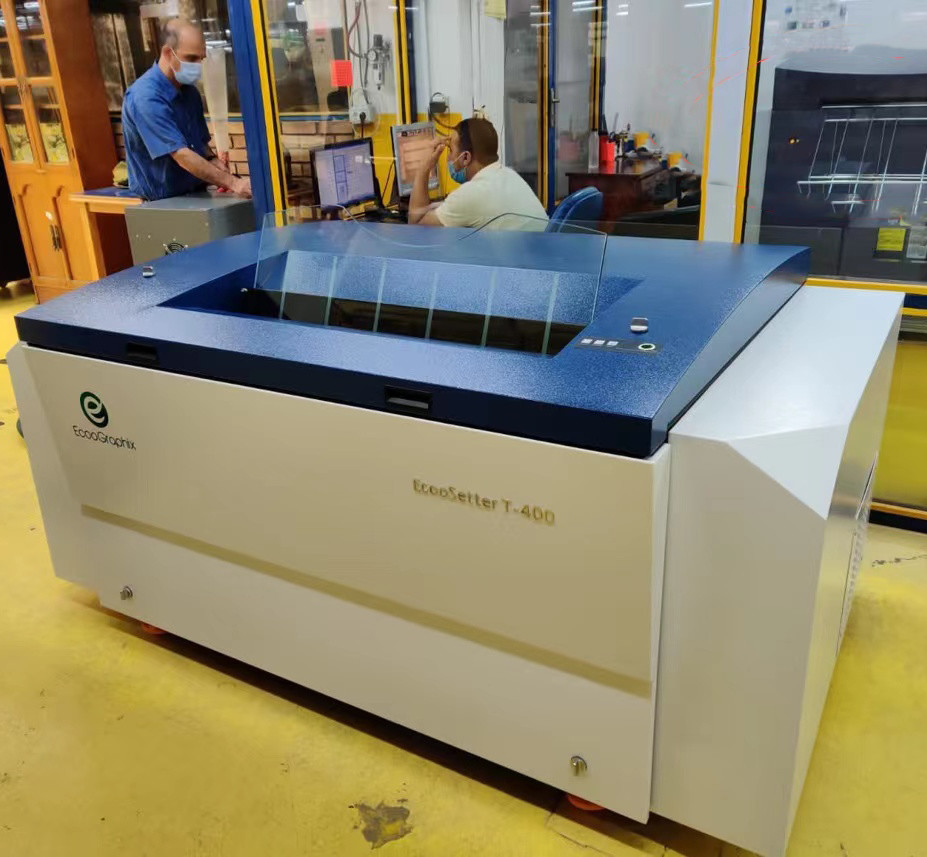

Installation Worldwide




Thermal CTP Platesetter Computer To Plate Making Machine 24 - 32 Channel 6



Thermal CTP Platesetter Computer To Plate Making Machine 24 - 32 Channel 7



Thermal CTP Platesetter Computer To Plate Making Machine 24 - 32 Channel 8



Thermal CTP Platesetter Computer To Plate Making Machine 24 - 32 Channel 9





About us



EcooGraphix is a leading worldwide prepress and graphics arts supply provider. With our main office in China and top quality factories mostly based in China. We provide top quality as well as cost competitive products including CTP/CTCP equipments, CTP/CTCP plates, and some other graphics arts supply. Furthermore, we treat quality service as our top priority to ensure evey single customer operates seamlessly. We are by far one of largest and top quality and service provide for CTP equipments, plates and service from China. With hundreds of EcooGraphix CTP installations across USA, Canada, Mexico, South America, UK, Europe, Middle East, Turkey and etcs, we have gained a very fine international reputation in the industry.




FAQ


1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, postpress packing equipments and so on.
There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.
We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and Chemistry free CTP plate.
You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.

2. Where is your factory?

Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!

3. What is your warranty for the CTPs?
Three years' Laser Head and main spare parts for the CTP, one year for the processor.


4. What is the Lead Time?
Usually 20-30 days, and we will try our best to meet your demands.

5. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.


6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
