55pph Automatic Plate Making Machine Thermal CTP Offset Printing Machine

1 SET
MOQ
Negotiable
Price
55pph Automatic Plate Making Machine Thermal CTP Offset Printing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Automatic Plate Making Machine
Imaging System: External Drum 825nm Laser
Output Speed: 55pph 800*660mm/2400dpi
Plate Thickness: 0.15mm, 0.30mm
Resolution: 2400dpi Or1200dpi
Warranty: 3 Years Including All Parts
After-sale Service:: Trouble Shooting, Installation, Training
High Light:

55pph Automatic Plate Making Machine

,

0.15mm Thermal CTP Plate Machine

,

CTP Plate Offset Printing Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: EcooGraphix
Certification: CE, ISO900
Model Number: Ecoosetter T-400Q
Payment & Shipping Terms
Packaging Details: Standard Exporting Wooden Box
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description

The Highest Automatic CTP Device EcooSetter: T400Q (S,X)
-----Popular in USA and Canada to maximize the effciency and save the labor cost-----





Product Description




This T400Q is our prepress solution for commercial printing, booking printing and some package printing customers.

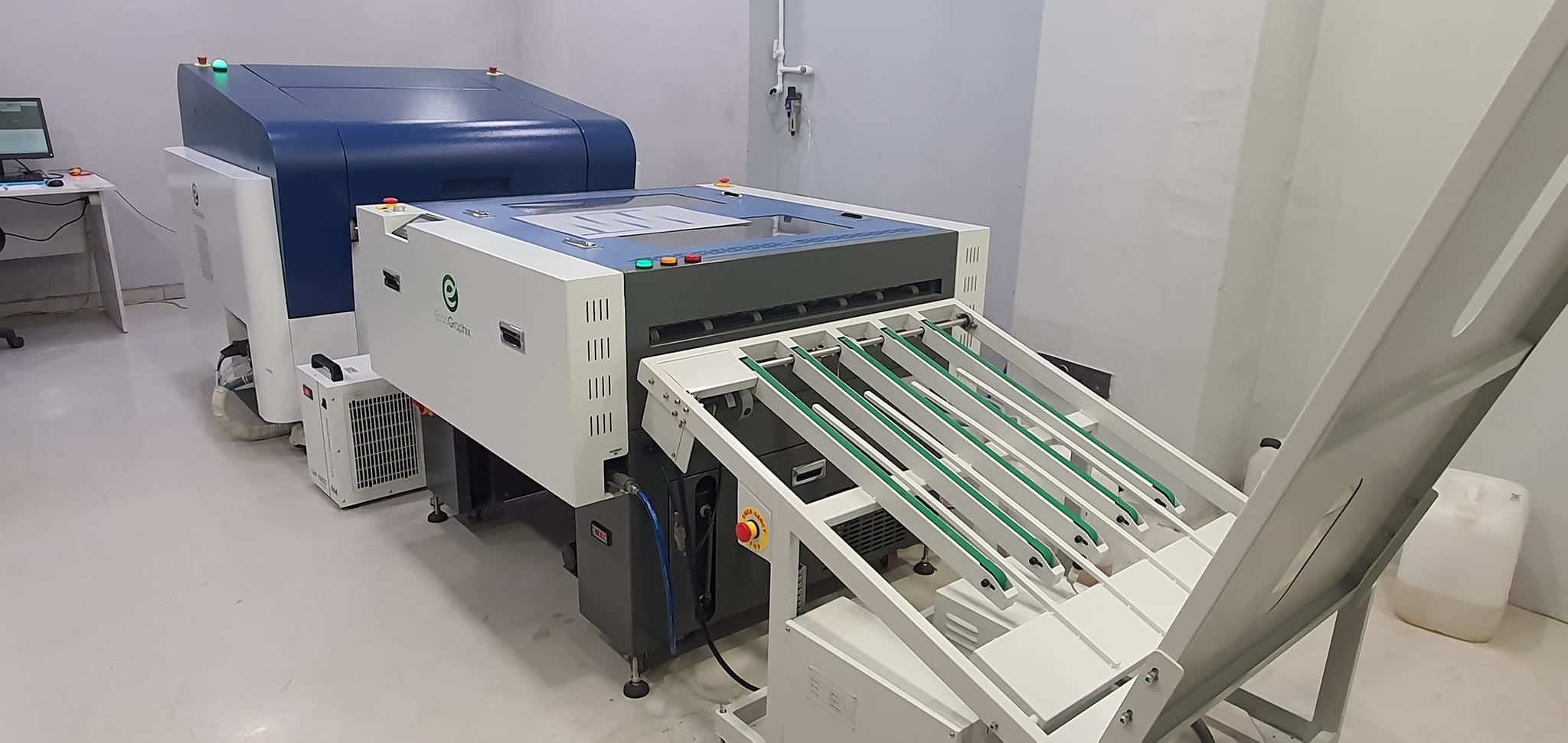

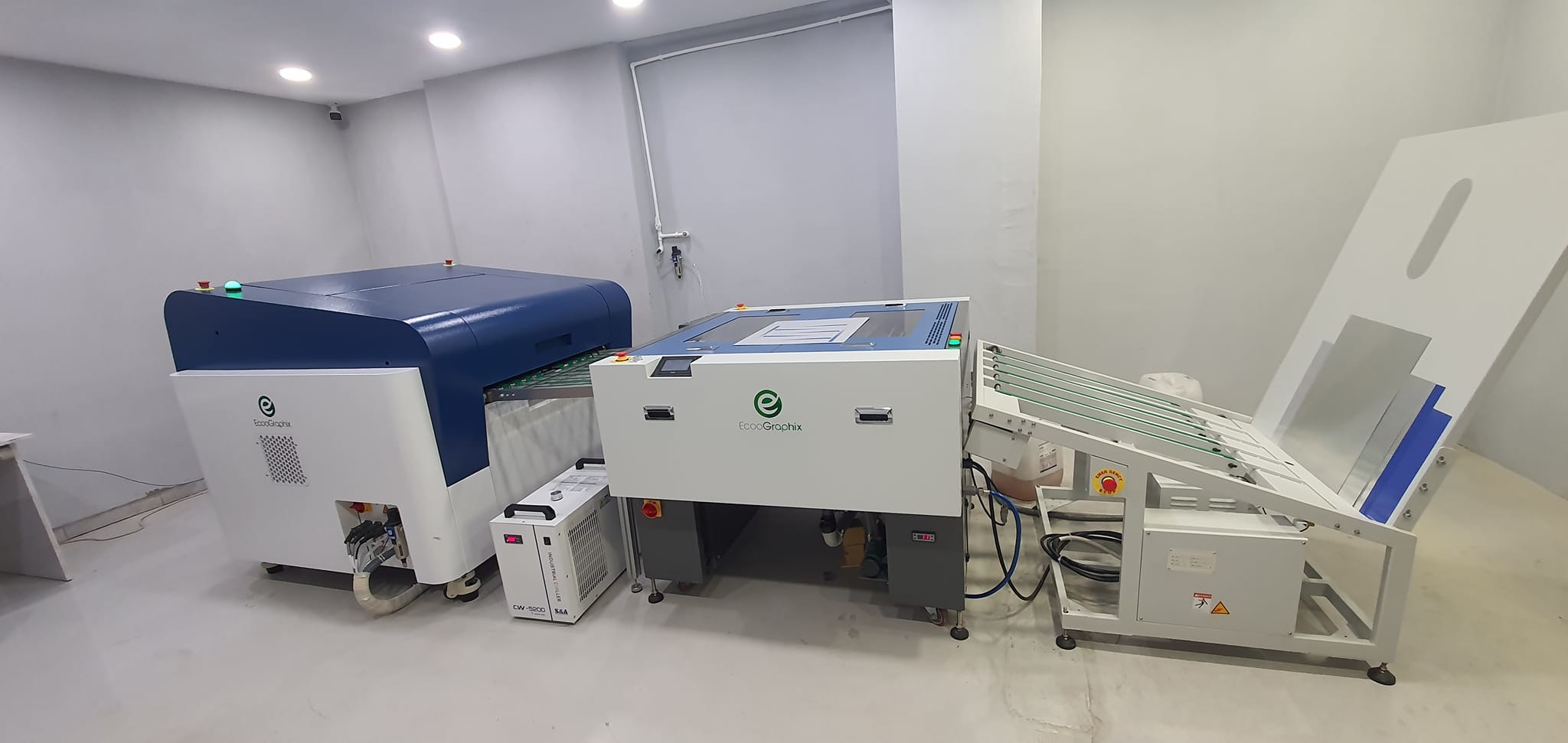

It includes thermal CTP machine processor and stacker. It is full automatic from plate feeding to plate stacking after imaging and processing.





Advantage




-Super fast -Supreme Imaging Quality
-Full Automation (online punch& autoloader built in) -Compacted design



With square screen imaging technology adopted, reach saturation increasing by 21% and fineness and precision ten times higher than original;

With linear motor high-precision positioning equipped, achieve longer service life and lower operation and maintenance cost for customer.





Overall Performance Improvement




1. Full-automatically continuous printing with Inline punch

2. Automatic plate feeding cassette 3. Motor direct drive Drum 4. Linear motor





Specification




Model: T-400 Q V/X



Exposing Method: External Drum



Imaging System: 825nm laser



Throughput: V-45, X-55plates/hour

800 x 660mm, 2400dpi, Plate sensitivity 120mj/cm²



Plate Sizes: Max.800mm x 660mm, Min.300mm x 300mm



Plate Thickness: 0.15mm, 0.30mm



Resolution: standard: 2400 dpi or 1200 dpi



Repeatability: 0.01mm



Interface: Optical Fiber(Fiberway)



Plate Loading: standard: Single cassette autoloader with manual plate insert function



Inline punching System: Optional: internal punching (maximum four sets of plate holes)



Machine Size(W x Lx H)mm: 1450x1950x1290 (additional 600mm length for conveyor to wash unit)



Power Supply: CTP(single phase:220V, Max power(Peak Value): 4KW)

Simplified Autoloader(single phase:220V; Max power(Peak Value): 900W))

Multi-cassette Autoloader(single phase:220V; Max power(Peak Value): 1100W))



Operation Environment:

Recommended:21-25℃, Allowable temperature: 15-30℃, Relative humidity:40-70%



Size and footprint (Note: A Conveyor with length of 600mm included, not showing in the below graph)



ECOO T-400Q
Model T-400QS
Imaging System External Drum 825nm laser
Output Speed 25pph
800 x 660mm / 2400dpi
Plate Size Max.800 x 660mm Min. 300mm x 300mm
Plate Thickness 0.15mm, 0.30mm
Resolution 2400dpi or1200dpi
Repeatability 0.01mm
Interface Optical Fiber
Inline puning Optional: internal punching (maximum four sets of plate holes)
Size (WxDxH)mm 1450x1950x1290mm
(additional 600mm length for converyor to wash unit)
Power Supply CTP(single phase: 220V, Max power: 4KW)
Simplifiled Autoloader(single phase: 220V, Max power: 900W)
Multi-cassette Autoloader(single phase: 220V, Max power: 1100W)
Enviroment: Recommended temperature: 21-25ºC; Relative humidity: 40-70%



55pph Automatic Plate Making Machine Thermal CTP Offset Printing Machine 0

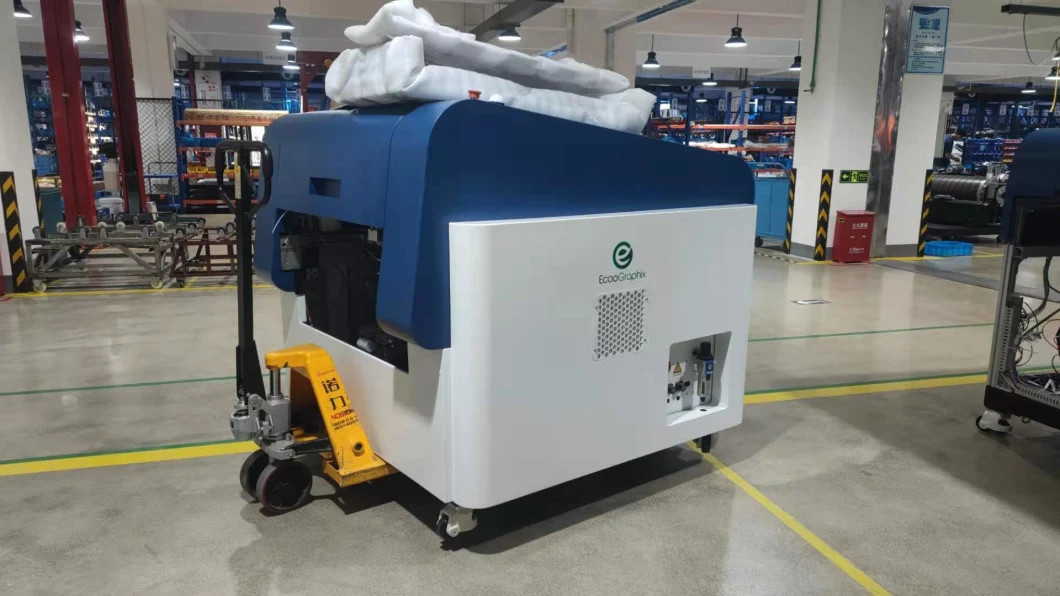

Producing and Packing




55pph Automatic Plate Making Machine Thermal CTP Offset Printing Machine 1



55pph Automatic Plate Making Machine Thermal CTP Offset Printing Machine 2



55pph Automatic Plate Making Machine Thermal CTP Offset Printing Machine 3



55pph Automatic Plate Making Machine Thermal CTP Offset Printing Machine 4



55pph Automatic Plate Making Machine Thermal CTP Offset Printing Machine 5





Installation Worldwide




55pph Automatic Plate Making Machine Thermal CTP Offset Printing Machine 6





55pph Automatic Plate Making Machine Thermal CTP Offset Printing Machine 7FAQ




1. What are your main products?

Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, Flexo CTP, Processor, Offset Plates, inks, Blankets, Postpress Packing equipments and so on. There are over 3000sets CTPs installed worldwide. Our partners in USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa and so on are very pleased with our technician support service and product performance.

We also have five offset plates production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers) and chemistry free CTP plate. You can get the prepress equipments and consumables all in one and no worry about the after-sales service from our company.



2. Where is your factory?

Our CTP machine factory is located in Hangzhou city, which is about 1.5 hour by train from Shanghai.

You are warmly welcomed to visit our factory!



3. What is your warranty for the CTPs?

Three years' Laser Head and main spare parts for the CTPs, One year for the Processor. If machine user uses our plate at the same time, we offer lifelong warranty.



4. What is the Lead Time?

Usually 20-30 days, and we will try our best to meet your demands.



5. Can you also supply the Workflow and RIP?

Yes, we can provide the Workflow Brain New and RIP Compose V9.



6. What about the Installation and after-sales technician support?

Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
