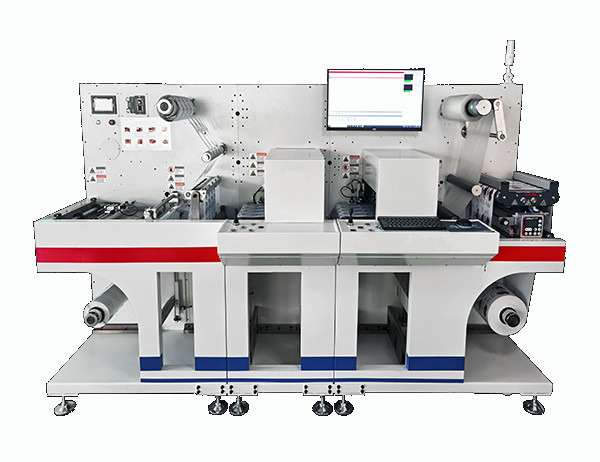

Max. 450mm Digital Label Self-adhesive Sticker Slitter

 Max. 450mm Digital Label Self-adhesive Sticker Slitter

Technical Data ----------------------------------------------------------------------------------------------- ¼

Model
ECOO-VD3350

Max. Media Roller
Diameter 450mm

Cutting  Media Width
40-350mm

Max. Label Width
330mm

Min. Label Length
10mm

Max. Label Length
600mm

Cutting Speed
Max. 9m per minute(Depend on label shape and size)

Cutting Blades
(Standard) 4 pcs

Slitting Blades
(Standard 4 pcs)Max. 15pcs

Cutting Tracking
CCD camera

Die-cutting Technology
With tungsten steel rotary blades

Cutting Precision
0.1mm(Duplicate)

Slitting Speed
Max. 100m per minute

Slitting Width
10-330mm

Slitting Precision
0.1mm

Machine Size(W*D*H)
2100*1195*1575CM

Machine Weight
1200kg

Power
110-127VAC 50-60HZ, 1000WATTS/ 220-240VAC 50-60HZ, 1000WATTS

Warranty
1 year(Besides high consumable parts)

Options
Cutting head/ Slitting unit/ Film back liner removal/ Sheet paper cutter

​

​

Digital Label Die Cutting Machine
Model	ECOO-VD3350
Max. Media Roller	Diameter 450mm
Cutting Media Width	40-350mm
Max. Label Width	330mm
Min. Label Length	10mm
Max. Label Length	600mm
Cutting Speed	Max. 9m per minute(Depend on label shape and size)
Cutting Blades	(Standard)4 pcs
Slitting Blades	(Standard 4 pcs)Max. 15pcs
Cutting Tracking	CCD camera
Die-cutting Technology	With tungsten steel rotary blades
Cutting Precision	0.1mm(Duplicate)
Slitting Speed	Max. 100m per minute
Slitting Width	10-330mm
Slitting Precision	0.1mm
Machine Size(W*D*H)	2100*1195*1575CM
Machine Weight	1200kg
Power	110-127VAC 50-60HZ, 1000WATTS/ 220-240VAC 50-60HZ, 1000WATTS
Warranty	1 year(Besides high consumable parts)
Options	Cutting head/ Slitting unit/ Film back liner removal/ Sheet paper cutter

​

Instruction -------------------------------------------------------------------------- ½

The VD3350 high-speed digital label machine, which incorporates more A intelligent elements, adopts a unit design and can install up to 3 working units. Unique intelligent digital die-cutting software that automatically recognizes and extracts cutting files, and automatically adjusts tool spacing. Use a four blade*3 unit to work on different labels simultaneously. With the latest intelligent software, automated die-cutting runs through the entire workflow, making equipment operation easier than ever, greatly improving work efficiency while reducing manual intervention.​

Certifications ------------------------------------------------------------------------------------------- 1

FAQ ------------------------------------------------------------------------------------------------------------- P.S.

 1. What are your main products ?

We EcooGraphix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.


 2. Where is your factory ?

Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.


 3. What is your warranty ?

Normally 1 year(Besides high consumable parts).

 4. What is the lead time ?

Usually 30 days, and we will try our best to meet your demands.


 5. Can you also supply the software ?

Yes, we offer copyrighted software.


 6. What about the installation and after-sales technician support ?

Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
