Name: 2 Lane Operation Window Patching Machine Film Lamination
Brand: Hangzhou Ecoographix Digital Technology Co., Ltd.
SKU: ECOO-TC1100 & ECOO-TC1000
Price: 250,000.35 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Classification: Window Patching Machine

The Producting Style: 1-Lane Operation, 2-Lane Operation

Speed Of The Machine: ≤ 200pcs/min, ≤ 400pcs/min

Outer Diameter: ≤ 500mm

Length A Of The Blank Paper(mm): 100-900, 100-900; 100-420, 100-420

Width B Of The Blank Paper(mm): 80-1100, 80-530; 100-750, 100-380

Inner Diameter: 70mm-80mm

Main Motor Power: 4kw

Highlight:

400pcs/Min Window Patching Machine

Film Lamination Window Patching Machine 4kw

OD 500mm Window Patching Machine

Basic Infomation

Place of Origin: China

Brand Name: EcooGraphix

Certification: ISO9000, CE

Model Number: ECOO-TC1100 & ECOO-TC1000

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 45 Days

Payment Terms: L/C, T/T

Supply Ability: 500 Sets/Year

Gallery

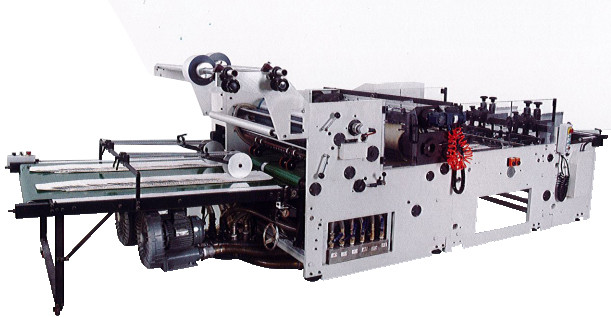

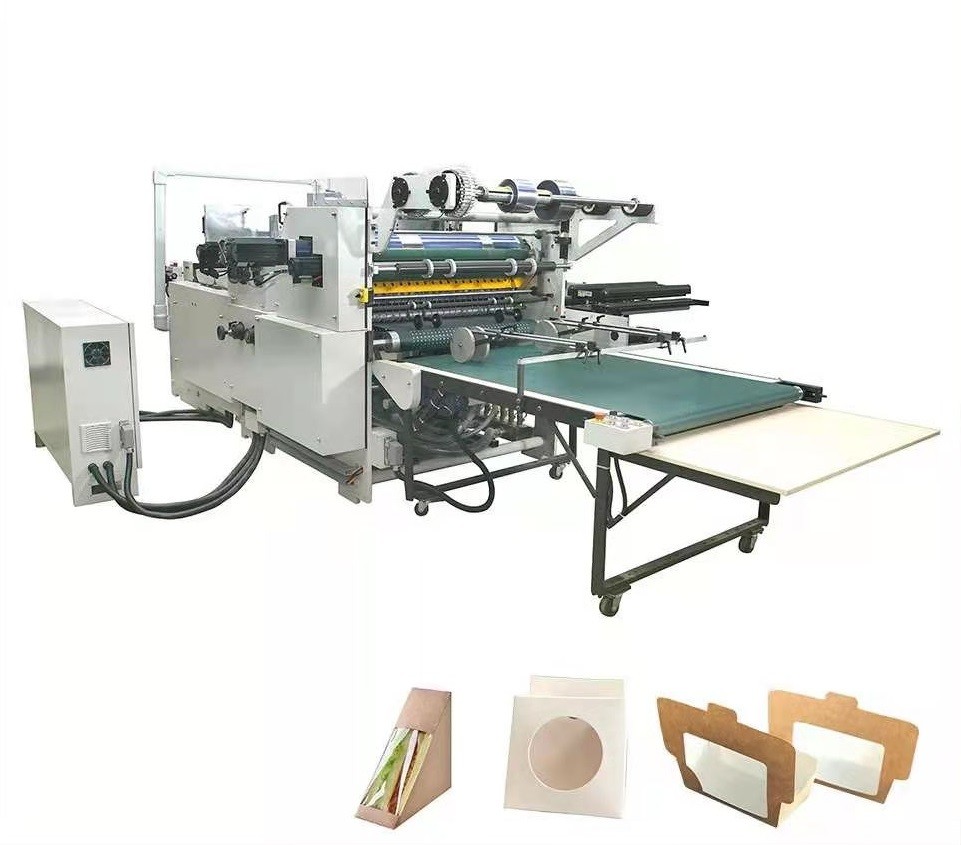

2 Lane Operation Window Patching Machine Film Lamination

Product Description

2 Lane Operation Window Film Lamination
Window Patching Machine

¼ ------------------------------------------------------------------------------------------------------ ∞

Specification

Window Patching Machine

Model
ECOO-TC1100;
ECOO-TC1000

The Producting Style
1-lane operation, 2-lane operation;
1-lane operation, 2-lane operation

Length A Of The Blank Paper
100mm-900mm, 100mm-900mm;
100mm-420mm, 100mm-420mm

Width B Of The Blank Paper
80mm-1100mm, 80mm-530mm;
100mm-750mm, 100mm-380mm

Length Window/Lining Material C
80mm-760mm, 80mm-760mm;
80mm-280mm, 80mm-280mm

Width Window/Lining Material C
30mm-940mm, 30mm-380mm;
30mm-550mm, 30mm-220mm

Speed Of The Machine
≤ 200pcs/min, ≤ 400pcs/min;
≤ 200pcs/min, ≤ 400pcs/min

Carton Weight

Carton
180g/m²-600g/m²

Corrugated
≤ 1.5mm

Film Thickness

PVC, PE, PS
0.05mm-0.3mm

PET
0.05mm-0.2mm

Outer Diameter
≤ 500mm

Inner Diameter
70mm-80mm

The Size Of The Machine
5600(L)x2000(W)x1500(H)mm;
4800(L)x1600(W)x1500(H)mm

Main Motor Power
4kw

Total Power
22kw

Window Patching Machine
Model	ECOO-TC1100		ECOO-TC1000
The Producting Style	1-lane operation	2-lane operation	1-lane operation		2-lane operation
Length A Of The Blank Paper	100mm-900mm	100mm-900mm	100mm-420mm		100mm-420mm
Width B Of The Blank Paper	80mm-1100mm	80mm-530mm	100mm-750mm		100mm-380mm
Length Window/ Lining Material C	80mm-760mm	80mm-760mm	80mm-280mm		80mm-280mm
Width Window/ Lining Material C	30mm-940mm	30mm-380mm	30mm-550mm		30mm-220mm
Speed Of The Machine	≤ 200pcs/min	≤ 400pcs/min	≤ 200pcs/min		≤ 400pcs/min
Carton weight
Carton	180g/m²-600g/m²
Corrugated	≤ 1.5mm
Film thickness
PVC, PE, PS	0.05mm-0.3mm
PET	0.05mm-0.2mm
Outer Diameter	≤ 500mm
Inner Diameter	70mm-80mm
The Size Of The Machine	5600(L)x2000(W)x1500(H)mm			4800(L)x1600(W)x1500(H)mm
Main Motor Power	4kw
Total Power	22kw

½ ------------------------------------------------------------------------------------------------------- ∞

Features

ECOO TC-1100, TC-1000 automatic window patching machines are special equipment for carton box,
color box window lamination; They are advanced models in domestic market. Perfect personalization design
philosophy ensures the machines have the feature of high efficiency, high-precision, high stability and easy operation.

These machines are available for both cardboard and corrugated paper. Adopting servo feeder, flexible version
module of glue print, stable and accurate diaphragm incision and cross cutting cropped to achieve tissue boxes,
gift boxes, toy boxes, shirt boxes, milk cartons and other window film lamination.

¾ ------------------------------------------------------------------------------------------------------ ∞

Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

1 -------------------------------------------------------------------------------------------------------- ∞

Certifications

P.S. ----------------------------------------------------------------------------------------------------- ∞

FAQ

Q1: What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q2: Where is your factory ?

A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!

Q3: What is your warranty for the CTPs ?

A: Three years' laser head and main spare parts for the CTPs, one year for the processor. If the customer use EcooGraphix CTP plate with the CTP machine, we will provide the Lifetime Warranty.

Q4: Can you also supply the Workflow and RIP ?

A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.

Q5: What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
