Resin Ink For Offset Printing Model: INK-D
Brief Description:
The ECOO-IN-D printing ink utilizes the latest technology from Europe and is composed of high-quality polymeric resin and innovative paste pigment. This versatile product is ideal for printing a wide range of materials including packaging, advertisements, labels, high-end brochures, and decorative items on various types of paper, including art paper, coated paper, offset paper, and cardboard. The ink is particularly well-suited for use in medium to high-speed printing applications. Choose ECOO-IN-D for stunning results with every print.
Technical Data:
| ITEM/TYPE |
TACK VALUE |
FLUIDITY (mm) |
PARTICLE SIZE (μm) |
GLOSS |
SETTING TIME (min) |
DRYING TIME (hr) |
SKINNING TIME (hr) |
|
D YELLOW |
8-9 |
39±1
|
12.5 | 85 | 4 | < 8-10 | >20 |
|
D MAGENTA |
8.5-9.5 |
40±1
|
12.5 | 75 | 4 | < 8-10 | >20 |
|
D CYAN |
8.5-9.5 |
39±1
|
12.5 | 75 | 4 | < 8-10 | >20 |
|
D BLACK |
9-10 |
38±1
|
12.5 | 80 | 4 | < 8-10 | >20 |
| Tack Value | The value is measured in 1 minute by an inkometer at 32℃ and 400rpm. | ||||||
| Set Time | Printing adapter, 157g art paper, the volume of ink-coating can be up to 0.125cc. | ||||||
| Condition of test | Room temperature 25℃, humidity 65%-75% | ||||||
| ITEM/TYPE |
Light Resistance |
Heat Resistance |
Acid Resistance |
Alkaline Resistance |
Alcohol Resistance |
Soap Resistance |
|
D YELLOW |
3-4 | 5 | 5 | 4 | 4 | 4 |
|
D MAGENTA |
3-4 | 5 | 5 | 5 | 4 | 5 |
|
D CYAN |
6-7 | 5 | 5 | 5 | 5 | 5 |
|
D BLACK |
6-7 | 5 | 5 | 5 | 5 | 5 |
| Light Fastness | 1-8 (weak-strong) | |||||
| Others | 1-5 (weak-strong) | |||||
Features:
Printing speed: 10000rph-13000rph
Environment friendly
Anti-skinning performance
Good water/ink balance
Rich in printing layer
Clear and complete in printing dots
Quick-drying performance, quick setting, quick turn
To ensure optimum results, it is important to store ink cans vertically and protect them from light. When using inks in higher temperatures, it is possible to encounter issues such as misting or ink/water problems due to low viscosity. Additionally, high sot gain can be a concern. By taking these precautions, you can achieve the best outcome for your project.
Tips before ink processing and after processing.
Don't judge ink color by its packaging alone. Inks in the container appear thicker and darker than when printed, which can lead to mistaking black for blue or red. Nitrogen may be added to the ink to prevent oxidative drying, resulting in bubbles. Rest assured that these bubbles will disappear during the inking process and won't affect printing quality.
During prolonged printing pauses, it is necessary to clean the rolls and apply antioxidants to the ink duct. Always remove any skin found in the opened container, no matter how small it may be. Avoid refilling the original ink with the ink mixed with printing aids. Let's maintain a positive approach to ensure smooth and efficient printing processes.

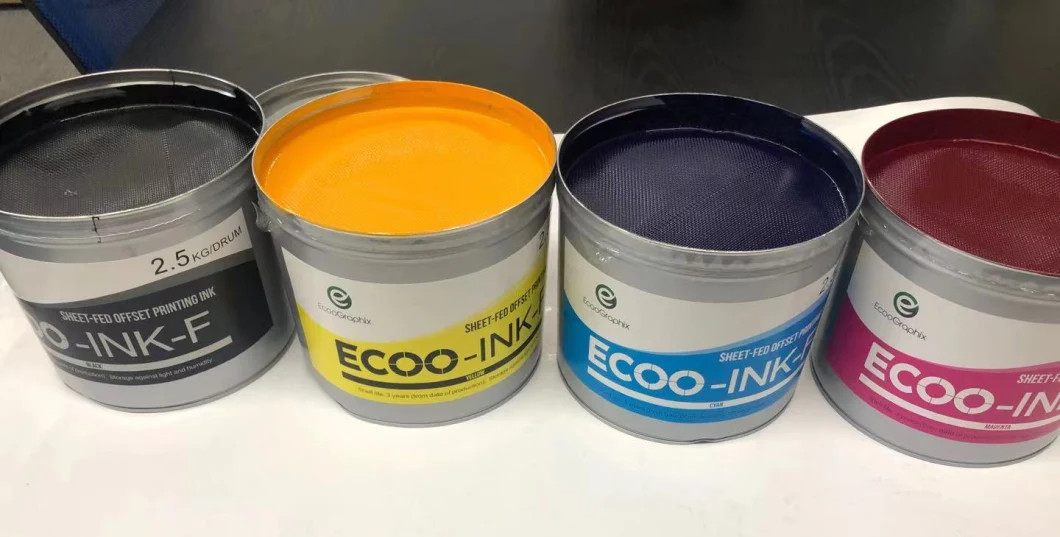

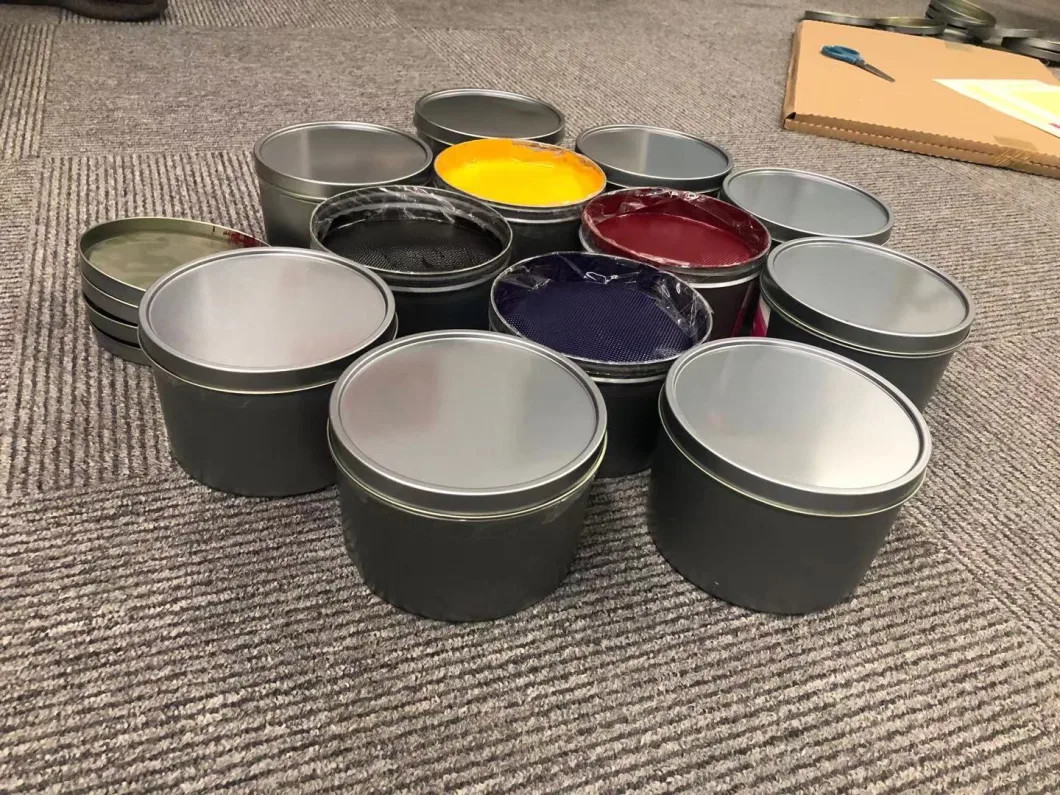

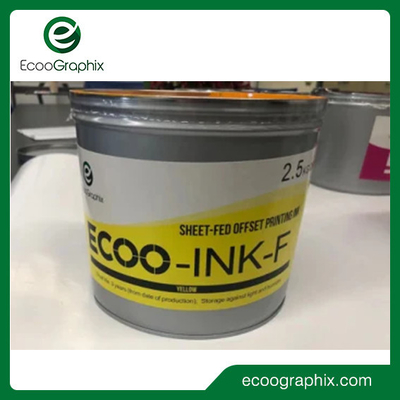

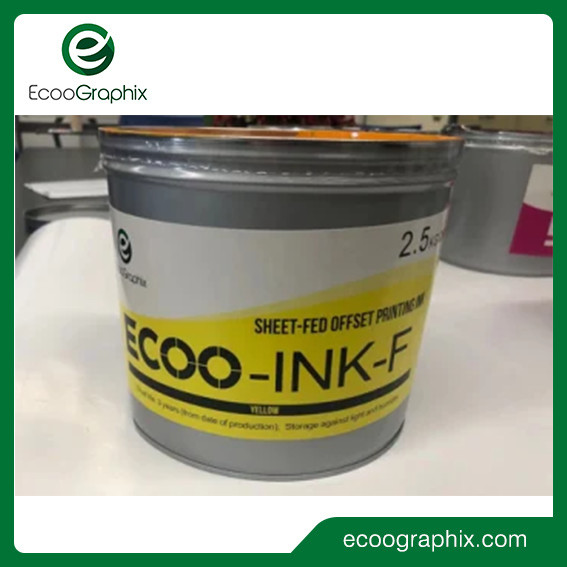

Package of our ink.
Our regular package consists of vacuum-sealed aluminum cans in either 1 kg or 2.5 kg sizes. The drums are thoughtfully designed to ensure secure and safe transport, with each carton containing either 6 or 12 drums protected by partition boards to avoid collision. The package provides a satisfactory level of protection and is well-designed to meet industry standards. With these packaging features, you can trust that your product will arrive in perfect condition every time.
