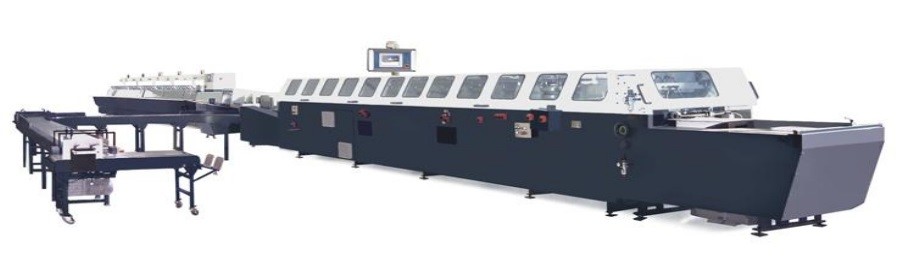

21 Clamps 8000 Cycles Per Hour Super Book Binding Machine
◤ ◤ Book Binding Machine Introduction ◢◢
Superbinder-800 defines the capability of the binding system and brings more stability and efficiency to gathering, binding and trimming. It enables you for long-term stable and efficient production.
◤ ◤ Specification ◢◢
Model
Superbinder 800
No. of Clamps
21
Max. Mechanical Speed
8000 cycles/h
Book Block Length (a)
140-460 mm
Book Block Width (b)
120-300 mm
Book Block Thickness (c)
3-50 mm
Cover Length (d)
140-470 mm
Cover Width (e)
250-640 mm
Power Required
78 kw
Machine Weight
6800 kg
Machine Dimensions (L*W*H)
12200*1900*1500mm
| Model | Superbinder 800 |
| No. of Clamps | 21 |
| Max. Mechanical Speed | 8000 cycles/h |
| Book Block Length (a) | 140-460 mm |
| Book Block Width (b) | 120-300 mm |
| Book Block Thickness (c) | 3-50 mm |
| Cover Length (d) | 140-470 mm |
| Cover Width (e) | 250-640 mm |
| Power Required | 78 kw |
| Machine Weight | 6800 kg |
| Machine Dimensions (L*W*H) | 12200*1900*1500mm |
◤ ◤ Features ◢◢
High net output at 8000 cycles/hour with thickness up to 50mm.
The make-ready time is greatly shortened by employing servo control system at critical parts.
Double spine gluing stations and double nipping stations for perfectly-shaped book spines.
Durable construction with using of high quality European imported spare parts as key parts.

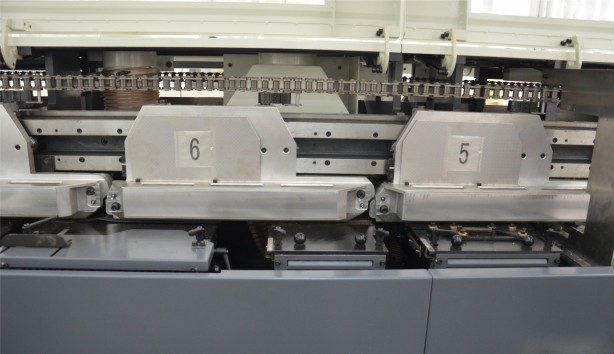

◤ ◤ Details ◢◢
◤ ◤ Producing And Packaging ◢◢
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
