High Output Automatic Gathering Machine Book Binding Machine
♡ ♥ ♡ Introduction ♡ ♥ ♡

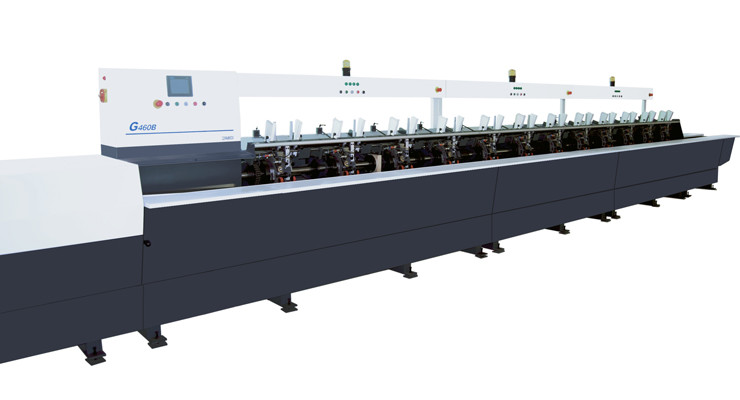

G460B automatic binding machine ensures high net output. The gripper system and the vertical transport of signatures are combined in this machine with modern electronics and latest design. It can be used either as a stand-alone machine or connected in-line with Challenger-5000 Perfect Binder.
♠ ♤ ♠ Specification ♠ ♤ ♠
Model
G460B/8, G460B/12, G460B/16, G460B/20, G460B/24
No. of Stations
8, 12, 16, 20, 24
Sheet Size (a)
196-460 mm
Sheet Size (b)
135-280 mm
In-line Speed
Max. 8000 cycles/h
Off-line Speed
Max. 4800 cycles/h
Power Required
7.5 kw, 9.7 kw, 11.9 kw, 14.1 kw, 16.3 kw
Machine Weight
3000 kg, 3500 kg, 4000 kg, 4500 kg, 5000 kg
Length of Machine
10736 mm, 13022 mm, 15308 mm, 17549 mm, 19886 mm
| Model | G460B/8 | G460B/12 | G460B/16 | G460B/20 | G460B/24 |
| No. of Stations | 8 | 12 | 16 | 20 | 24 |
| Sheet Size (a) | 196-460 mm | ||||
| Sheet Size (b) | 135-280 mm | ||||
| In-line Speed | Max. 8000 cycles/h | ||||
| Off-line Speed | Max. 4800 cycles/h | ||||
| Power Required | 7.5 kw | 9.7 kw | 11.9 kw | 14.1 kw | 16.3 kw |
| Machine Weight | 3000 kg | 3500 kg | 4000 kg | 4500 kg | 5000 kg |
| Length of Machine | 10736 mm | 13022 mm | 15308 mm | 17549 mm | 19886 mm |
♦ ♢ ♦ Outstanding Features ♦ ♢ ♦
☆ Reliable and non-marking separating of sections thanks to the vertical gathering design.
★ Touch screen allows easy operation and convenient fault analysis.
☆ Comprehensive inspection system for miss-sheet, double-sheet and paper jams.
★ Easy changeover between 1:1 and 1:2 production modes brings high flexibility.
☆ Criss-cross delivery unit and hand feeding station are offered as standard features.
★ Reject gate for wrong signatures ensures non-stop production.
☆ Excellent quality control is enabled by the optional signature recognition system.
♧ ♣ ♧ Details ♧ ♣ ♧
Touch Screen Control System
The touch screen control system allows easy operation and convenient fault analysis.
Vertical Gathering Stations
4 station as 1 unit, and maximally up to 32 stations. Auto signature inspection system
on each station to detect miss-sheet, multi-sheet, and paper jams.
1:2 Speed Mode Change Mechanism
High gathering speed with 1:2 speed change mechanism.
Reject Gate
The reject gate for faulty signature ensures a non-stop production.
Hand Feeding Station
Hand feeding station is provided for convenient feeding of additional signatures.
Criss-Cross Delivery Unit
The criss-cross delivery unit is provided for efficient collection of well-gathered book blocks.
