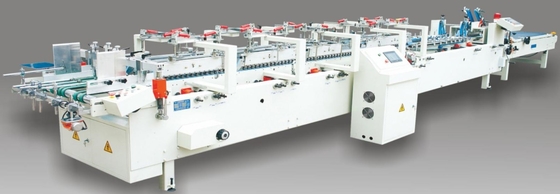

280m/min Paper Box Making Machine Automatic Feeding 4 Corner Folder Gluer

1 SET
MOQ
Negotiable
Price
280m/min Paper Box Making Machine Automatic Feeding 4 Corner Folder Gluer
Features Gallery Product Description Request A Quote
Features
Specifications
Classification: Paper Box Making Machine
Paperboard: 210~600g/sqm Paperboard E Corrugated Board
Paper Board Feeding: Automatic Feeding
Line Speed: 0- 280m/min Continuous Adjustment
Glue Type: Cold Glue
Power: AC 380V 12.5kw
Box Type: Single Side Gluing Or Both Side Gluing And Pre-folding, Crash Lock Bottom, 4 Corner Box
Way Of Folding: First, Second And Fourth Lines Fold 180°, Third Line Fold 135°
Dimension: 12.5x1.1x1.4m
High Light:

280m/Min Paper Box Making Machine

,

12.5kw 4 Corner Folder Gluer

,

Single Side 4 Corner Folder Gluer

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-780FC
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description



 Economic 4 Corner Folder Gluer With Crash Lock Bottom





---------------------------------------------------------------------------------------------------------------------------------

☆ ☆ ☆ ☆ •      Folder Gluer Introduction      ☆ ☆ ☆ ☆

1. This machine is economic 4 corner folder gluer.

2. General straight line, pre-fold, crash lock bottom 4 corner.

3. The speed is fast, maximum linear speed 280m/min.

4. PLC computer control + touch screen display.

5. Cold spray glue system with 2 spray glue gun.

6. Pneumatic rear pressure table, the conveyor has separate motor to control speed.
It has auto trombone control function(only when the box coming, the pressing unit works),
counting by pneumatic kicker.

7. Wireless remote control.




---------------------------------------------------------------------------------------------------------------------------------

☆ ☆ ☆ ☆ •     Technical Date      ☆ ☆ ☆ ☆



(Unit: mm)
Model Box Type A B C min D min
ECOO 780FC Straight-line box (I) 130-800 60-700 50 20
Pre-fold box (I) 170-800 60-700 50 20
Crash lock bottom box (II) 180-760 100-700 80 50
4 corner box (III) 150-700 180-800 20 100

280m/min Paper Box Making Machine Automatic Feeding 4 Corner Folder Gluer 0 280m/min Paper Box Making Machine Automatic Feeding 4 Corner Folder Gluer 1 280m/min Paper Box Making Machine Automatic Feeding 4 Corner Folder Gluer 2



Automatic Folder Gluer

Model
ECOO-780FC


Line speed
0-280m/min continuous adjustment

Paperboard
210~600g/m2 paperboard E corrugated board


Box forming
Single side gluing or both side gluing and pre-folding, crash lock bottom, 4 corner box

Way of folding
First, second and fourth lines fold 180°, third line fold 135°


Paper board feeding
Automatic feeding

Glue type
Cold glue


Weight
2500kg

Dimension
12.5x1.1x1.4m


Power
AC 380V 12.5KW
Automatic Folder Gluer
Model ECOO-780FC
Line speed 0-280m/min continuous adjustment
Paperboard 210~600g/m2 paperboard E corrugated board
Box forming

Single side gluing or both side gluing and pre-folding, crash lock bottom,

4 corner box

Way of folding First, second and fourth lines fold 180°, third line fold 135°
Paper board feeding Automatic feeding
Glue type Cold glue
Weight 2500kg
Dimension 12.5x1.1x1.4m
Power AC 380V 12.5KW



---------------------------------------------------------------------------------------------------------------------------------

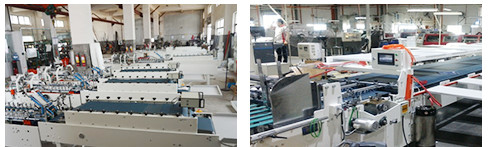

☆ ☆ ☆ ☆ •     Producing And Packaging      ☆ ☆ ☆ ☆

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

280m/min Paper Box Making Machine Automatic Feeding 4 Corner Folder Gluer 3

280m/min Paper Box Making Machine Automatic Feeding 4 Corner Folder Gluer 4


280m/min Paper Box Making Machine Automatic Feeding 4 Corner Folder Gluer 5



280m/min Paper Box Making Machine Automatic Feeding 4 Corner Folder Gluer 6



280m/min Paper Box Making Machine Automatic Feeding 4 Corner Folder Gluer 7



280m/min Paper Box Making Machine Automatic Feeding 4 Corner Folder Gluer 8



280m/min Paper Box Making Machine Automatic Feeding 4 Corner Folder Gluer 9





---------------------------------------------------------------------------------------------------------------------------------

☆ ☆ ☆ ☆ •     Certifications      ☆ ☆ ☆ ☆

280m/min Paper Box Making Machine Automatic Feeding 4 Corner Folder Gluer 10

280m/min Paper Box Making Machine Automatic Feeding 4 Corner Folder Gluer 11




---------------------------------------------------------------------------------------------------------------------------------

☆ ☆ ☆ ☆ •     FAQ      ☆ ☆ ☆ ☆



Q1: What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.


You can get the equipment and consumables all in one and no worry about the after-sales service from our company.






Q2: Where is your factory ?

A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!






Q3: What is your warranty for the CTPs ?

A: Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.


If the customer uses EcooGraphix CTP plate with the CTP machine, we will provide the Lifetime Warranty.






Q4: Can you also supply the Workflow and RIP ?

A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.






Q5: What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.



These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
