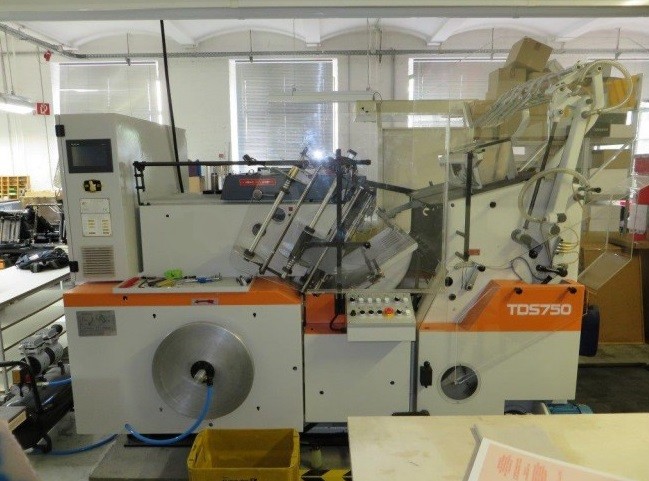

2500s/h Foil Stamping Die Cutting Machine 4 Zones Heating

1 Set
MOQ
Negotiable
Price
2500s/h Foil Stamping Die Cutting Machine 4 Zones Heating
Features Gallery Product Description Request A Quote
Features
Specifications
Classification: Foil Stamping Die Cutting Machine
Max. Machine Speed (S/H): 2500
The Thickness Of Stamping Plate (mm): 3.5
Max. Die Cutting Size (mm): 700X500
Max. Stamping Size (mm): 700X500
Height Of Cutting Rules (mm): 23.8
Foil Advancing Shafts: 2
Feeding Pile Height (mm): 800
Electric Heating System: 4 Zones
Highlight:

2500s/H Stamping Die Cutting Machine

,

3.5mm Plate Die Cutting Machine

,

800mm Feeding Die Cutting Machine

Basic Infomation
Place of Origin: China
Brand Name: EcooGraphix
Certification: ISO9000, CE
Model Number: ECOO-TDS 750L
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 500 Sets/Year
Product Description



 23.8mm Height of Cutting Rules Foil Stamping & Die-cutting Machine







~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

 Brief Introduction

Automatic hot foil stamping machine adopts many advanced pneumatic and servo drive processing technologies at home and abroad. After strict assembly quality control, the operation is simple, safe and reliable.

It can die-cut, stamp and emboss on different printing and packaging products, such as paper above 90gsm, cardboard, corrugated paper below 4mm, adhesive paper, laminated paper, plastic card, PVC and so on.

Excellent adaptability and convenient operation make the machine work stably and safely. Automatic hot foil stamping machine will provide you with comfortable operation and a faster return on investment.







~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

 Specifications



Model
ECOO-TDS 750L

Max. Sheet Size(mm)
750x560


Min. Sheet Size(mm)
280x220

Max. Die Cutting Size(mm)
700x500


Max. Stamping Size(mm)
700x500

Height Of Cutting Rules(mm)
23.8


Maximum Pressure(N)
110x104

Stock Range
Min. Sheet 90g/m²; Cardboard 157-2000g/m², E, B flute


Maximum Machine Speed(s/h)
2500

Maximum Stamping Speed(s/h)
2500


The Thickness Of Stamping Plate
3.5

Foil Advancing Shafts
2


Feeding Pile Height(mm)
800

Delivery Pile Height(mm)
160


Electric Heating System
4 zones

Min. Foil Width(mm)
15


Foil Reel Core(mm)
25(1") 76(3")

Rated Power(kw)
40


Air Supply
0.8-1.0 MPa, ≥ 0.6m3/min

Overail Dimension(mm)
2600 x 1720 x 1975


Weight Of Machine(kg)
4200

Model ECOO-TDS 750L
Max. Sheet Size(mm) 750x560
Min. Sheet Size(mm) 280x220
Max. Die Cutting Size(mm) 700x500
Max. Stamping Size(mm) 700x500
Height Of Cutting Rules(mm) 23.8
Max. Pressure(N) 110x104
Stock Range Min. Sheet 90g/m²; Cardboard 157-2000g/m², E, B flute
Max. Machine Speed(s/h) 2500
Max. Stamping Speed(s/h) 2500
The Thickness Of Stamping Plate(mm) 3.5
Foil Advancing Shafts 2
Feeding Pile Height(mm) 800
Delivery Pile Height(mm) 160
Electric Heating System 4 zones
Min. Foil Width(mm) 15
Foil Reel Core(mm) 25(1") 76(3")
Rated Power(kw) 40
Air Supply 0.8-1.0 MPa, 0.6m3/min
Overall Dimension(mm) 2600 x 1720 x 1975
Weight Of Machine(kg) 4200









~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

 Main Features



Delivers accurate, adjustable impression for foil stamping, embossing and die cutting

Two horizontal, cross pull foil feeds are fully programmable to provide maximum versatility and excellent foil economy.

Air blast system helps separate foil from stock on critical jobs

Micrometer adjustment on side guide and front guide

Adjustable dwell on impression

Honeycomb base is convenient for loading

Missed sheet detector

4 heating zones with digital control

24 hours preheating device

Control system with touch screen HMI, PLC and servo system.









~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

 Application



The TDS750 is especially suitable for customers with short working hours but high production demands because of its faster conversion system and smarter design. In so many years of sales, the automatic hot stamping machine TDS750 is still one of our best-selling products with its ingenious design. Many customers with lower budgets are very interested in this machine.









~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

 Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.



2500s/h Foil Stamping Die Cutting Machine 4 Zones Heating 0



2500s/h Foil Stamping Die Cutting Machine 4 Zones Heating 1



2500s/h Foil Stamping Die Cutting Machine 4 Zones Heating 2



2500s/h Foil Stamping Die Cutting Machine 4 Zones Heating 3



2500s/h Foil Stamping Die Cutting Machine 4 Zones Heating 4



2500s/h Foil Stamping Die Cutting Machine 4 Zones Heating 5



2500s/h Foil Stamping Die Cutting Machine 4 Zones Heating 6



2500s/h Foil Stamping Die Cutting Machine 4 Zones Heating 7









~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

 Certificates



2500s/h Foil Stamping Die Cutting Machine 4 Zones Heating 8



2500s/h Foil Stamping Die Cutting Machine 4 Zones Heating 9









~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

 FAQ



 Q1: What are your main products ?


A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.






 Q2: Where is your factory ?


A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!





 Q3: What is your warranty for the CTPs ?


A: Three years' laser head and main spare parts for the CTPs, one year for the processor. If the customer use EcooGraphix CTP plate with the CTP machine, we will provide the Lifetime Warranty.





 Q4: Can you also supply the Workflow and RIP ?



A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.





 Q5: What about the installation and after-sales technician support ?


A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.



These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
