Digital Label Printing And Cutting Intergrated Machine
An entry level speed uv ink jet label printing machine all in one including CMYK , white, varnishing, hit foil stamping, die cutting, laminting and slitting machine. It is a very innovative, low-investment, full-featured digital label printer.
❀ Specification ❀
Digital Label Printing Machine
Model
ECOO Label IQ-330
Max. Roll Diameter
350mm
Max. Media Width
330mm
Print Head
EPSON i3200-U1x4
Ink Type
UV ink
Ink Color
CMYK+W+V
Ink Bottle Capacity
1L
Print Speed
4pass: 56m/h; 6pass: 40m/h; 8pass: 28m/h
File Format
JPG/ PNG/ PDF
Cutting Length
10-350mm
Cutting Width
10-320mm
Repeat Die-cutting Accuracy
± 0.1mm
Number Of Die-cutting Heads
2
Number Of Slitting Knives
Standard 3 (optinal according to requirements)
Power Consumption
4kw
Power Supply
AC220-240V, 50-60hz
Weight
2000kgs
Printer Size
2500mm*1800mm*1700mm
Laminating Specification
Wide 330mm
Gold Foil Standard
Hot foil stamping
Printing Resolution
720*1200; 720*1800; 720*2400
Max. Printing Weight
330*320mm
Min. Printing Weight
330*100mm
Max. Printing Length
10000mm
Min. Printing Length
0.5mm
Thickness Of Printing Materials
Less than 300g
| Digital Label Printing Machine |
| Model |
ECOO Label IQ-330 |
| Max. Roll Diameter |
350mm |
| Max. Media Width |
330mm |
| Print Head |
EPSON i3200-U1x4 |
| Ink Type |
UV ink |
| Ink Color |
CMYK+W+V |
| Ink Bottle Capacity |
1L |
| Print Speed |
4pass: 56m/h; 6pass: 40m/h; 8pass: 28m/h |
| File Format |
JPG/ PNG/ PDF |
| Cutting Length |
10-350mm |
| Cutting Width |
10-320mm |
| Repeat Die-cutting Accuracy |
± 0.1mm |
| Number Of Die-cutting Heads |
2
|
| Number Of Slitting Knives |
Standard 3 (optinal according to requirements) |
| Power Consumption |
4kw |
| Power Supply |
AC220-240V, 50-60hz |
| Weight |
2000kgs |
| Printer Size |
2500mm*1800mm*1700mm |
| Laminating Specification |
Wide 330mm |
| Gold Foil Standard |
Hot foil stamping |
| Printing Resolution |
720*1200; 720*1800; 720*2400 |
| Max. Printing Weight |
330*320mm |
| Min. Printing Weight |
330*100mm |
| Max. Printing Length |
10000mm |
| Min. Printing Length |
0.5mm |
| Thickness Of Printing Materials |
Less than 300g |
❀ Characteristics ❀
♥ Integrated Versatility:
One Machine, lnfinite Possibilities. ECOO Label IQ-330 combines printing, laminating, cutting, and slitting in one device, simplifying and enhancing your production process.
♠ Excellent Printing Performance:
Whether it's white, varnish, or colored UV inks, the ECOO Label IQ-330 provides excellent printing effects on various media, making your labels stand out on the shelf.
♦ High Precision Cutting:
With ball screws and independent servo motors, it achieves +/-0.1mm cutting accuracy for flawless labels.
♣ Wide Range Of Applications:
From food packaging to electronic product identification, from cosmetic labels to industrial data encoding, the ECOO Label IQ-330 can easily handle it all.
❀ Introduction ❀
ECOO Label IQ-330 printing and cutting intergrated machine is an all-in-one UV scan type printer with in-line cutting machine. It offers high-precision printing via scanning, with high color fidelity and robust industrial grade design. Ecoo Label IQ-330 can print CMYK, white inks and varnish on paper, adhesive materials, and flexible packaging plastic films. It also integrates downstream processes like stamping, die-cutting, laminating, and slitting. This makes it a cost effective one stand solution for printing cards, small-batch production, and custom labels.
❀ Details ❀
 |
Equipped with 4 EPSON I3200-U1 print-heads. It enables high-speed printing of four colors plus white and gloss varnish, enhancing label texture and visual appeal. It handles both small and large orders with ease.
|
|
Buffer:
The buffer stores label design data in real time and auto compensates for speed differences between printing and cutting, preventing film stretching, deformation, or wrinkle formation.
|
|
|
Cutting Unit:
The cutting unit uses servo motors controlled pressure, eliminating manual adjustment. Reducing downtime and boosting production efficiency.
|
|
Automatically Control:
Self-developed interface enables color, speed, and data base integration, making the entire process easy to learn and operate.
|
|

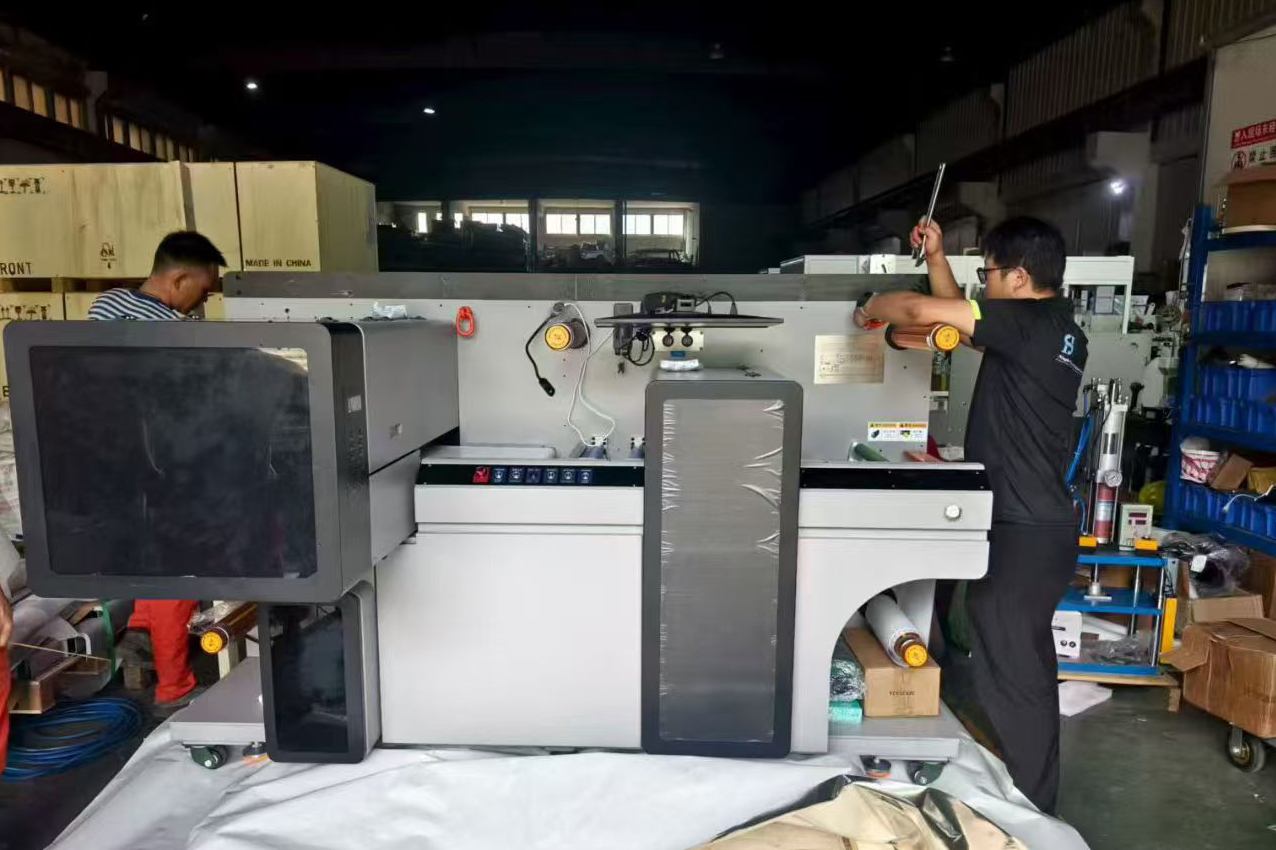

❀ Producing And Packaging ❀
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.
❀ FAQ ❀
|
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.
You can get the equipment and consumables all in one and no worry about the after-sales service from our company.
|
|
|
Q2: Where is your factory ?
A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!
|
|
|
Q3: How long is the lead time ?
A: The lead time is normally 30 days. We can accelerate for emergency cases.
|
|
|
Q4: Is there any certification for your machine ?
A: Yes, all our machines have been certified by SGS and CE.
|
|
|
Q5: How long is the warranty period ?
A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.
|
|
|
Q6: What is your normal payment term ?
A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.
|
|
|
Q7: What about the installation and after-sales technician support ?
A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
|
