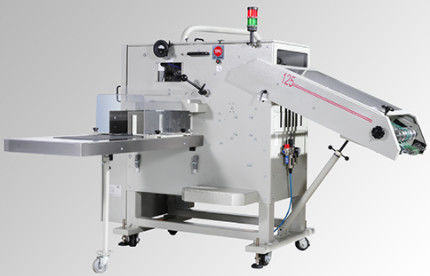

35mm Thickness Book Compensating Stacker 15000pcs/H
Description & Application
The 125 Compensating Stacker is an ideal solution for connecting after the high-speed saddle stitching system, which can reliably places the saddle stitched products into piles. It is featured with simple and reliable design, with max. mechanical speed up to 15,000 cycles per hour. The 125 Compensating Stacker is quick to set up, and can offer a wide range of book output directions (left, right, or cross), which makes it suitable for various requirements with minimal space. In order to assist you better understand this newly released Ecoo 125S production line, please watch the demo video for reference by clicking https://youtu.be/rLqqvgcztlY
Technical data
| Compensating Stacker Machine | ||
| Model | Ecoo-125S | |
| Stacker dimension | “A” Dimension |
Min. 102mm Max. 320mm |
| “B” Dimension |
Min. 152mm Max. 470mm |
|
| Book thickness | 1-32mm | |
| Max. Stacking height | 235mm | |
| Max. Mechanical speed | 15000 Cycles per hour | |
| In-Feed height | 660-1080mm | |
| Output height | 876mm | |
Some pictures of machine in factory
