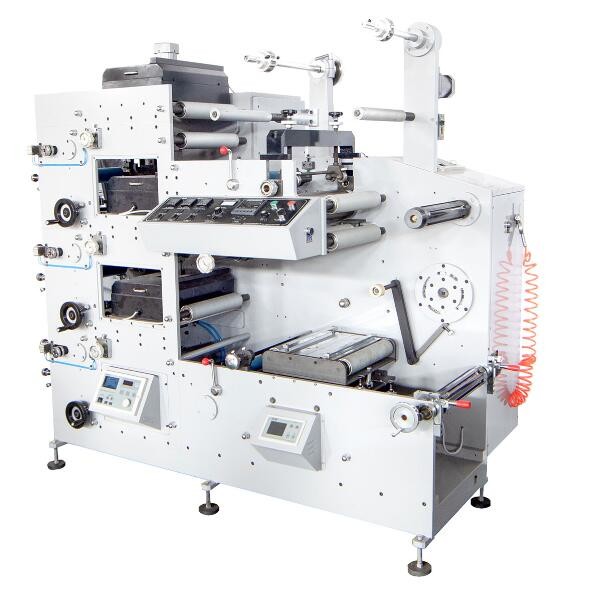

Single Color Flexo Sticky Label Adhesive Aluminum Foil Printing Press Machine
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic powder brake/clutch.
3. Each printing unit adopts 360°plate adjustment.
4. Each printing unit equips with hot air dryer.
5. This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.
6. The ink rollers will be separated from the printing rollers, and keep running when the machine stops.
7. Main motor use inverter to adjust stepless speed.
8. The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing adhesive label.
9. Material Substrate: Ahesive label, Paper(50-300gsm), Aluminum Foil,Film(40Micron,should be no shrinkable).
| MAIN TECHNICAL PARAMETERS: | ||
| MODEL | ZBS-320 | ZBS-450 |
| Max. width of paper | 320mm | 480mm |
| Max .printing width | 310mm | 450mm |
| Printing speed | 60m/min | |
| Printing color | 1-5 colours | |
| Max. Unwinding/Rewinding diameter | 600mm | |
| Printing length | 177.8-355.6mm (Z56-112, 65-145, 75-170) | |
| Precision of register | ±0.1mm | |
| Material Substrate |
Ahesive label, Paper(50-300gsm), Aluminum Foil, Film(40Micron,should be no shrinkable). |
|
| Dimensions and weight(5C) | 2mX1.1m X3.04m / About 3000KG | |
| Power Supply | 380V,3Phase,50HZ | |
MAIN CONFIGURATION:
| Description | Brand | Quantity | Origin |
| Printing roller | 3sets | China | |
| Anilox roller | Auclean/Laser | 1set | China |
| Unwind tension controller | Mitsubishi | 1set | Japan |
| Rewind tension controller | ZXTEC | 1set | China |
| Main motor | Wannan | 1set | china |
| Transducer | Mitsubishi | 2sets | Japan |
| Magnetic power brake/cluth | Ningxia | 3sets | China |
| Electromagnetic valve | Airtac | 2 set | Taiwan |
| Inverter | Schneider | 1set | Frence |
| AC Contactor | Schneider | 2pcs | France |
| Time relay | C-LIN | 1pc | China |
| Solid relay | Omron | 6pcs | Japan |
| Micro relay | Weidmiiller | 2pcs | Germany |
| Temperature Controller | Yuyao | 6pcs | China |
| Air switches | Siemens | 8pcs | Germany |
| Low pressure wiring | Schneider | All | France |
| All the bearing | NSK/CHINA | JAPAN/CHINA |
