Flexible Book Binding Machine 1600c/H Inline Connection

1 set
Flexible Book Binding Machine 1600c/H Inline Connection
Features Gallery Product Description Request A Quote
Speed: 1600c/h
Book Length: 140-400mm
Book Width: 120-270mm
Book Thickness: 3-50mm
Cover Length: 140-450mm
Cover Width: 240-600mm
High Light:

Flexible Book Binding Machine


Book Binding Machine 1600c/H


C Book Binding Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: Ecoographix
Certification: ISO9000, ISO20001, CE
Model Number: Digtal robot 2000A
Payment & Shipping Terms
Delivery Time: 35 DAYS-60 DAYS
Payment Terms: L/C, T/T
Supply Ability: 300 SET PER YEAR
Product Description

Machine Model: Digital Robot 2000A Perfect Binder

Digital Robot 2000A is our latest innovation of 'off-line' book binding solution for print-on-demand printing. It features on fully automatic adjustments through touch screen, short changeover time for varied binding formats, exchangeable EVA gluing tank and PUR gluing tank (option), which makes Digital Robot 2000A an ideal post-press solution for short run and print-on-demand digital printing.

Digital Robot 2000A is available for inline connection with digital three-knife trimmer and digital stacker in order to achieve a fully automatic perfect binding line. Through which, even very short runs can be produced quickly and in an economical way.

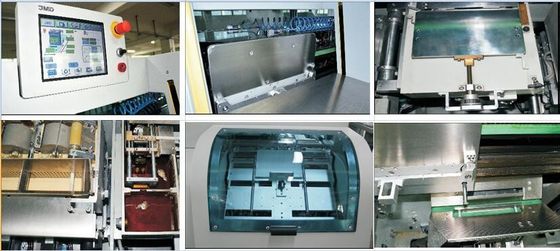

Flexible Book Binding Machine 1600c/H Inline Connection 0

Features and strength

  1. Quick Setup and High Automation: All setups can be done automatically just by inputting data into the touch screen or via scanning the barcode information of the book block and the cover.
  2. Fast Automatic Changeover: Automatic job changeover can be accurately completed in as short as 10s for changing book thickness and book formats at the fastest speed.
  3. Large Binding Compatibility: Digital Robot 2000A offers strong binding for different kinds of book blocks, such as loose-sheet book block, cold-glued book blocks, sewn book blocks, etc.
  4. Optional PUR Gluing Station: Changeover between EVA and PUR gluing application systems can be easily finished in just a few minutes.
  5. Soft Book Lay-down System: The special designed soft book lay-down system can maximally protect the just bound book spine from any slight deformation.

Standard configuration and details:
Standard Configurations
Touch screen control system
Book block feeding station with safety light barrier
Automatic adjusted book clamp
Automatic adjusted milling station
Automatic adjusted moveable spine gluing station
Automatic adjusted side gluing station
Automatic adjusted cover feeding station
(quadruple cover scoring)
Automatic adjusted nipping station
Automatic soft book lay-down system
Delivery unit
Paper dust extractor

Flexible Book Binding Machine 1600c/H Inline Connection 1
Technical data

Technical Data
Machine Model Digital Robot 2000A Binder
No. of Clamps 4
Max. Mechanical Speed 1600c/h
Book Block Length (a) 140-400mm
Book Block Width (b) 120-270mm
Book Block Thickness (c) 3-50mm
Cover Length (d) 140-450mm
Cover Width (e) 280-590mm

Format data
Flexible Book Binding Machine 1600c/H Inline Connection 2
Flexible Book Binding Machine 1600c/H Inline Connection 3
Flexible Book Binding Machine 1600c/H Inline Connection 4

1. Our payment term?
Normally, 30% deposit, 70% before shipping, or LC at sight.

2. Our lead time?
Usually 30-60 days, depend on machine design and setting.

3. Our service policy?
Our engineers are all can go to help the installation and provide the necessary training. The buyer should take the round air tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.

4. Our other products?
We also offer other postpress machines for package and label printing companies, like UV coating machine, laminating machine, window patching machine, carton inkjet printing machine and digital label printing machine, thermal paper slitting machine.
